Manufacturing reinforced thermoplastic pipe for demanding oil and gas applications
JMG Machinery’s 4-10 inch RTP tape production line is a complete manufacturing system designed for the production of Reinforced Thermoplastic Pipe (RTP), widely used as high-pressure, non-metallic pipelines in the oil and gas industry.
Our RTP tape winding line supports pipe diameters from 4 inches to 10 inches (114mm–273mm) and achieves working pressures up to 32MPa (320bar), making it ideal for onshore oil fields, natural gas gathering, and high-pressure fluid transmission applications.
Parameter | Specification |
|---|---|
Pipe Diameter | 4 – 10 inch (114mm – 273mm) |
Max Working Pressure | Up to 32 MPa (320 bar) |
Reinforcement Materials | Fiberglass tape, Aramid tape, Polyester tape, Steel cord |
Line Speed | Customizable upon request |
Control System | PLC with automatic constant tension control |
Typical Applications | Oil & gas pipelines, high pressure water, special fluid transport |
Certification | CE certified |
The line features advanced tape wrapping technology with high-strength reinforcement materials including fiberglass, aramid, and steel cord, delivering superior pressure resistance and pipeline integrity.
Support various reinforcement tapes:
Fiberglass Reinforced Thermoplastic Tape (GFRTP)
Aramid (Kevlar) Tape for high strength weight ratio
Polyester Tape for corrosion resistance
Steel Cord for maximum pressure rating
The reinforced thermoplastic pipe produced achieves working pressure up to 32MPa, fully meeting the stringent requirements of oil and gas field applications.
Our RTP line produces flexible pipes that can be supplied in coils, enabling long-distance seamless installation with minimal joints – a significant advantage over traditional rigid steel pipes.

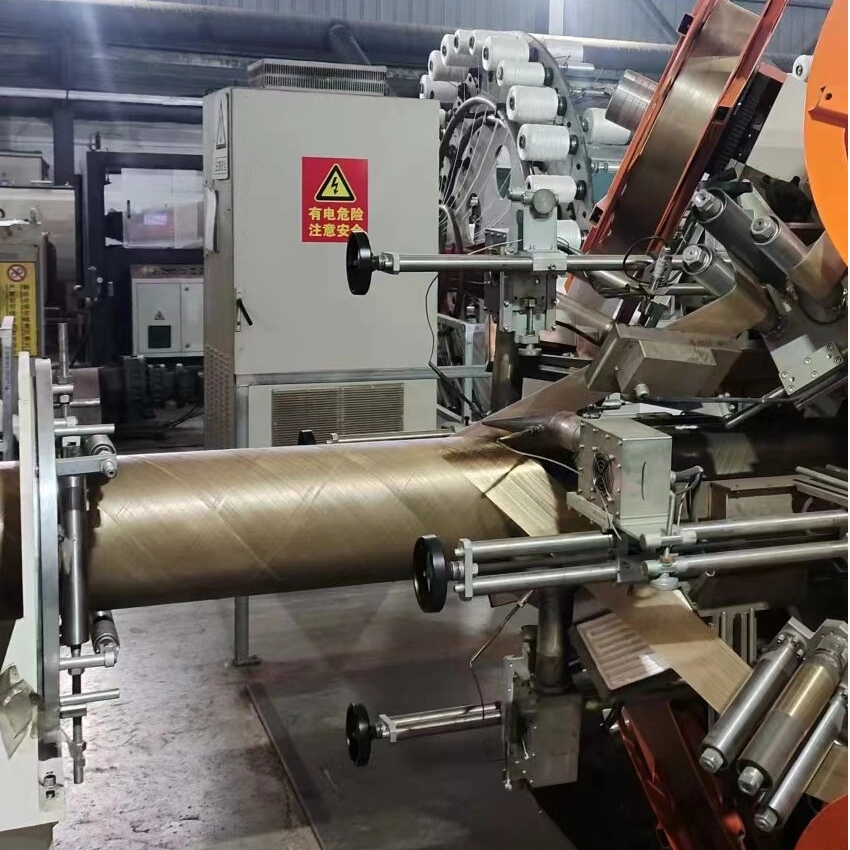

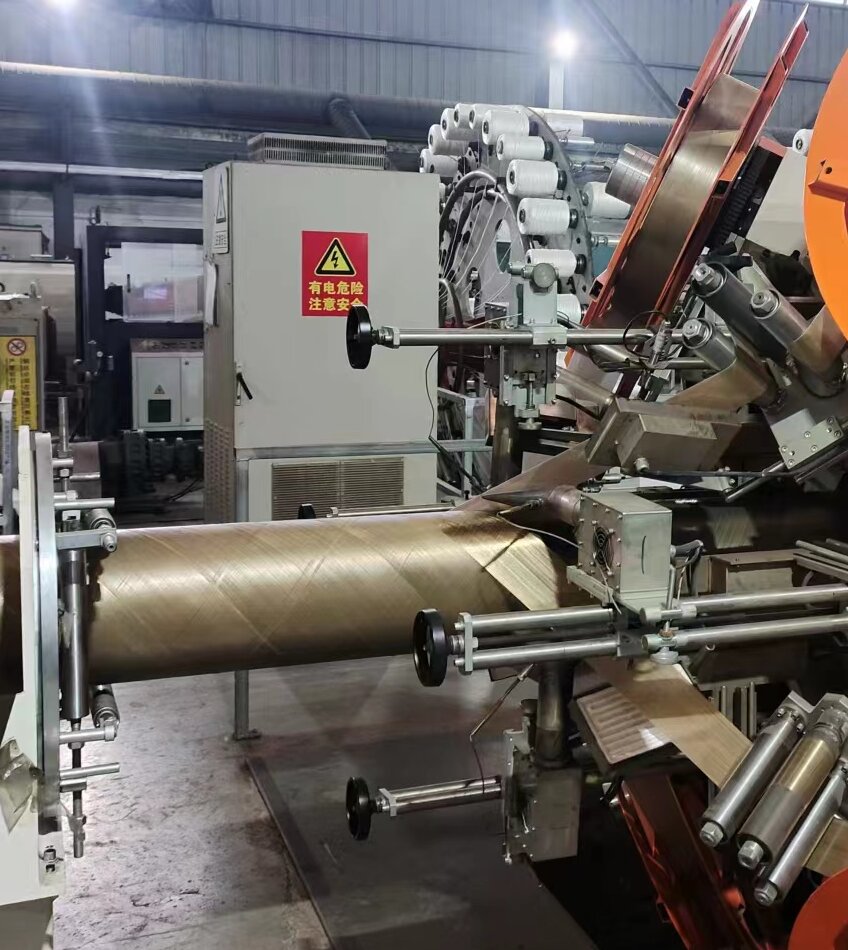

The production line adopts constant tension automatic control system for tape winding. The human-machine interface allows precise winding angle and tension adjustments across multiple tape layers.

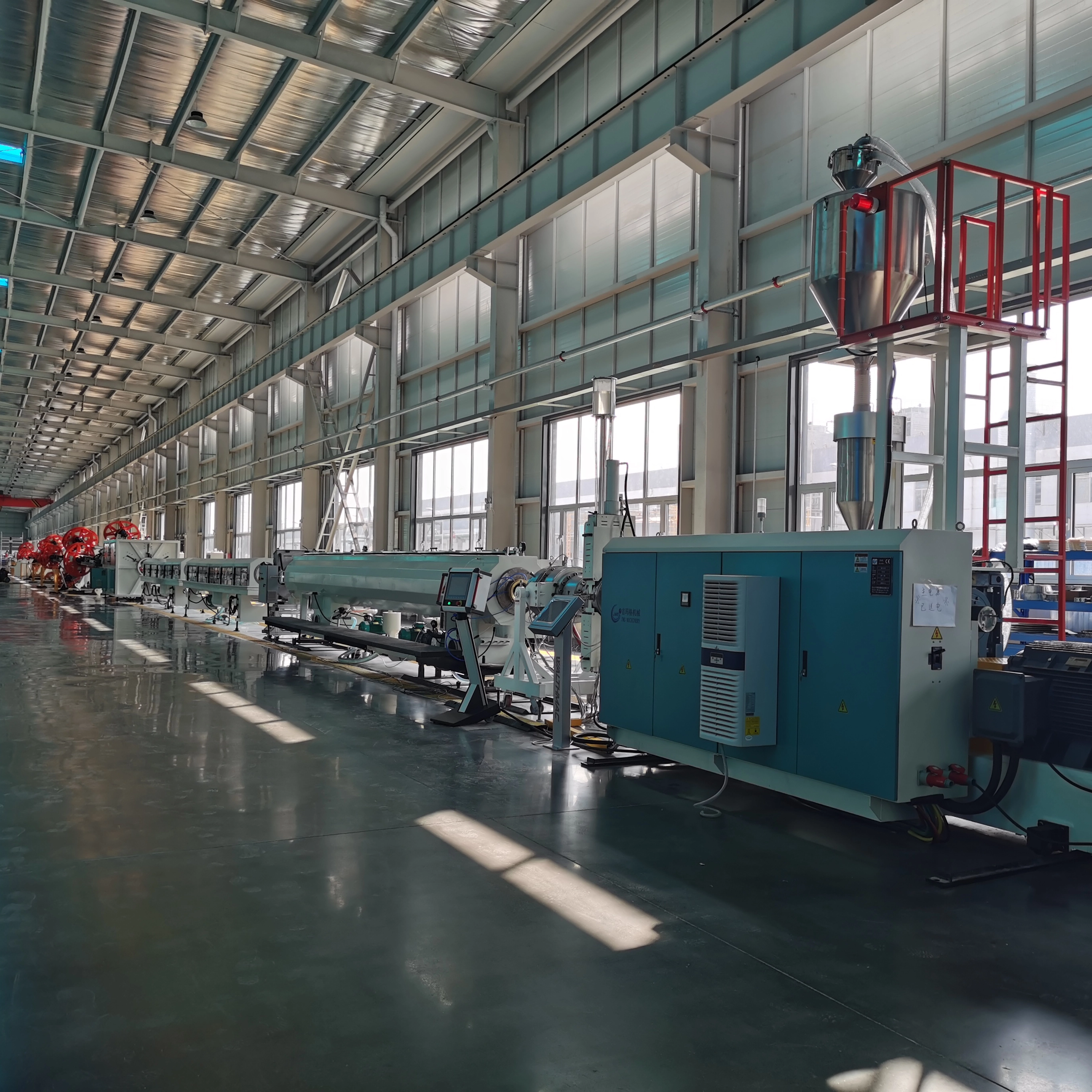

The line consists of inner pipe extrusion unit, multiple tape winding units, outer sheath extrusion unit, cooling system, and take-up winder. Configuration can be tailored to customer specifications and target pressure ratings.
Proved by customer references: constant tension winding ensures uniform reinforcement distribution. A single RTP line can be equipped with up to 16 tape winding heads for multi-layer reinforcement.
Component | Specification |
|---|---|

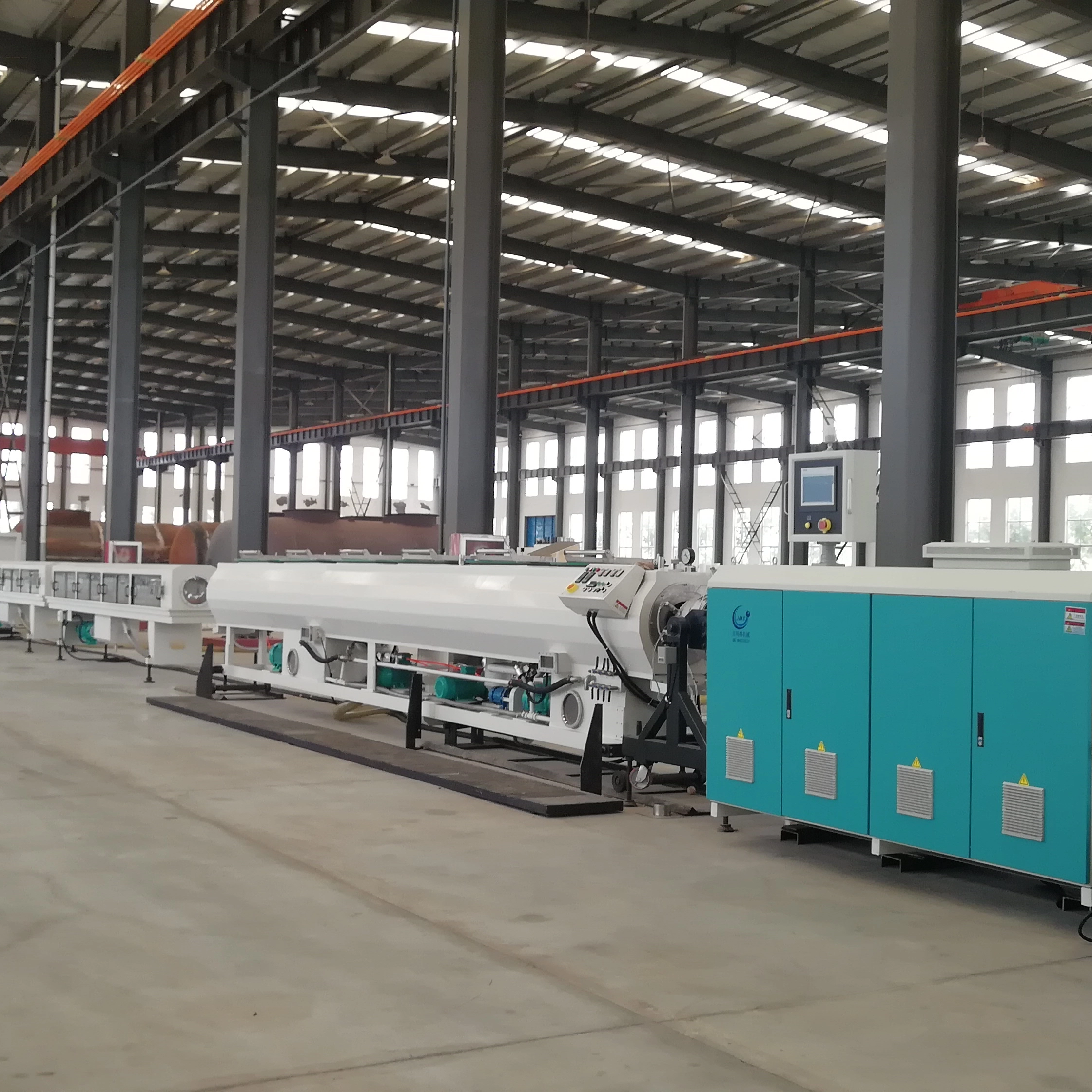

Inner Pipe Extruder | Single screw extruder, custom screw design for HDPE/PP/PA |
Tape Winding Unit | Multiple units optional (2–16 heads), constant tension control |
Outer Sheath Extruder | Single screw extruder, HDPE/PP material |
Cooling System | Spray cooling tank with vacuum sizing |
Haul-off Unit | Caterpillar belt type, servo motor control |
Winder | Automatic coil winder, spoolable pipe output |

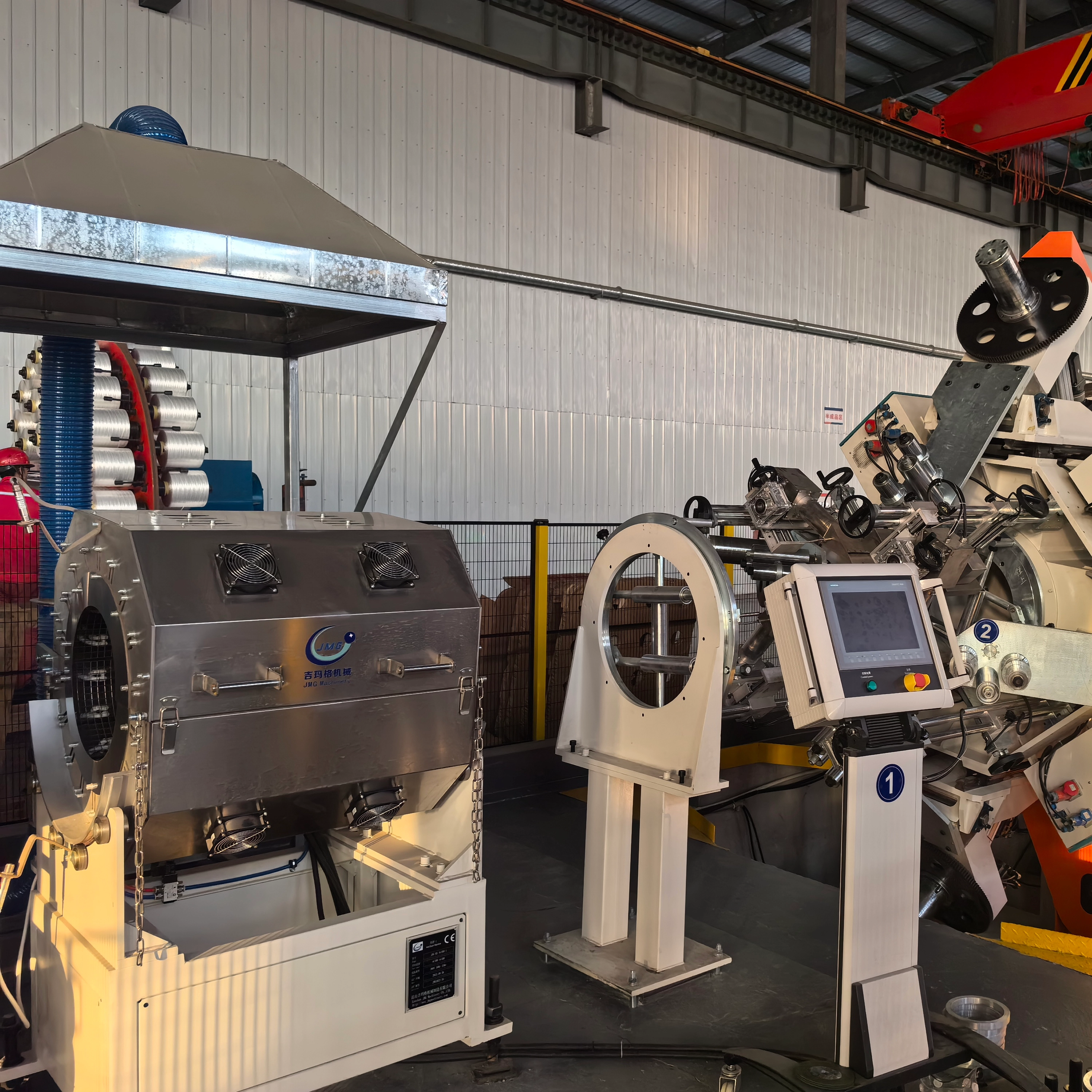

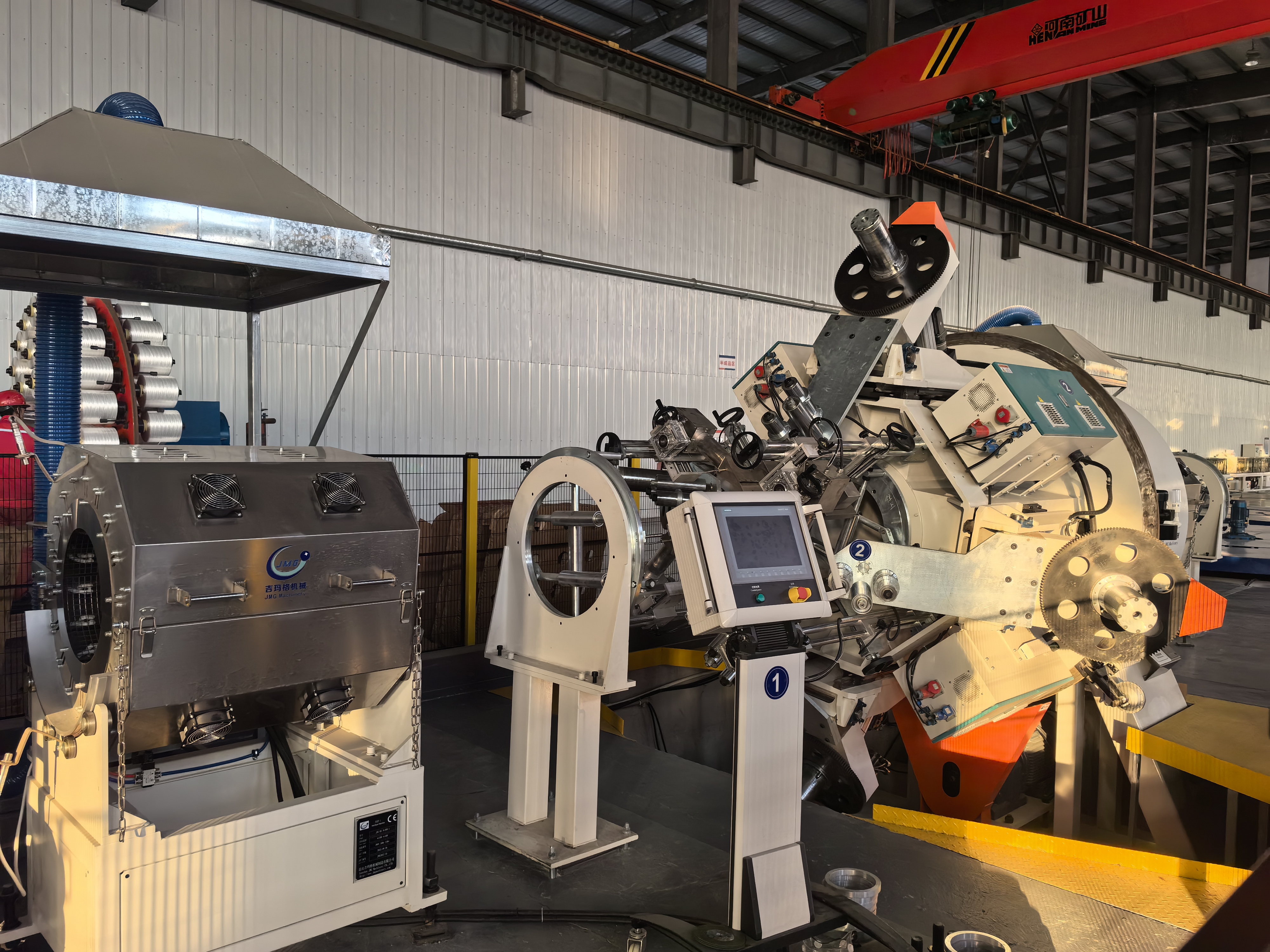

Control System | PLC full automation, touch screen HMI, remote monitoring optional |
Specifications are subject to customization according to specific customer requirements.
JMG’s RTP tape production line is engineered for the following applications:
Application | Description |
|---|---|
Oil & Gas Transmission | High pressure non-metallic pipelines for crude oil and natural gas |
Oilfield Water Injection | Corrosion-resistant solution for water injection wells |
Natural Gas Gathering | Flexible, spoolable pipelines for gas field surface networks |
High Pressure Water Transport | Long-distance water transmission for industrial use |
Special Fluid Conveyance | Chemical and petrochemical fluid handling |
RTP is a non-metallic, lightweight, corrosion-resistant alternative to traditional steel pipes, weighing only 20% of metal pipes and 50% of conventional plastic pipes.
The global Reinforced Thermoplastic Pipe (RTP) market is experiencing strong growth:
Global RTP/TCP pipe market valued at US$5.33 billion in 2025
Projected to reach US$7.68 billion by 2032, growing at 4.7% CAGR
Thermoplastic pipe market expected to grow from US4.31billion(2025)toUS6.66 billion (2034) at 4.84% CAGR
Growth driven by expanding oil & gas infrastructure and increasing demand for corrosion-resistant, flexible pipeline solutions
JMG Machinery has successfully exported RTP production equipment to key oil & gas markets including Saudi Arabia, Iran, India, and Indonesia – demonstrating our technology meets international standards and regional certification requirements.
Manufacturing Excellence – Specialized in tape/fiber/shortcut winding reinforced composite pipe production equipment
Export Experience – Proven track record in major oil & gas markets (Middle East, Southeast Asia, South Asia)
Full Customization – Flexible configuration tailored to your specific pressure rating and pipe diameter requirements
Technical Support – Installation guidance, operator training, and after-sales service
Competitive Pricing – Factory direct pricing without intermediary markup
Get a customized quotation for your 4-10 inch RTP tape production line
JMG Machinery offers factory direct pricing, CE certified quality, and global shipping support.
