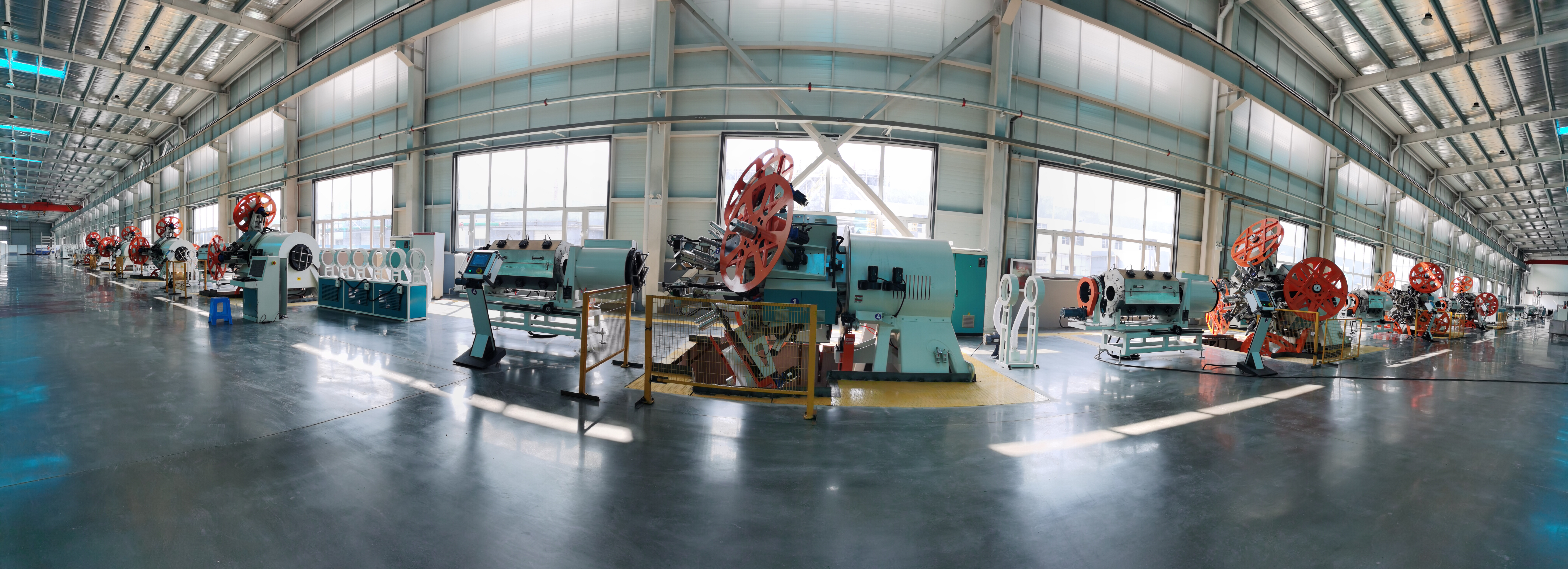

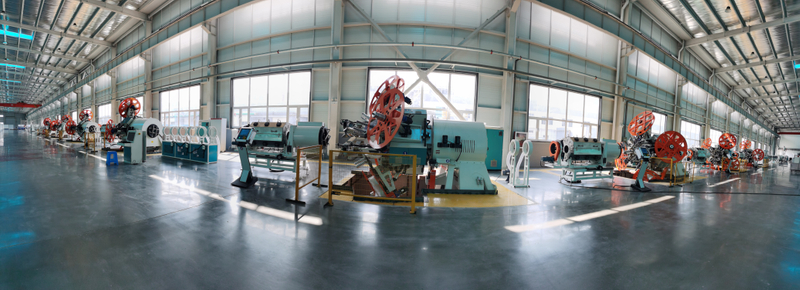

Jiangsu JMG Machinery Co., Ltd. provides a high-performance 4-10 inch RTP (Reinforced Thermoplastic Pipe) tape winding production line – a complete manufacturing solution for producing high pressure flexible composite pipes used in oil & gas fields, geothermal wells, central heating networks, and hot spring water transportation.

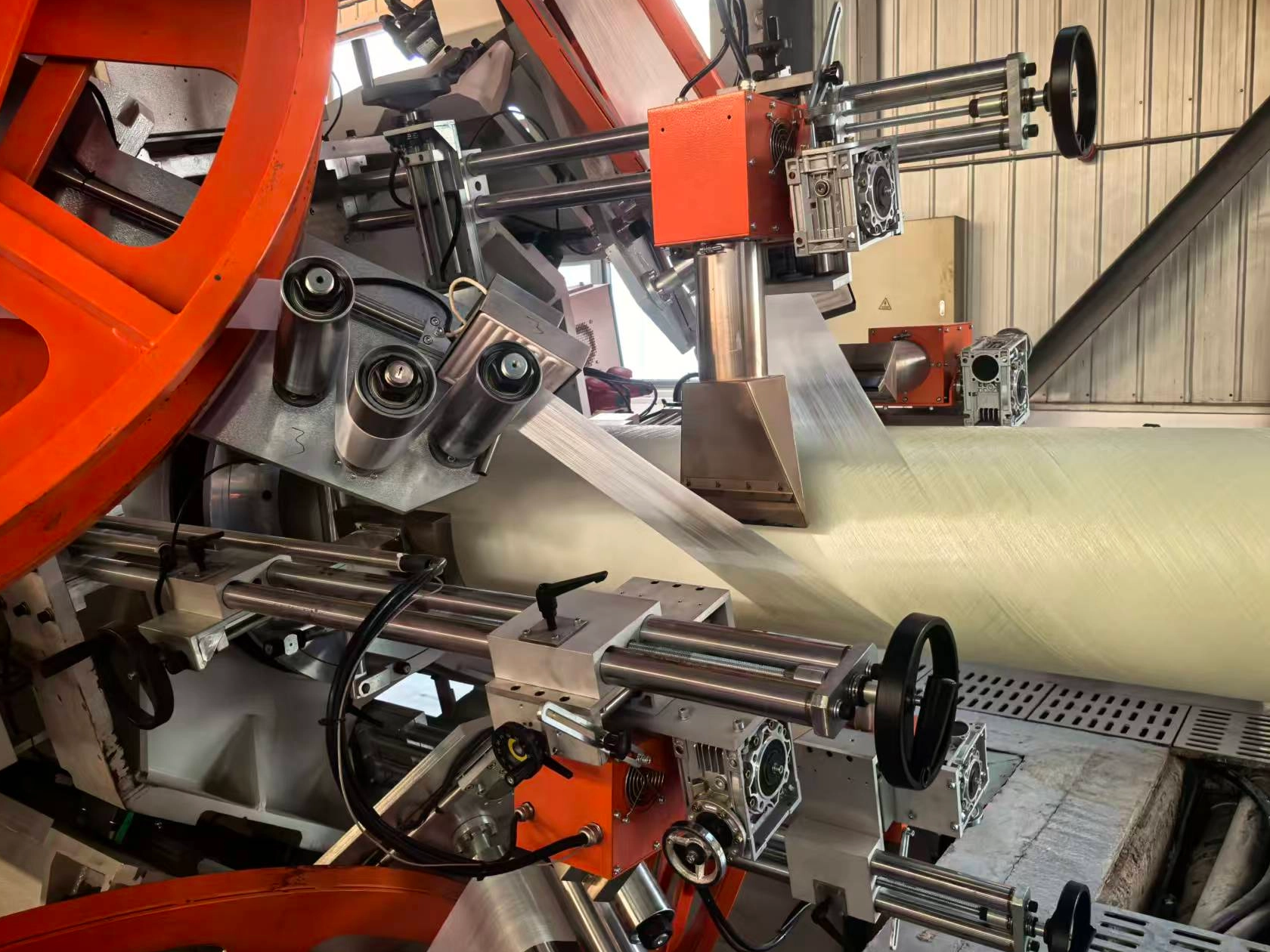

This fully automated line continuously winds reinforcement materials (glass fiber tape, aramid belt, polyester strip, or steel strip) onto a thermoplastic inner pipe, creating a strong, corrosion-resistant, and high pressure resistant RTP pipe.
| Model | JMGDZ250 |
| Pipe Diameter Range (ID) | 100 – 250 mm (4 – 10 inches) |
| Production Speed | 2 – 3 m/min |
| Reinforcement Types | Glass fiber tape, aramid belt, polyester strip, steel strip |
| Control System | Fully automated |
| Production Capacity (DN150mm, 4MPa) | Up to 370 km/year |
| Production Capacity (DN200mm, 4MPa) | Up to 300 km/year |
| Machine Weight | 2 – 3 tons |
| Warranty | 1 year |
| Delivery Time | 45 – 60 days |
| Origin | Suzhou, China |
| Installed Base | 31+ lines operating in China |
Wide material compatibility – Supports glass fiber, aramid, polyester, and steel strip winding for different pressure ratings.
High efficiency – Production speed of 2–3 m/min, with annual output up to 370 km for smaller diameters.

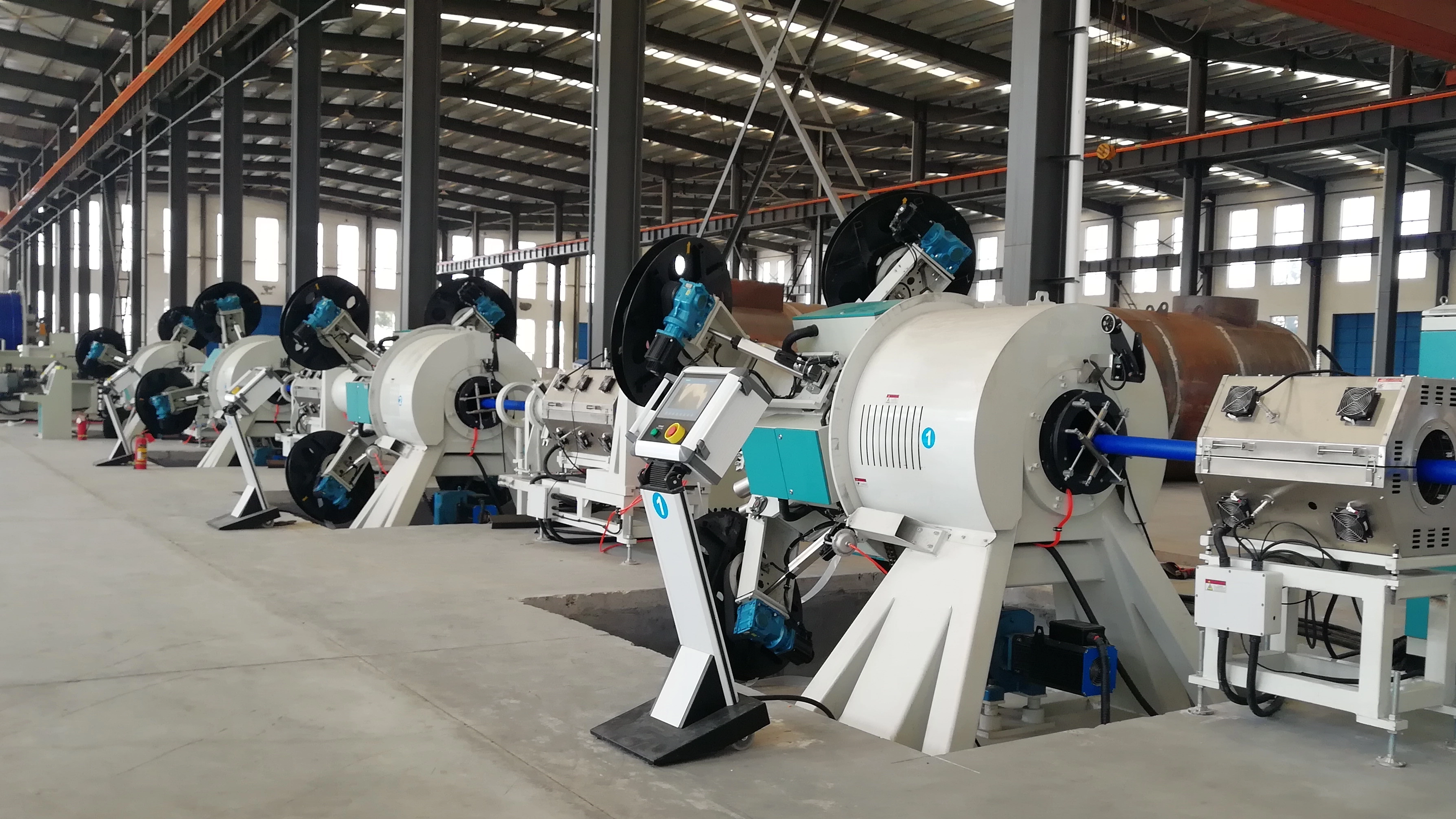

Fully automated control – Reduces manual intervention and improves product consistency.

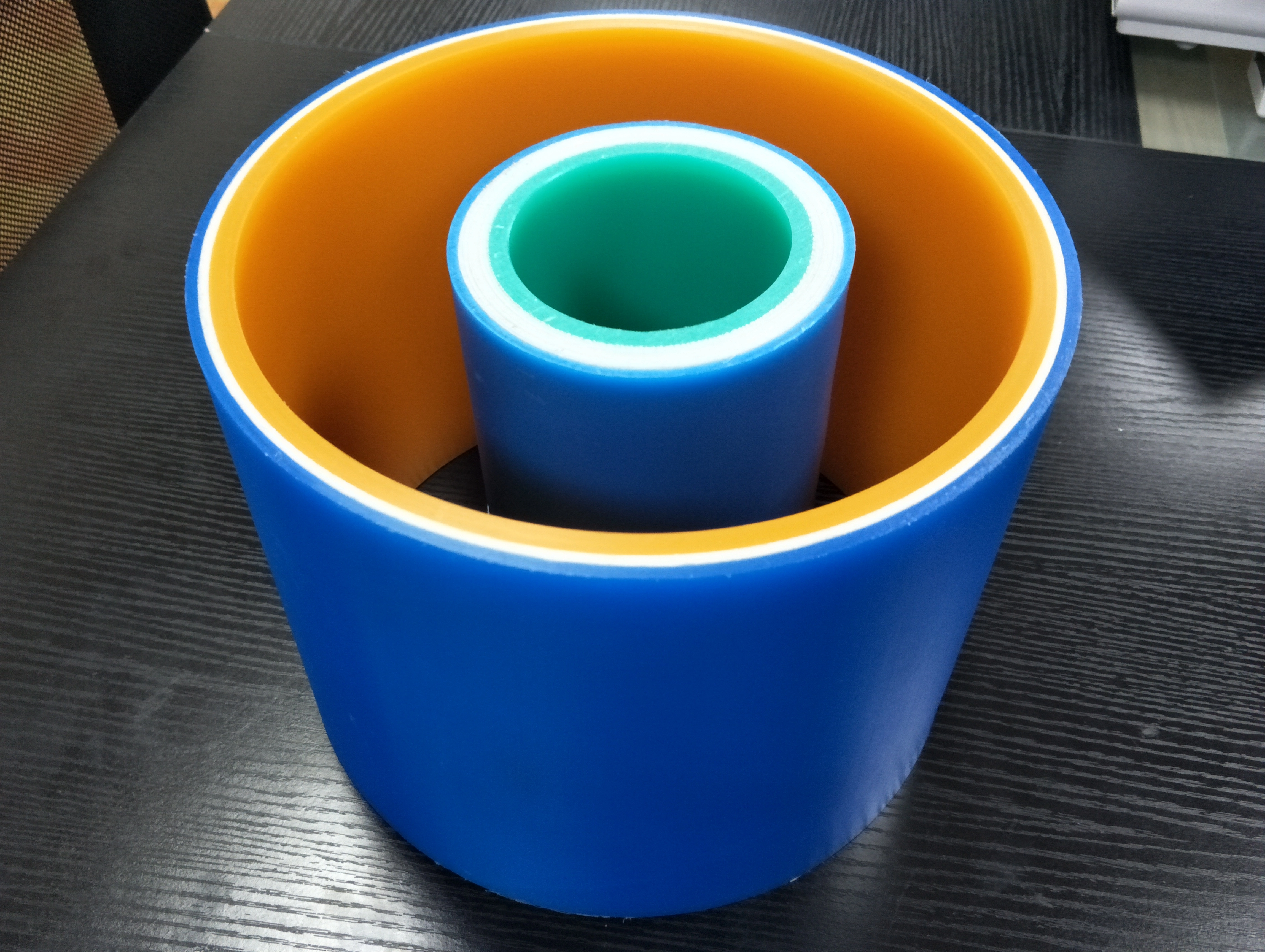

Flexible pipe output – Produces spoolable RTP pipes that are easy to transport and install in remote oil/gas fields.
Customizable – We can adjust the line configuration according to your required pipe diameter, reinforcement type, and capacity.
This RTP tape winding production line is ideal for manufacturing high pressure pipes used in:
Oil field oil gathering and transportation – Lightweight, corrosion-resistant alternative to steel pipes.
Deep geothermal pipelines – Handles high pressure and aggressive geothermal fluids.
Central heating secondary pipe networks – Provides long service life with low maintenance.
Hot spring water transportation – Resistant to high temperature and mineral deposits.
Proven technology – Over 31 successful installations in China, with many repeat customers.
Engineering support – We provide layout design, installation guidance, and operator training.
Competitive lead time – 45–60 days from order to delivery.
After-sales service – 1-year warranty and lifetime technical support.
Trusted manufacturer – Jiangsu Junma Machinery is a professional pipe production line supplier based in Suzhou, China.
Contact us for a customized RTP tape winding production line solution. Please provide your required pipe diameter, reinforcement type, and target output, and we will send you a quotation within 24 hours.
