The JMGDZ150 RTP tape production line is a specialized solution for manufacturing 2-6 inch (50-150mm ID)reinforced thermoplastic pipe (RTP) used in demanding oil and gas high pressure pipe applications. This RTP tape production line integrates advanced tape winding technology with fully automated control, allowing pipe producers to create high-strength composite pipes that combine the flexibility of thermoplastics with the burst resistance of continuous fiber or steel reinforcement.
Designed for the oil and gas industry, this high pressure composite pipe production line supports multiple reinforcement materials including glass fiber tape, aramid belt, polyester strip, and steel tape. Whether you need an RTP taping line for onshore oilfield gathering or a steel tape winding reinforced pipe production line for deep‑well geothermal transport, JMG Machinery delivers reliable, high‑output equipment with a proven track record.
| Model | JMGDZ150 |
|---|---|
| Pipe Diameter (ID) | 50 – 150 mm (2 – 6 inches) |
| Production Speed | 2 – 4 m/min |
| Control System | Fully automated PLC control with HMI |
| Reinforcement Materials | Glass fiber tape, aramid belt, polyester strip, steel tape |
| Outer Layer Material | HDPE (anti-aging, UV-resistant) |
| Inner Liner Material | PE / PP / PA (customizable) |
| Winding Stations | 2 or 4 units (modular) |
| Weight | 2 – 3 tons |
| Warranty Period | 1 year |
| Delivery Time | 45 – 60 days |
| Capacity (DN100mm, 4MPa) | 480 km/year |
| Capacity (DN150mm, 4MPa) | 370 km/year |
A true reinforced thermoplastic pipe production line that handles glass fiber tape, aramid belt, polyester strip, and steel tape winding on the same platform.

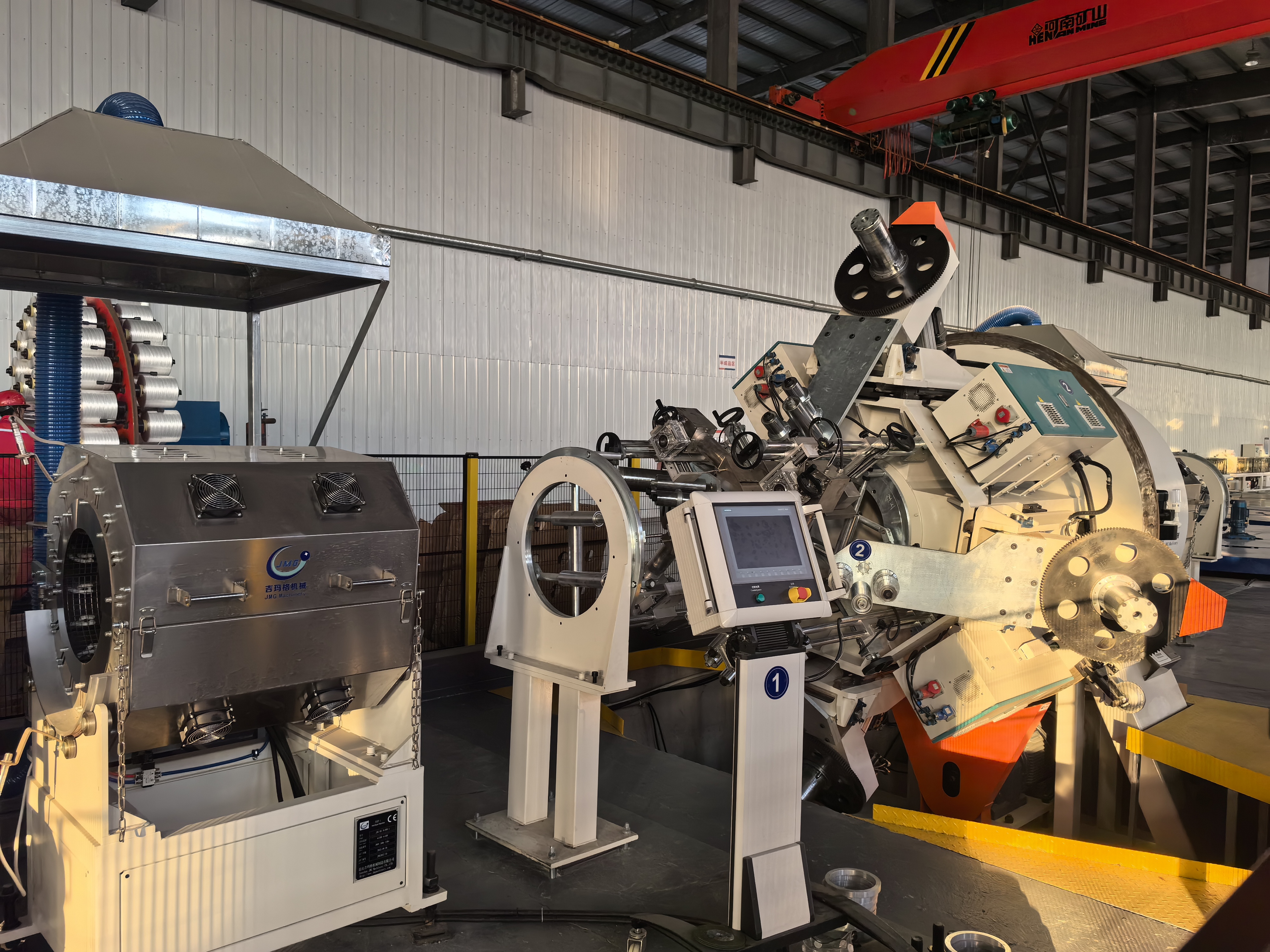

⚙️ Fully Automated Control
PLC-based system with real‑time monitoring of tape tension, winding angle, and layer count. The tape winding machine maintains precise angle control (±0.5°).

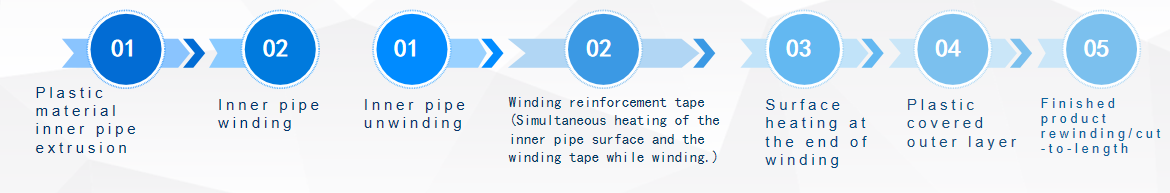

Inner liner (PE/PP/PA) + reinforcement layer + outer HDPE protective layer. Delivers working pressures far exceeding conventional PE pipes.
Speed 2‑4 m/min → DN100 pipe: 480 km/year; DN150 pipe: 370 km/year.
Configure with 2 or 4 winding units. Start with a basic glass fiber tape winding reinforced pipe machine and upgrade to a steel tape winding reinforced pipe production line later.

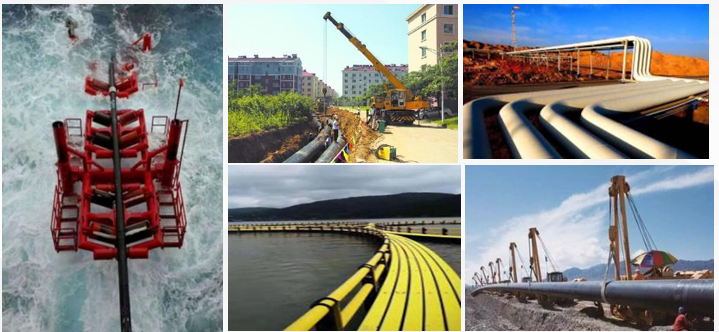

️ Oil & Gas Industry – Oilfield gathering, crude oil transfer, high-pressure water injection
Geothermal Energy – Deep well casings, hot water/steam up to 95°C
District Heating – Secondary pipe network for central heating
Water Infrastructure – High-pressure water supply, mine dewatering
Industrial Fluid Handling – Chemical plants, abrasive slurries
Proven Track Record – 31+ RTP production lines installed in China within last 4 years.
Customizable Solutions – Tailored winding stations, tape materials, and control software.
Comprehensive Support – Installation guidance, operator training, after-sales support.
✅ Quality Assurance – Rigorous factory testing with your specified reinforcement tape.
⏱️ Competitive Lead Time – 45–60 days delivery, expedited shipping optional.
Need a complete reinforced thermoplastic pipe production line for 2-6 inch oil and gas high pressure pipes?
Contact JMG Machinery today to receive a customized quotation and technical drawing.
Please provide the following information for a tailored proposal:
Required pipe diameter range (within 2-6 inches)
Reinforcement material preference (glass fiber tape / aramid belt / steel tape / polyester strip)
Target working pressure (MPa or psi)
Annual production volume (km/year)
Our engineers will respond within 24 hours with a detailed solution including layout drawing, price, and delivery schedule.
