Glass fiber tape winding reinforced composite pipe production equipment

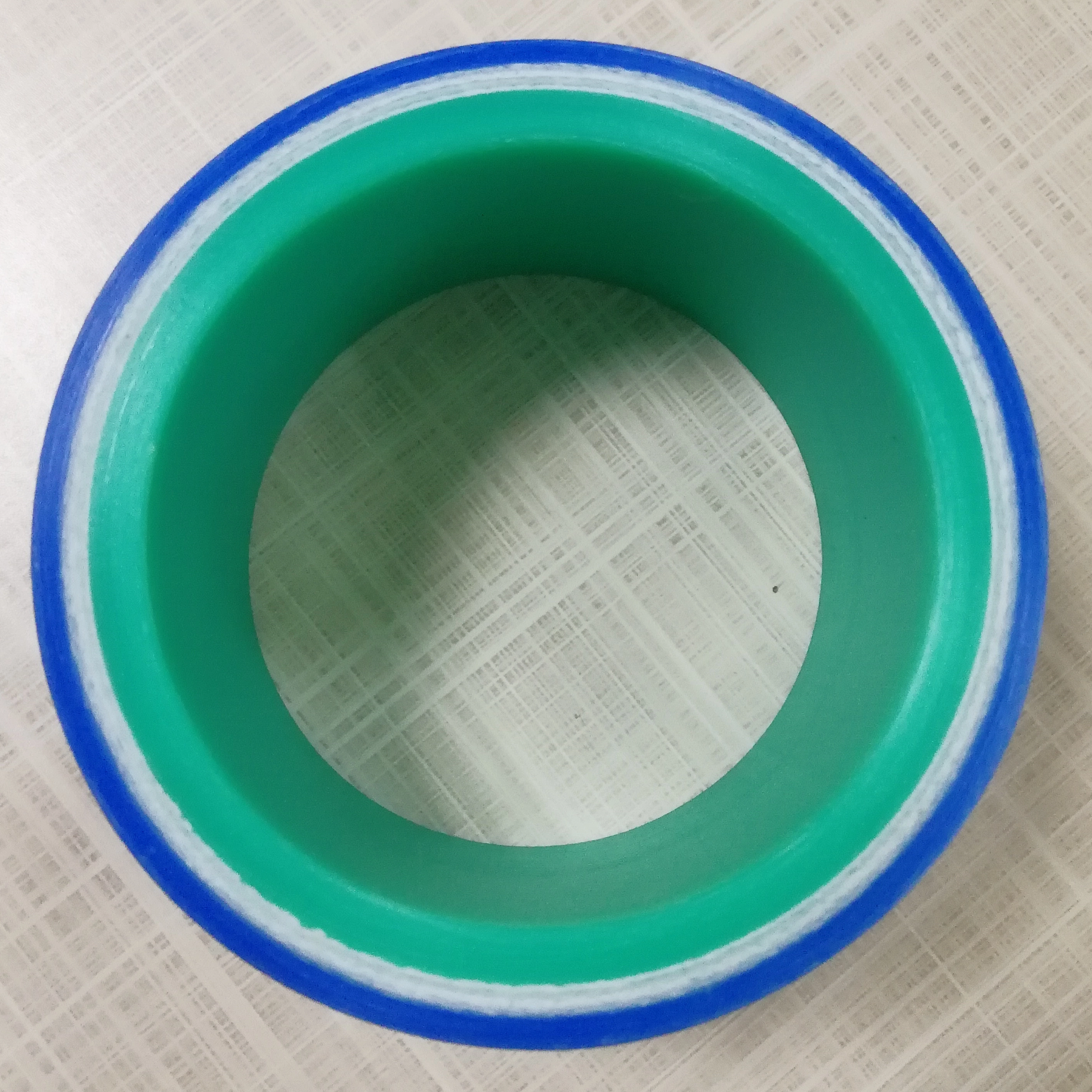

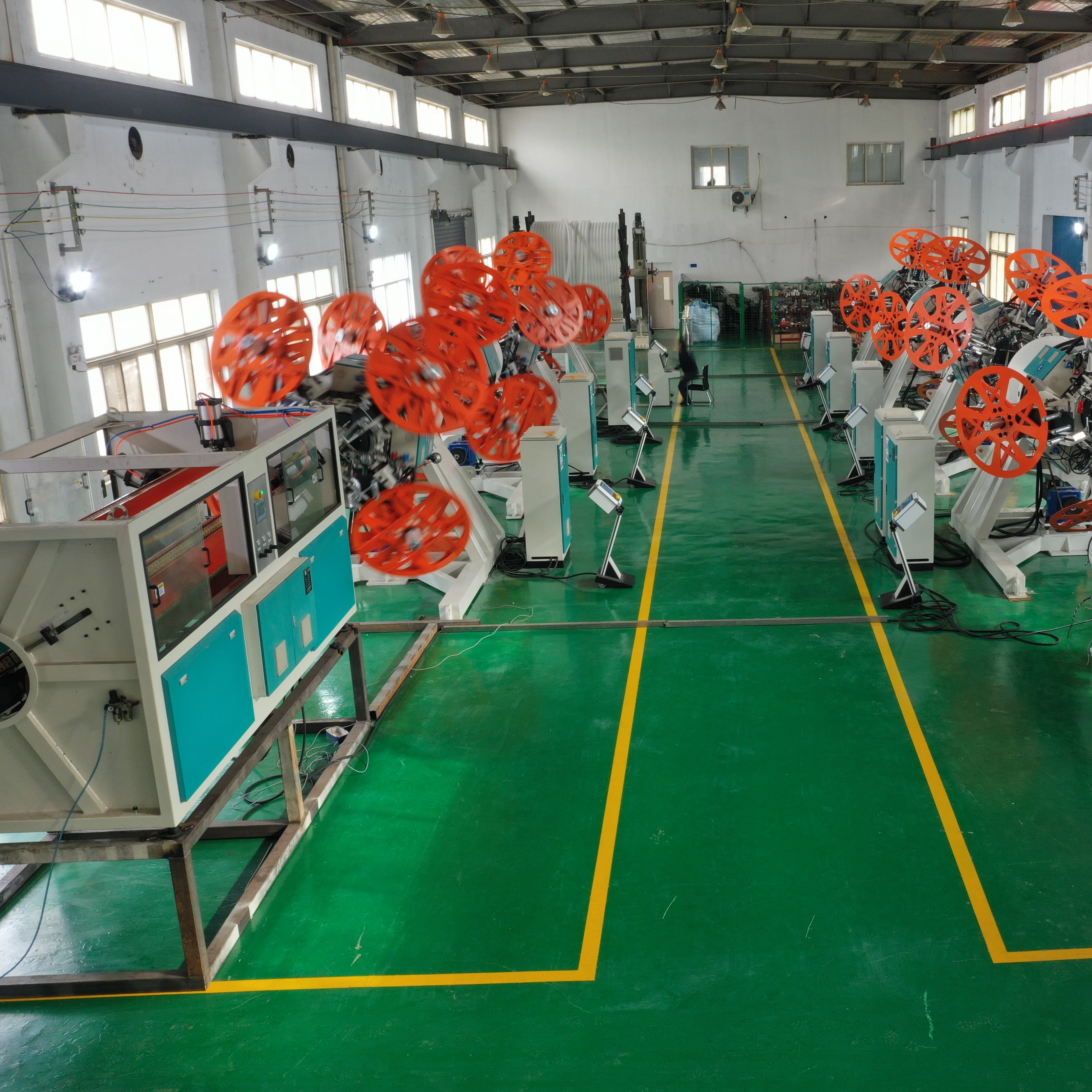

This production line is designed for continuous manufacturing of Glass Fiber Tape Winding Reinforced Thermoplastic Composite Pipe (RTP/TCP). The system adopts pre-impregnated unidirectional (UD) tape winding / in-situ consolidation process, using hot air heating to achieve simultaneous winding and fusion without post-curing. The produced pipe features a three-layer structure: inner liner (PE/PP/PERT/PA), reinforcement core (interlaced glass fiber UD tape winding), and outer protective layer (abrasion-resistant/UV-stable/flame-retardant). Pipe diameter ranges from 50 to 600mm, with maximum pressure rating up to 30MPa, offering a reliable alternative to traditional metal and GRE pipes.

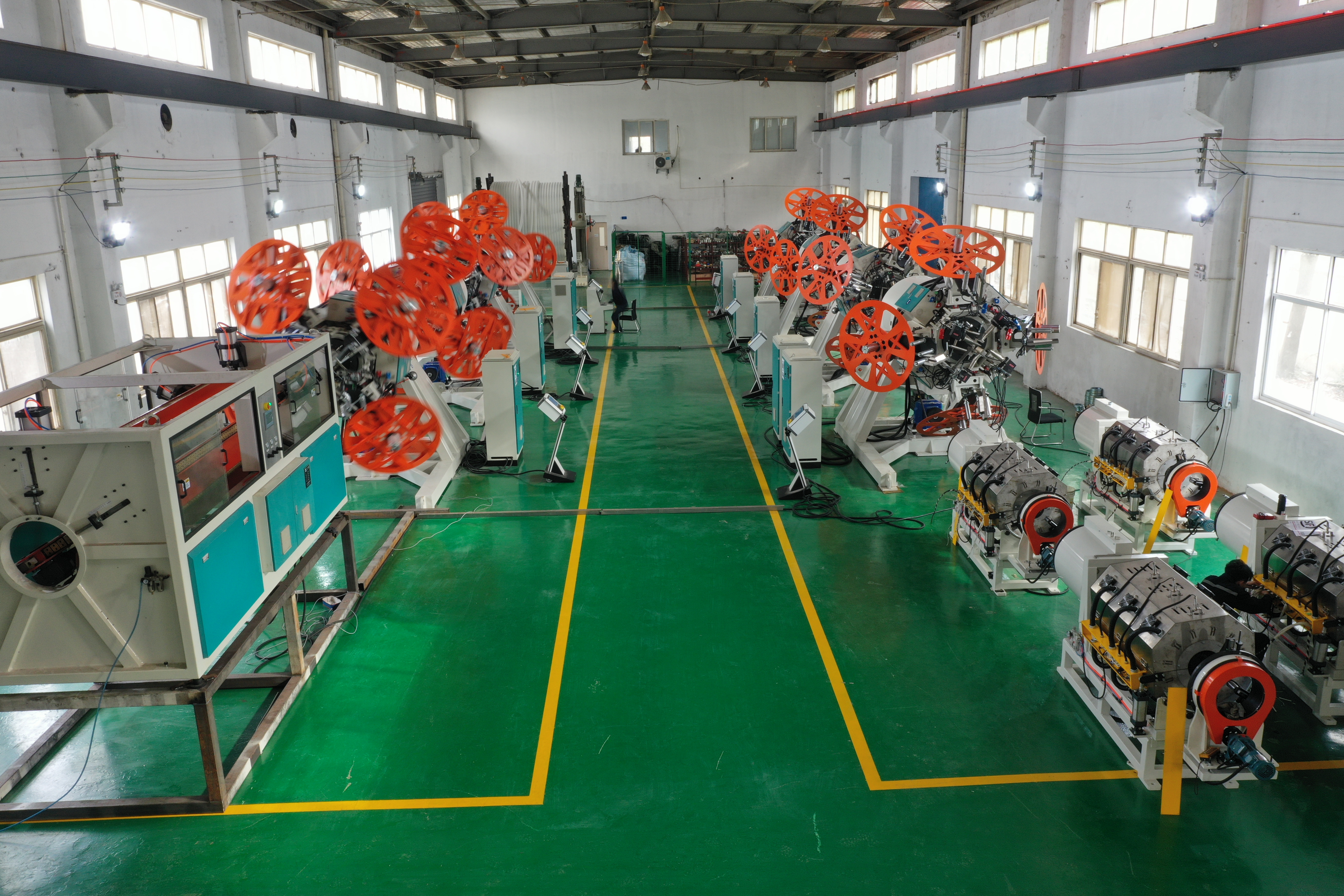

Working Principle & Process Flow

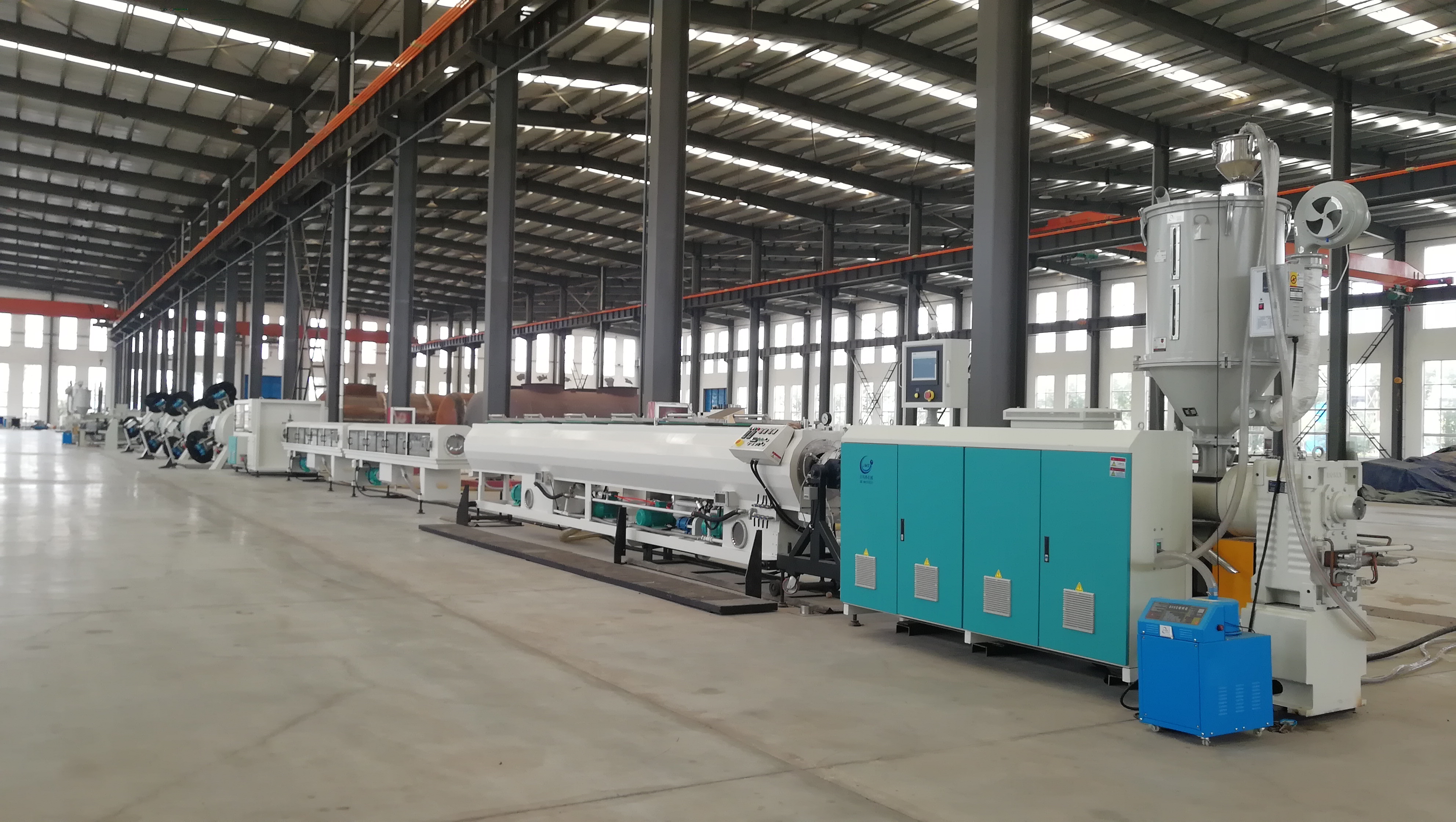

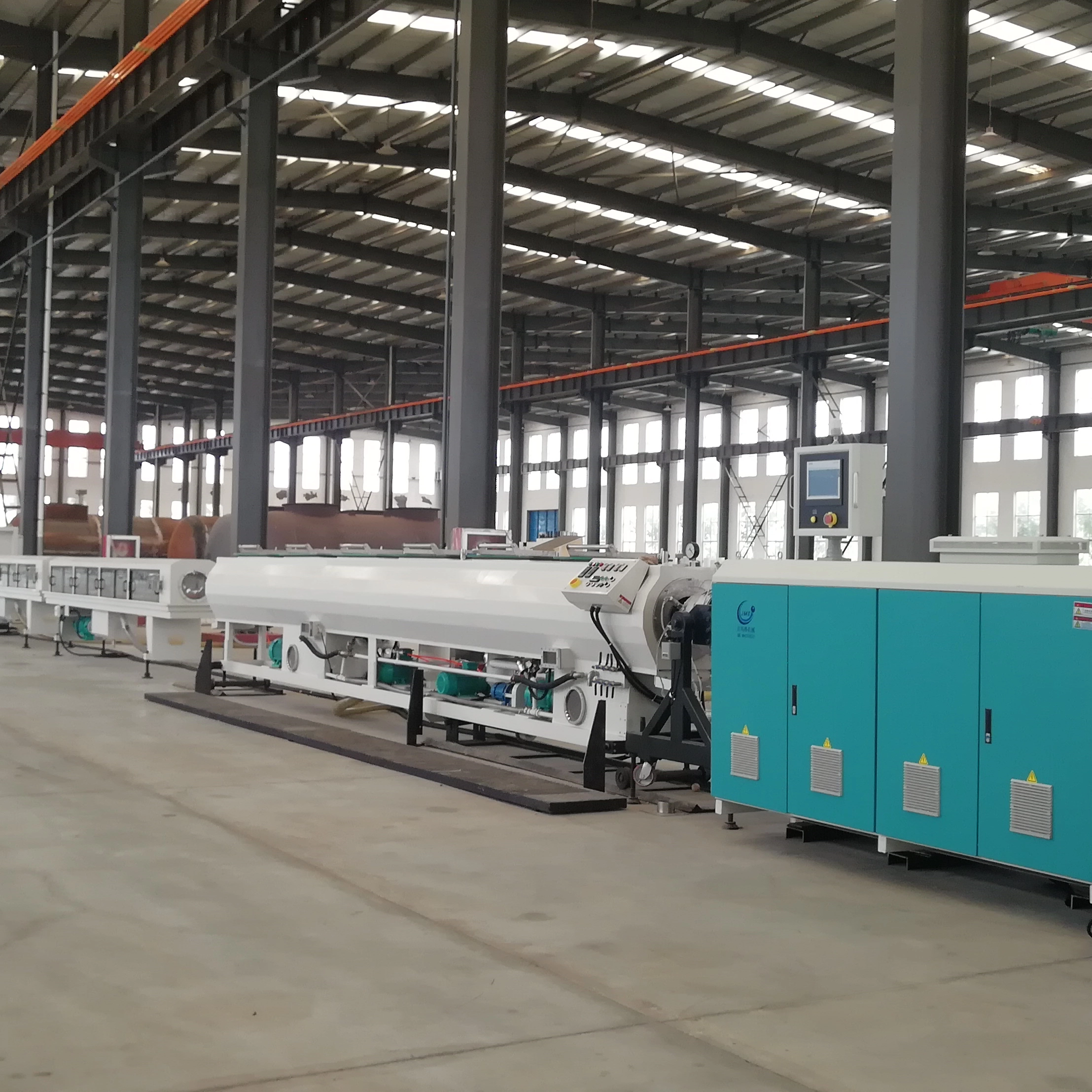

Inner liner extrusion: Single/twin screw extruder extrudes thermoplastic (PE/PP, etc.) to form a continuous inner pipe through a die.

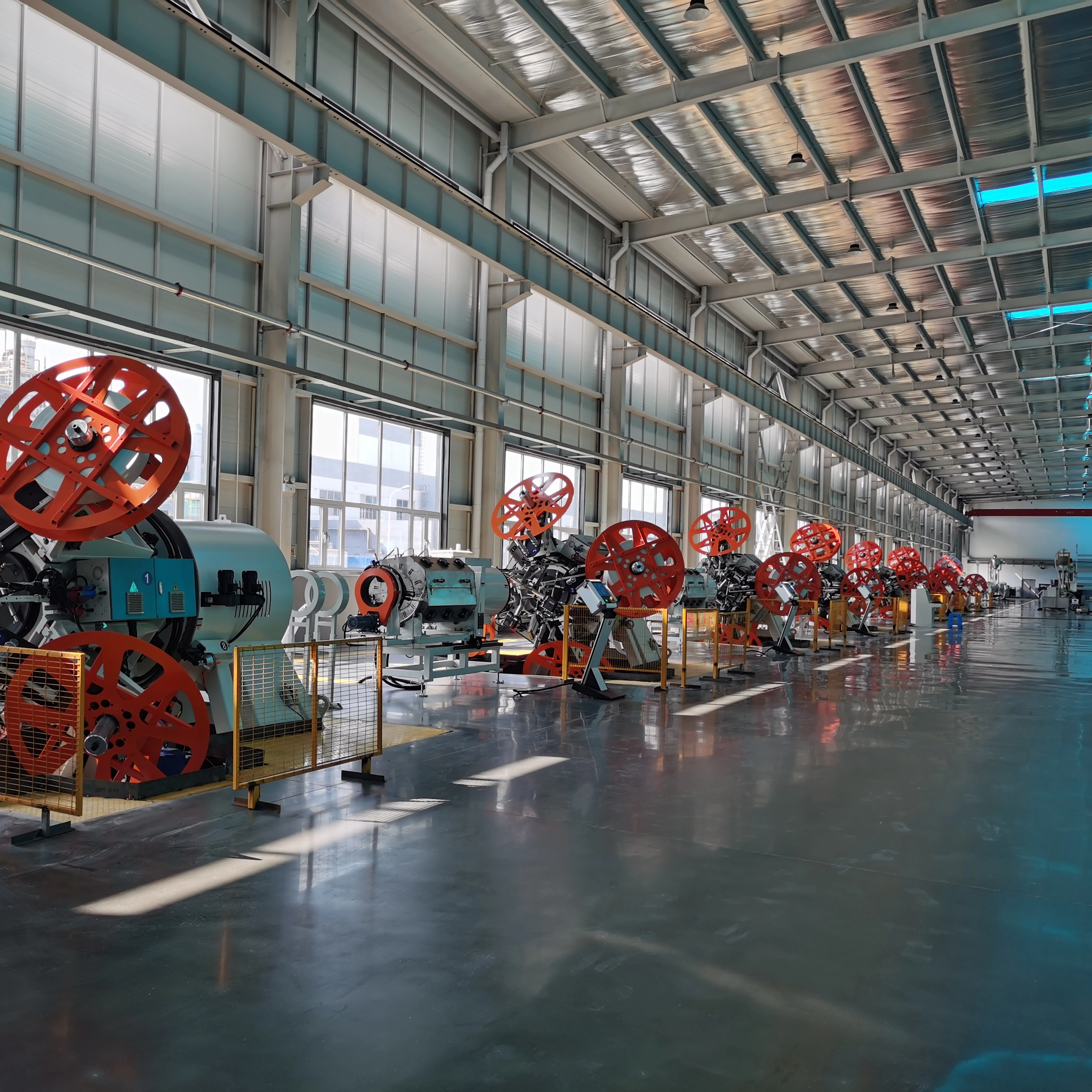

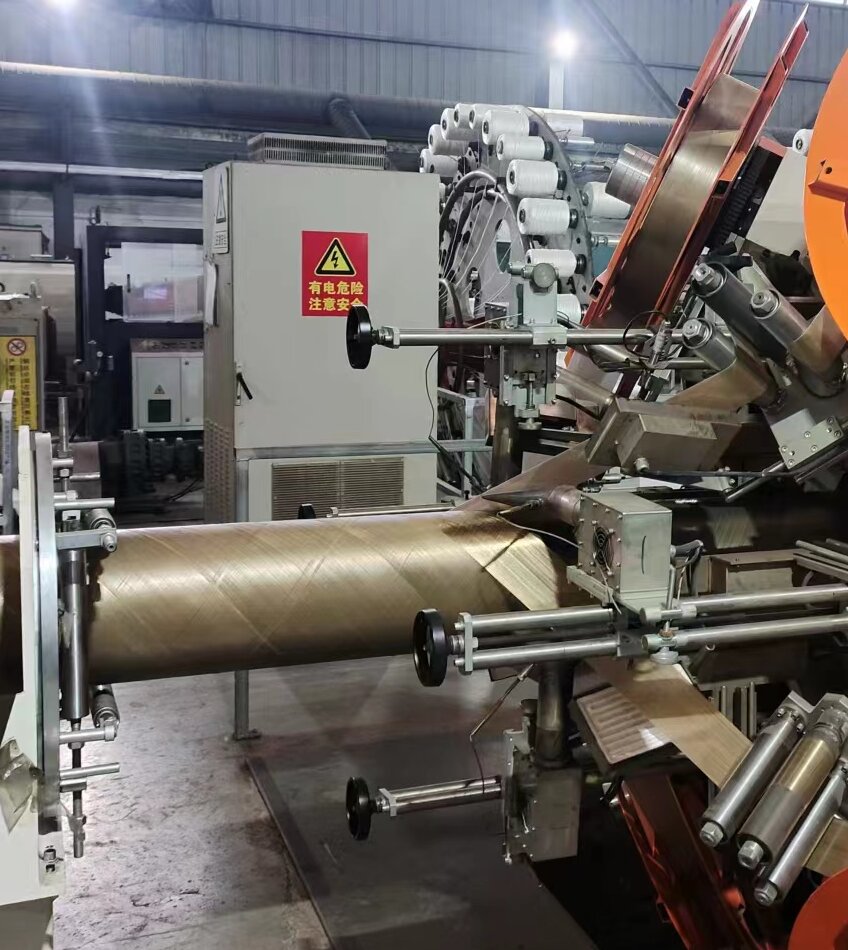

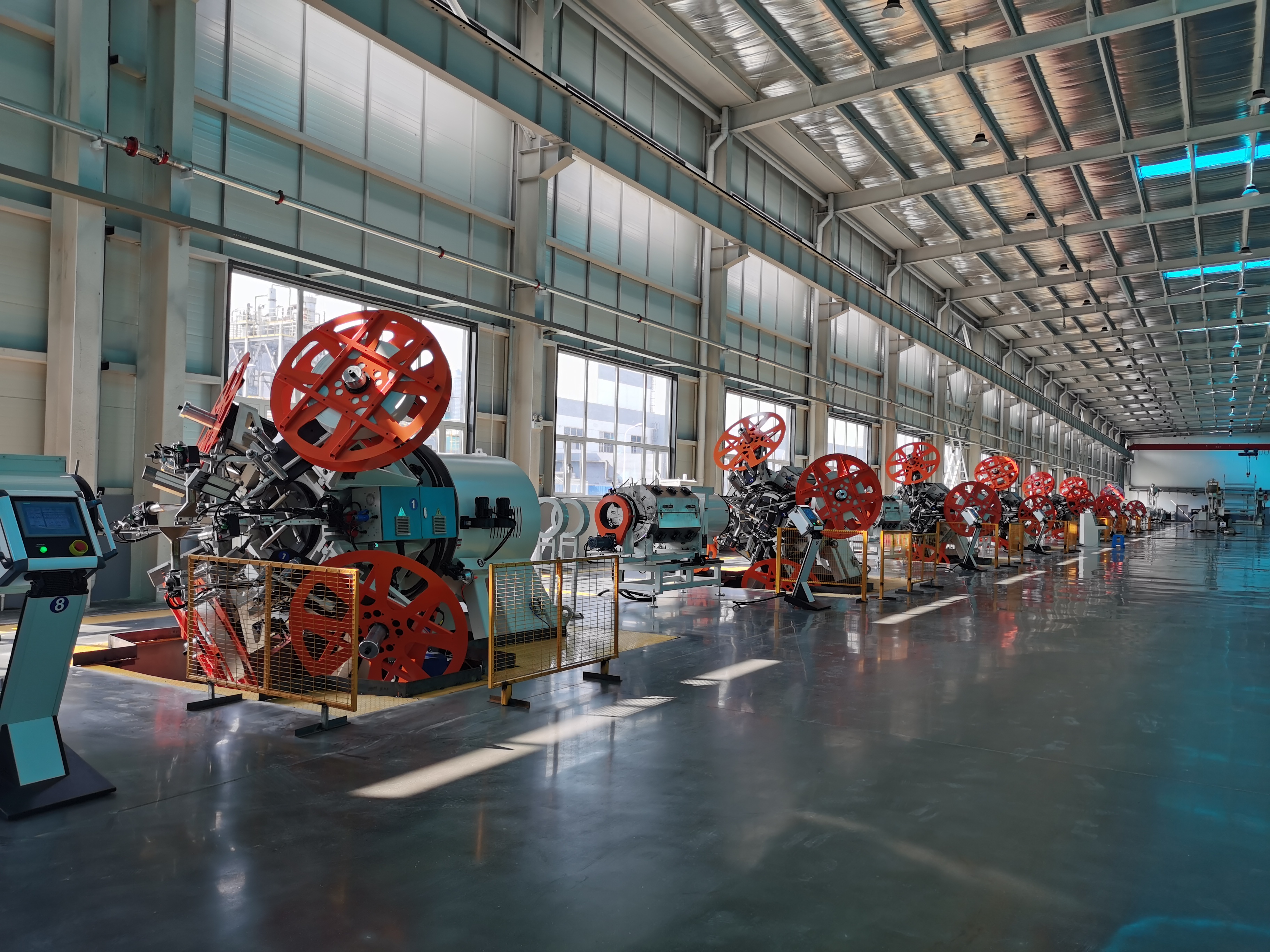

Glass fiber tape winding reinforcement: The inner pipe enters a 4-spindle (or multi-spindle) winding unit. Glass fiber UD tape is wound at set winding angles (±45°~±60° adjustable) under constant tension, with multiple interlaced layers. Simultaneously, hot air nozzles heat the winding point for in-situ consolidation, fusing the tape with the inner pipe to form the reinforcement core.
Outer coating: The reinforced pipe enters a second extruder to apply an outer protective layer (color stripes, flame retardant, etc. optional).
Cooling & sizing: Vacuum sizing tank + spray cooling.

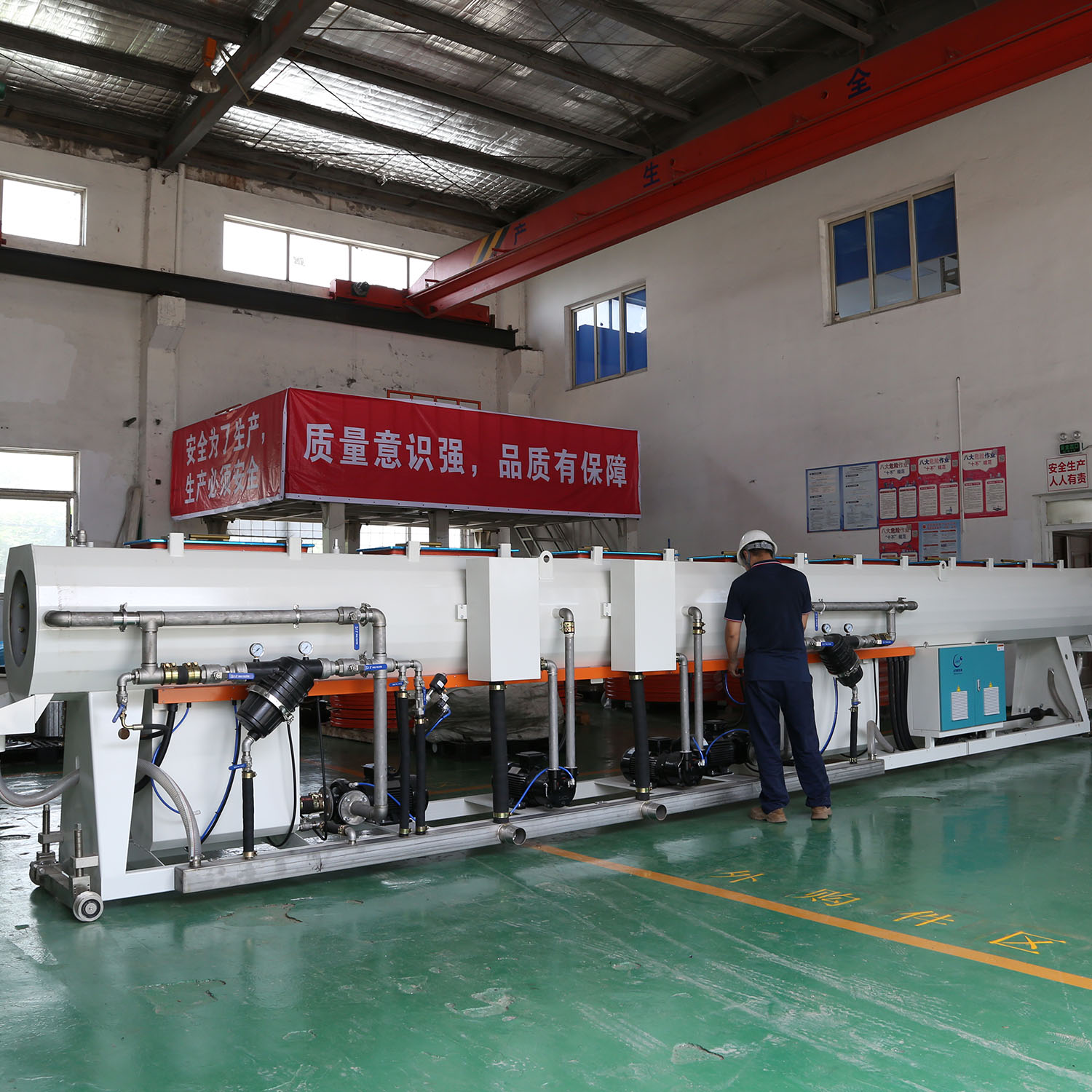

spraying tank

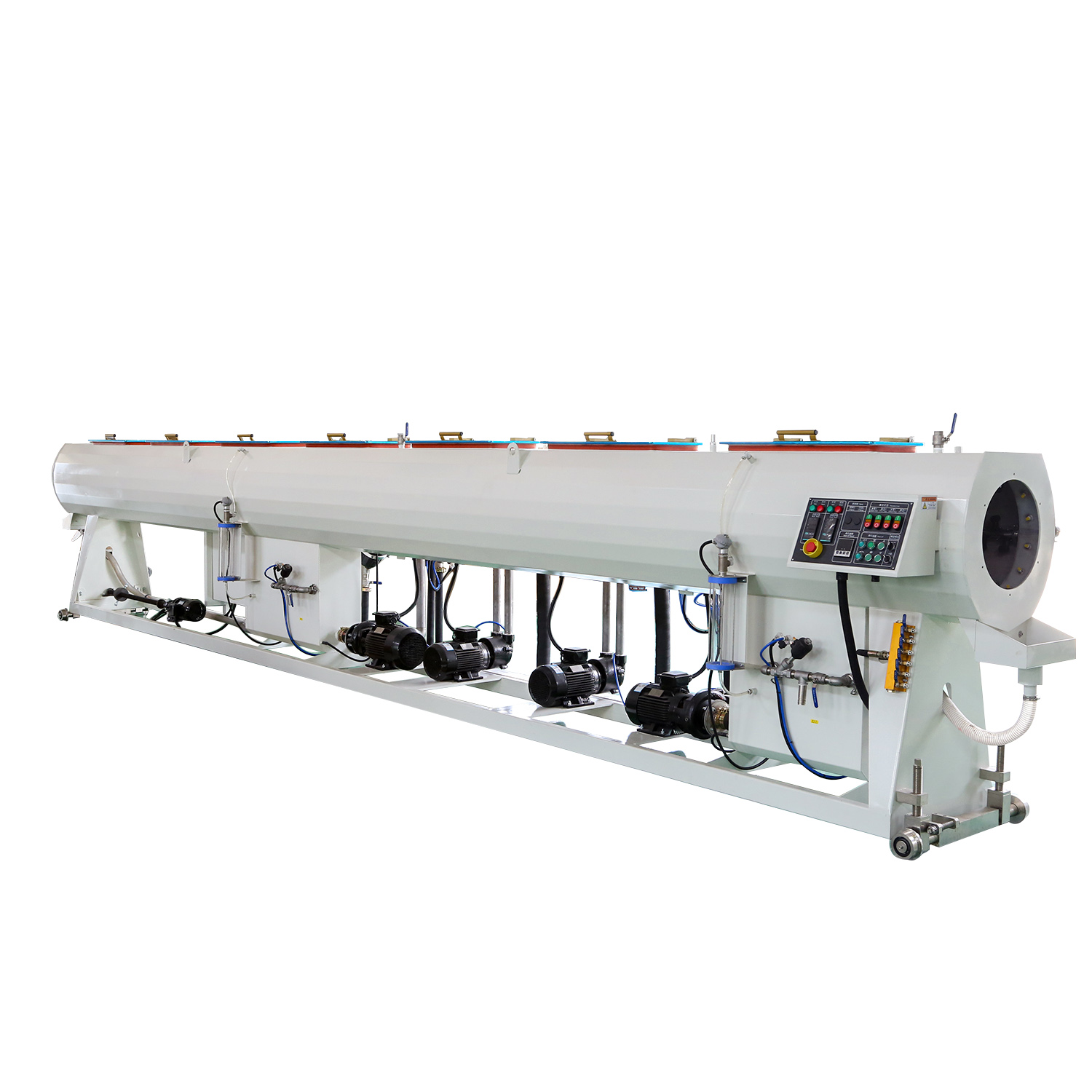

Vacuum tank
Haul-off, cutting, coiling: Caterpillar haul-off unit, chip-less automatic cutter, dual-station coiler

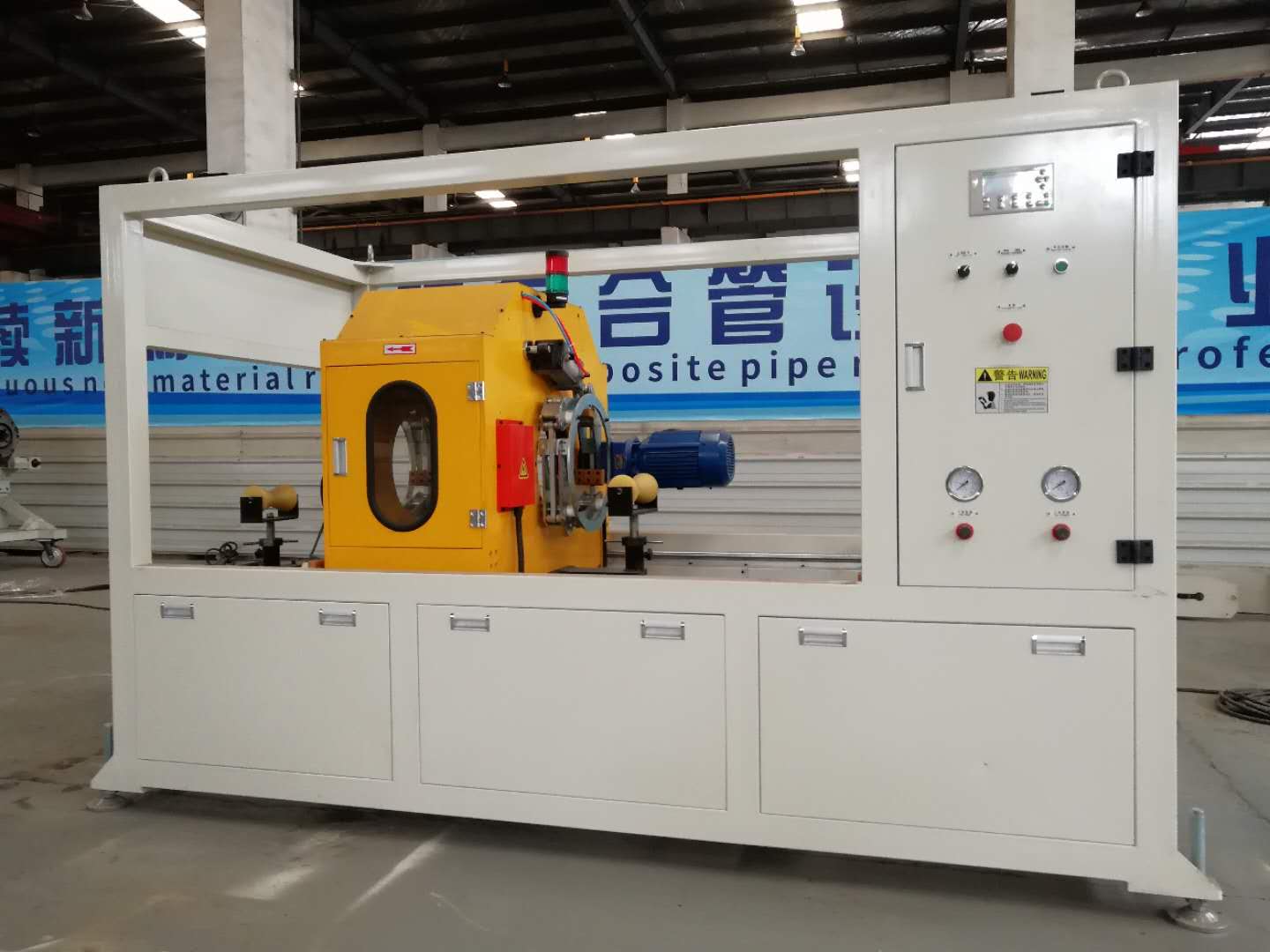

cutting machine

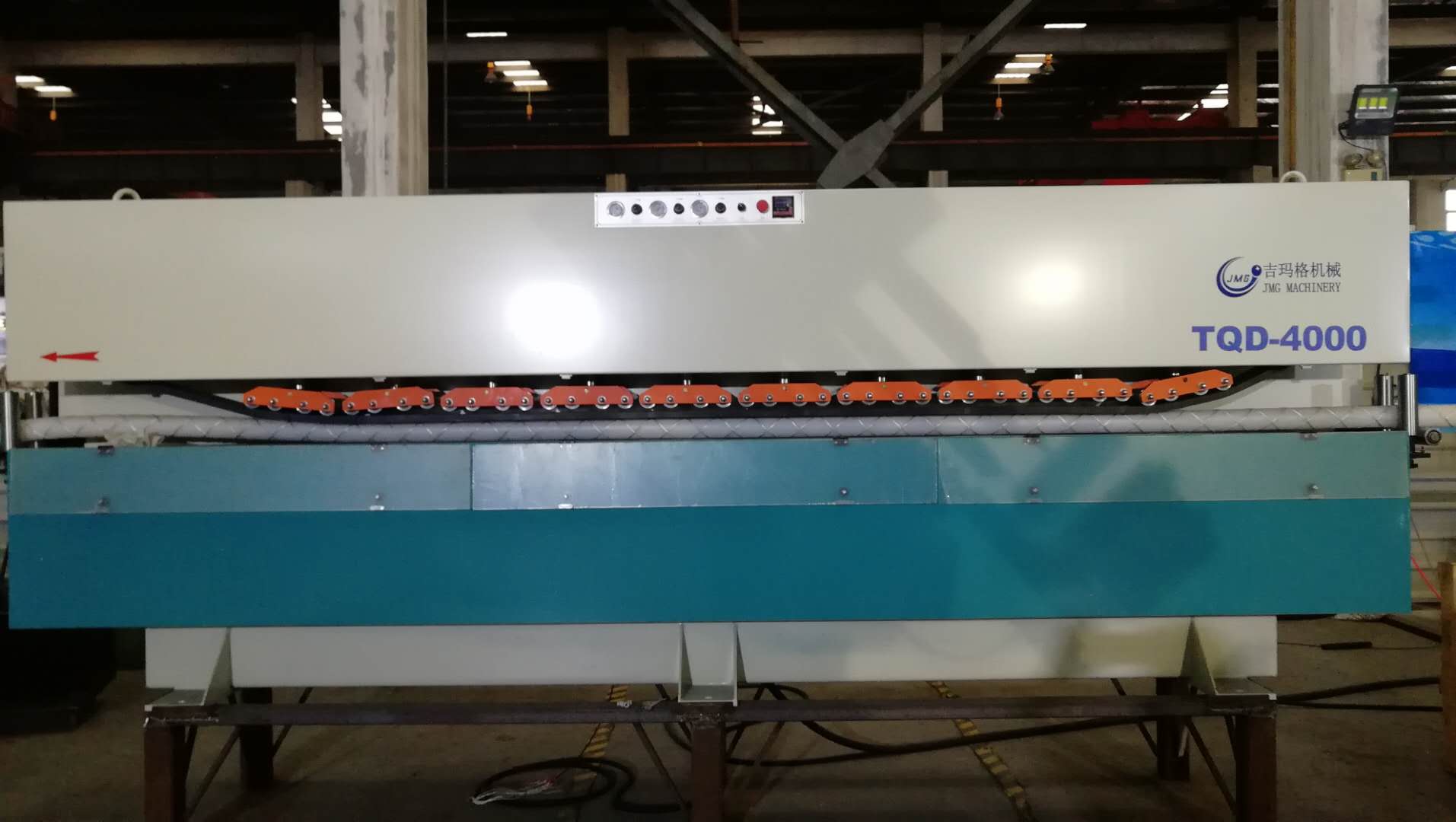

puller

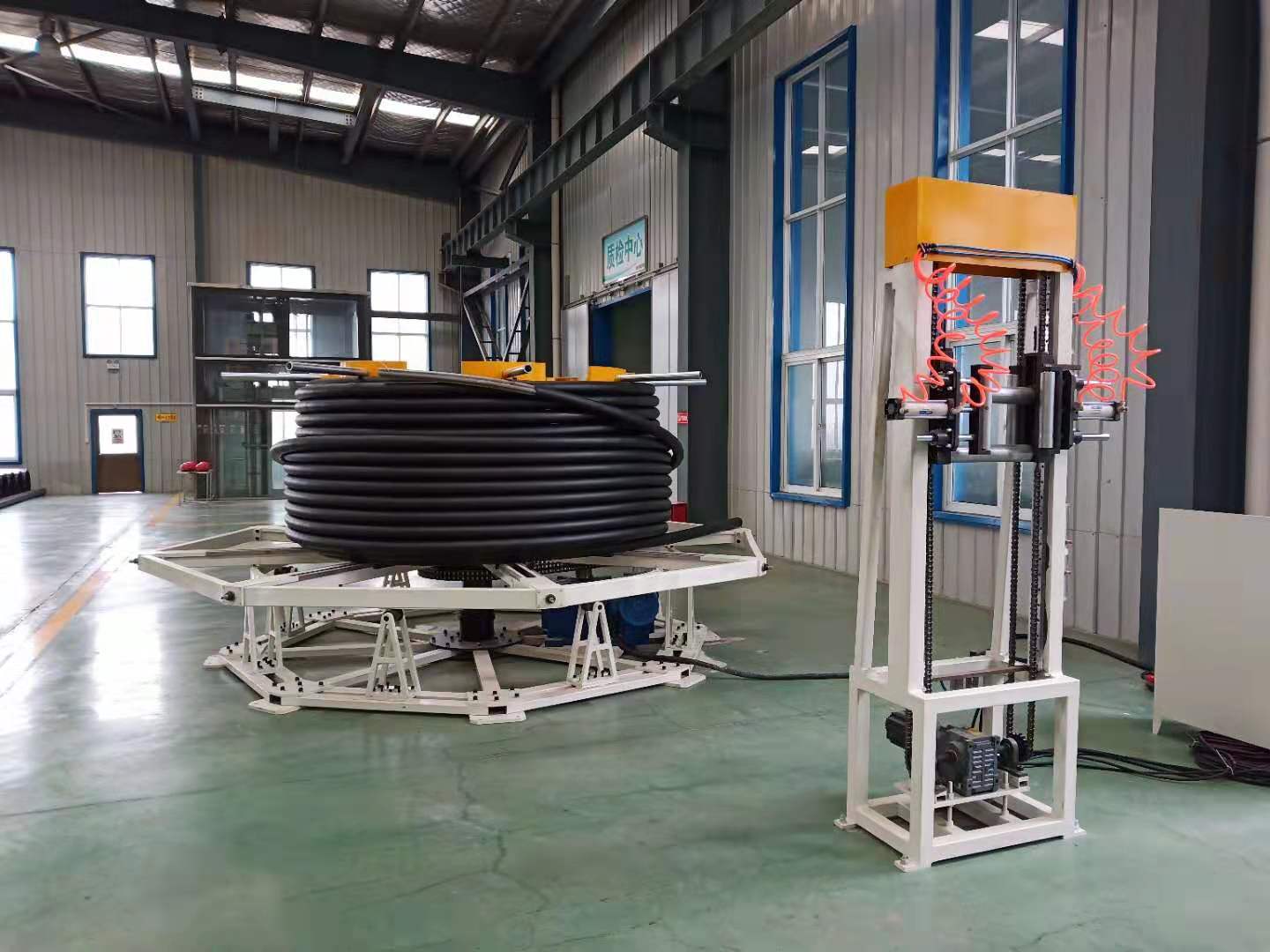

station coiler
Main Technical Parameters
| Parameter | Range / Option |
| Pipe outer diameter | 50 – 600mm |
| Reinforcement thickness | 1.2 – 6mm |
| Max working pressure | 30MPa (300bar) |
| Number of winding spindles | 4 / 6 / 8 optional |
| Winding angle range | ±30°~±75° adjustable |
| Heating method | Hot air in-situ consolidation (closed-loop temperature control) |
| Tension control | Servo motor + load cell, closed-loop automatic adjustment |
| Tape width | 10 – 40mm |
| Line speed | 0.5 – 4 m/min (depends on diameter and layers) |
| Compatible tapes | Glass fiber UD tape, aramid tape, steel cord tape, steel tape, etc. |
Key Advantages
Versatile: Quick changeover between different reinforcement tapes (glass fiber/aramid/steel) for various pipe grades.
Continuous & efficient: Winding and consolidation occur simultaneously – no offline curing, greatly improving productivity.
Precise control: Automatic winding angle tracking, closed-loop tension control, PID temperature regulation ensure uniform defect-free reinforcement layer.
Eco-friendly & recyclable: Fully thermoplastic material; pipes can be recycled at end of life, meeting circular economy requirements.
Advantages over alternatives: Lighter, corrosion-resistant, flexible & spoolable compared to metal pipes; non-brittle and recyclable compared to GRE pipes.

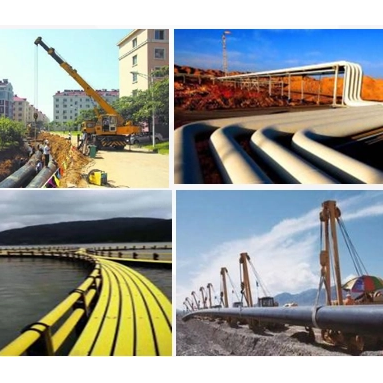

Typical Applications
Oil & gas transportation (high-pressure gathering lines)
High-pressure water injection, fracturing flowback fluid transfer
Municipal water supply & drainage, fire water lines
Thermal pipe networks (operating temperature up to 95°C)
Chemical corrosive media transfer
Mine backfill pipelines
Optional Configurations
Multi-spindle winding unit (6-spindle / 8-spindle)
Online wall thickness gauge
Laser diameter gauge
Color stripe co-extrusion die
Pipe end belling / flaring machine
Fully automatic coil changeover system
Company introduction
Kunshan JMG Machinery Manufacturing Co., Ltd. is committed to providing customers with R&D, intellectual property, and integrated, personalized solutions for new material composite pipe equipment. Our capabilities cover the entire production process, from plastic pipe extrusion, reinforced composite, outer coating, and finished product rewinding, to the production of pipe joints, buckling, and pipeline connections. We offer differentiated, exclusive customization based on each customer's unique requirements.
Our main products include:
Tape winding reinforced composite pipe production equipment – suitable for tapes such as fiberglass tape, aramid tape, polyester tape, steel tape, steel cord tape, etc.
Non-metallic wire winding reinforced composite pipe production equipment – suitable for polyester wire, aramid wire, fiberglass wire, basalt wire, as well as twisted, bundled, or rope forms.
Metal wire winding reinforced composite pipe production equipment – including steel wire mesh skeleton, etc.
High-efficiency plastic extrusion production equipment
Composite pipe production equipment
Auxiliary equipment
Our tape winding reinforced pipe winding equipment (RTP pipe equipment) is one of our flagship products and is also a patented product of the company (Patent No.: ZL201721360511.X).
|
Comment & FAQ
1: What are your strengths?
Answer: Kunshan Gemag Machinery adopts a unique combination of infrared and hot air heating. The heating method is reasonable, efficient, with good heating effect and stable performance, which makes the adhesion of the reinforcement layer stronger. With mature technology and experienced engineers.
2: How will the machine be assembled and debugged when it arrives at the factory, and will the customer's employees be trained?
Answer: We will debug the equipment before delivering it to the customer's site. After the debugging is correct, it will be disassembled and sent to the customer's factory. After shipment, we will have experienced engineers on-site to install and assist in debugging. After the on-site installation and commissioning are completed, all-round training will be provided to the customer's employees.
3: What do you do if there is a problem or failure with equipment that requires guidance or replacement parts?
Answer: If there is a problem, we will provide video technical guidance, and if necessary, we will send engineers to the site to solve the problem. If during the warranty period, parts need to be replaced, we will send spare parts for free. For wearing parts, we only charge the cost fee.
4: How long is the warranty period of the product?
Answer: We will provide 1 year parts warranty and technical support.
5: Can I visit your factory in China?
Answer: Yes, our factory is located in Kunshan, Suzhou, near Shanghai. If customers need on-site
visits, we can provide airport pick-up for you.
6 : Can you customize according to requirements?
Answer: Kunshan Gemag Machinery is committed to differentiated and exclusive customization according to the different needs of customers. Our goal is to pursue efficiency and performance stability. We design machines according to customers' products to meet customers' needs.
