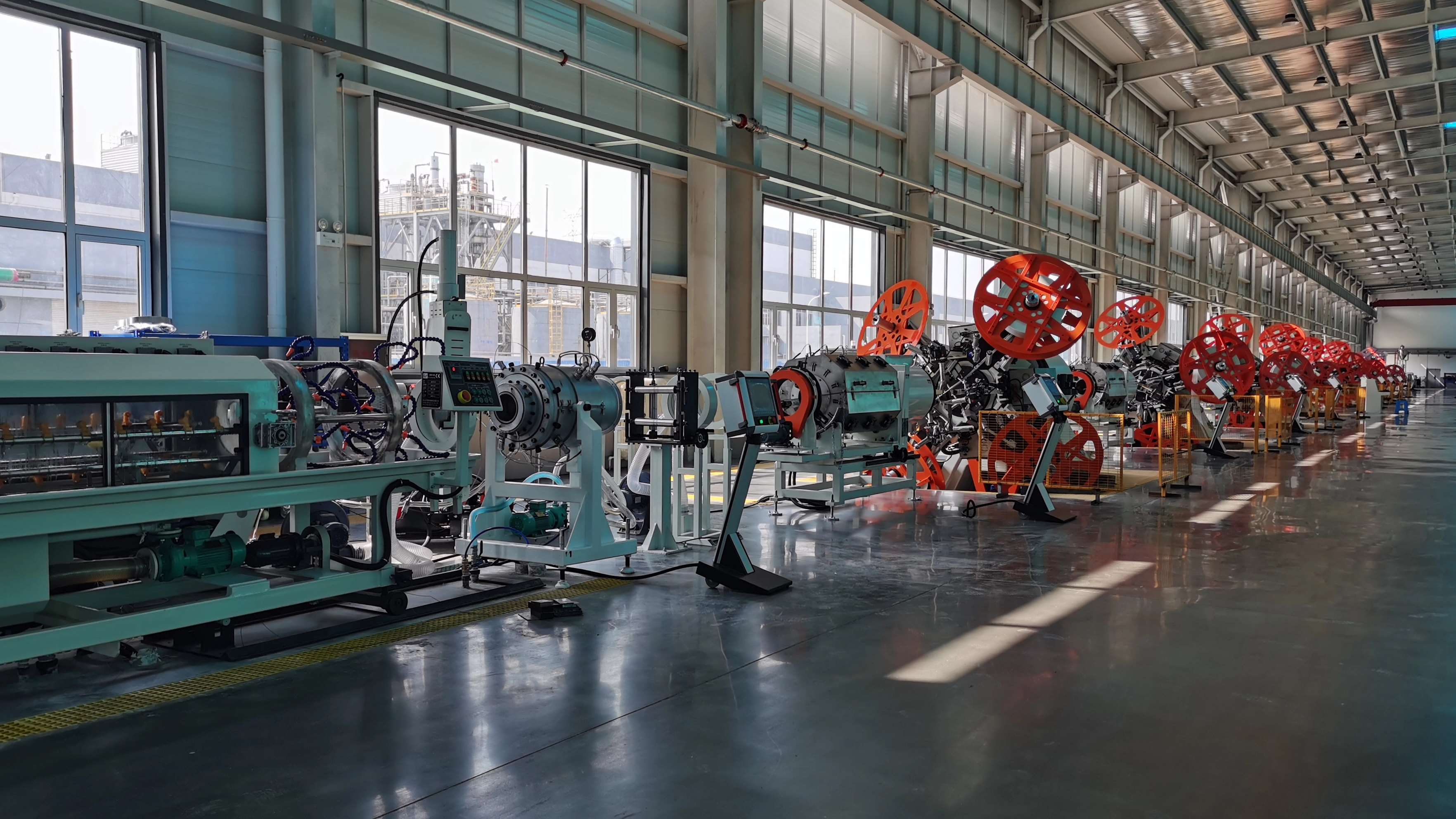

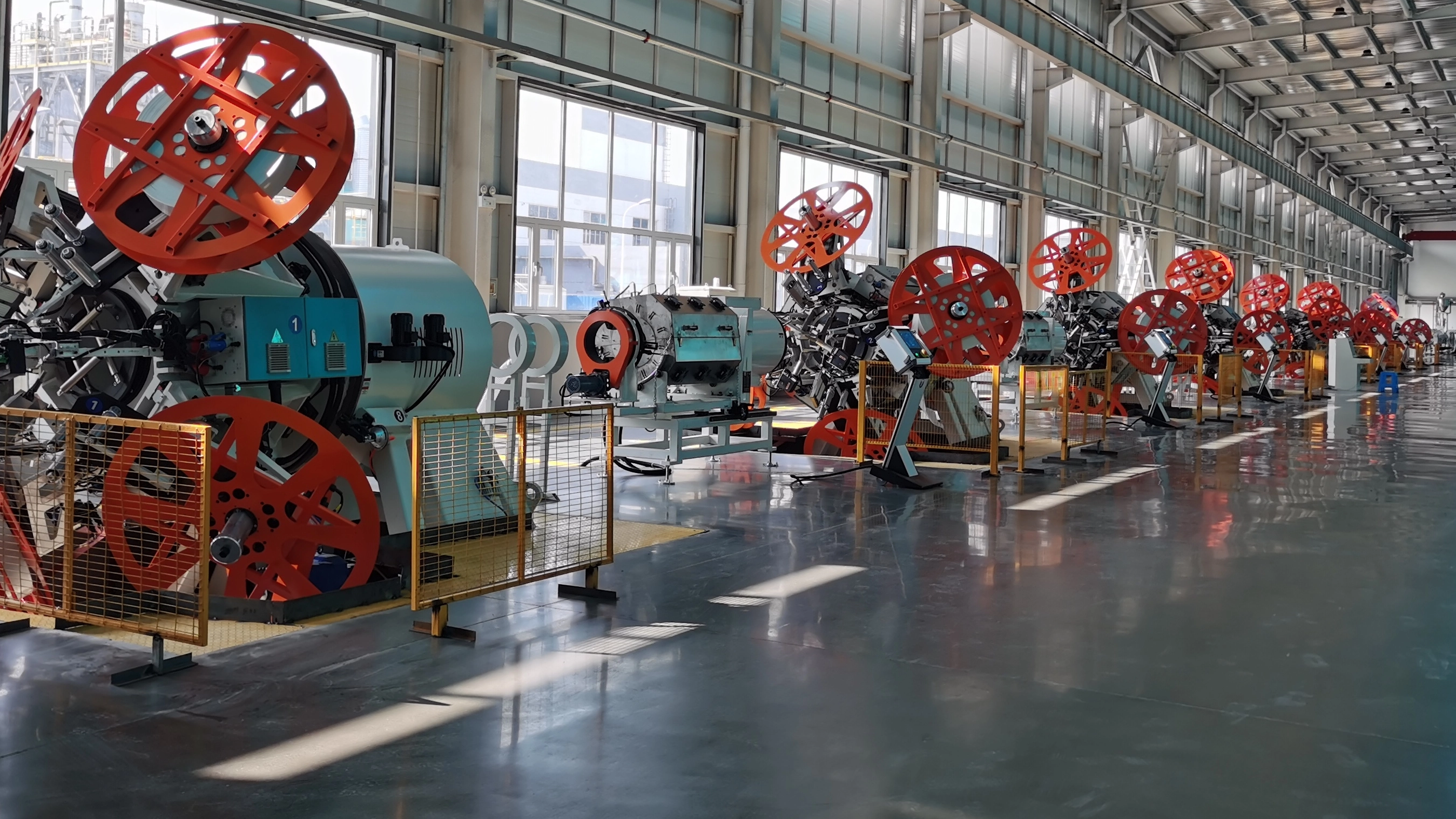

JMG Machinery presents its state-of-the-art fiberglass tape winding RTP pipe production line — a comprehensive manufacturing solution engineered for the production of high-performance Reinforced Thermoplastic Pipes (RTP) and Thermoplastic Composite Pipes (TCP) for demanding oil & gas, water supply, mining, and industrial applications.

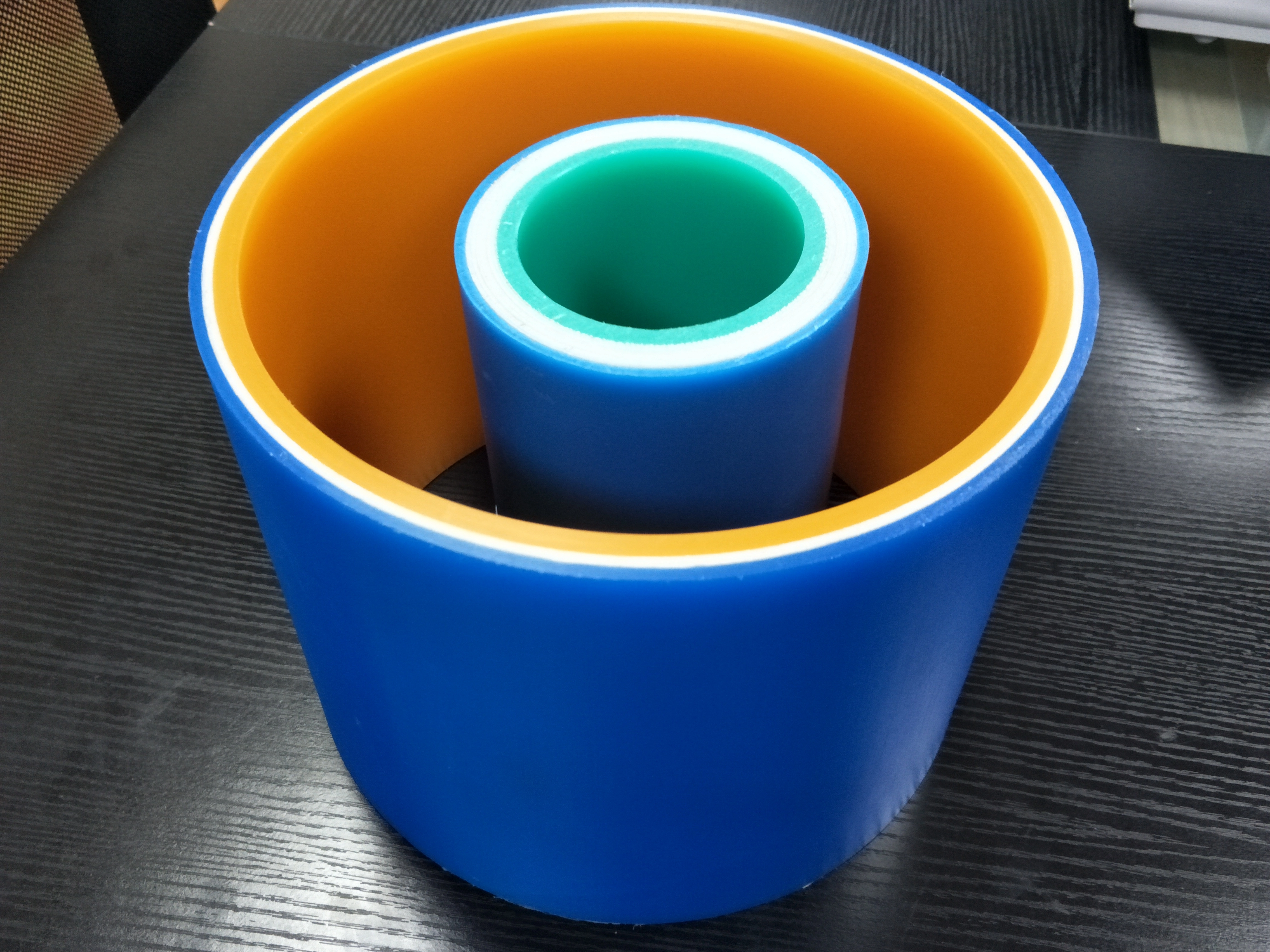

Our glass fiber tape winding RTP pipe production line is designed to manufacture continuously reinforced thermoplastic composite pipes featuring a three-layer structure: a thermoplastic inner liner (PE80/PE100/PA/PERT/PVDF), a helically wound reinforcement layer made of fiberglass tape, aramid tape, polyester tape, or steel cord tape, and a protective HDPE outer layer with UV and aging resistance.

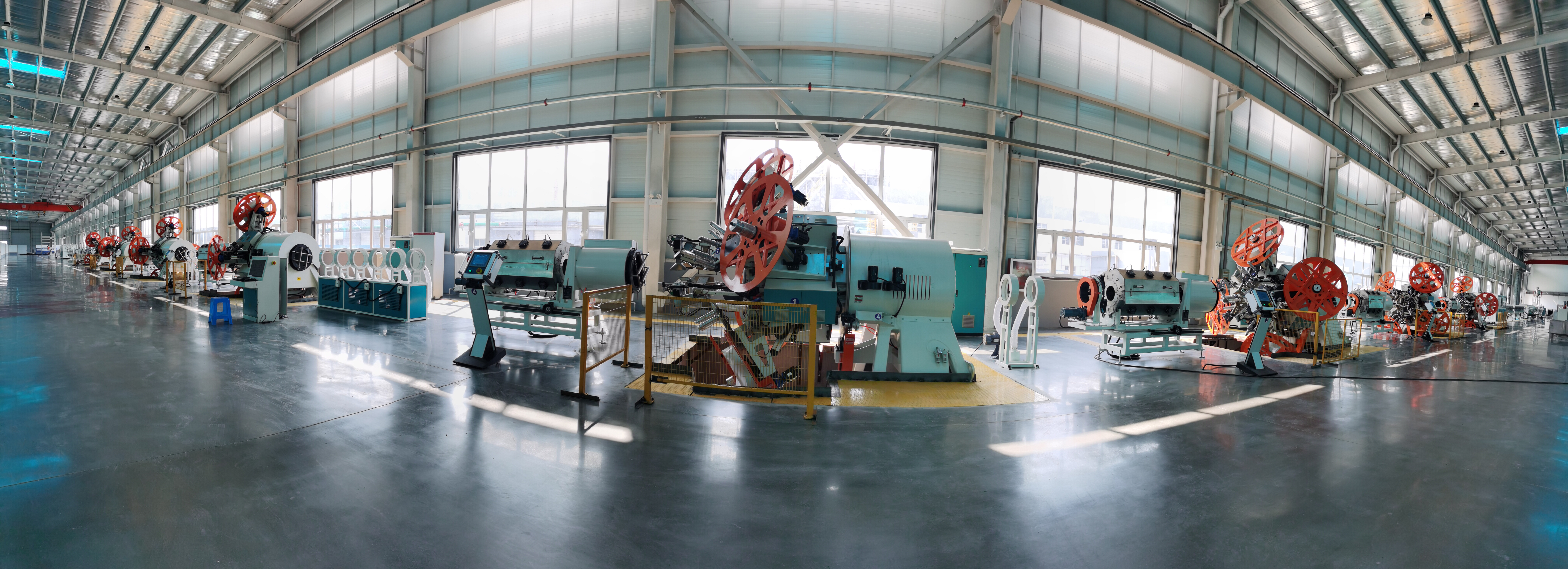

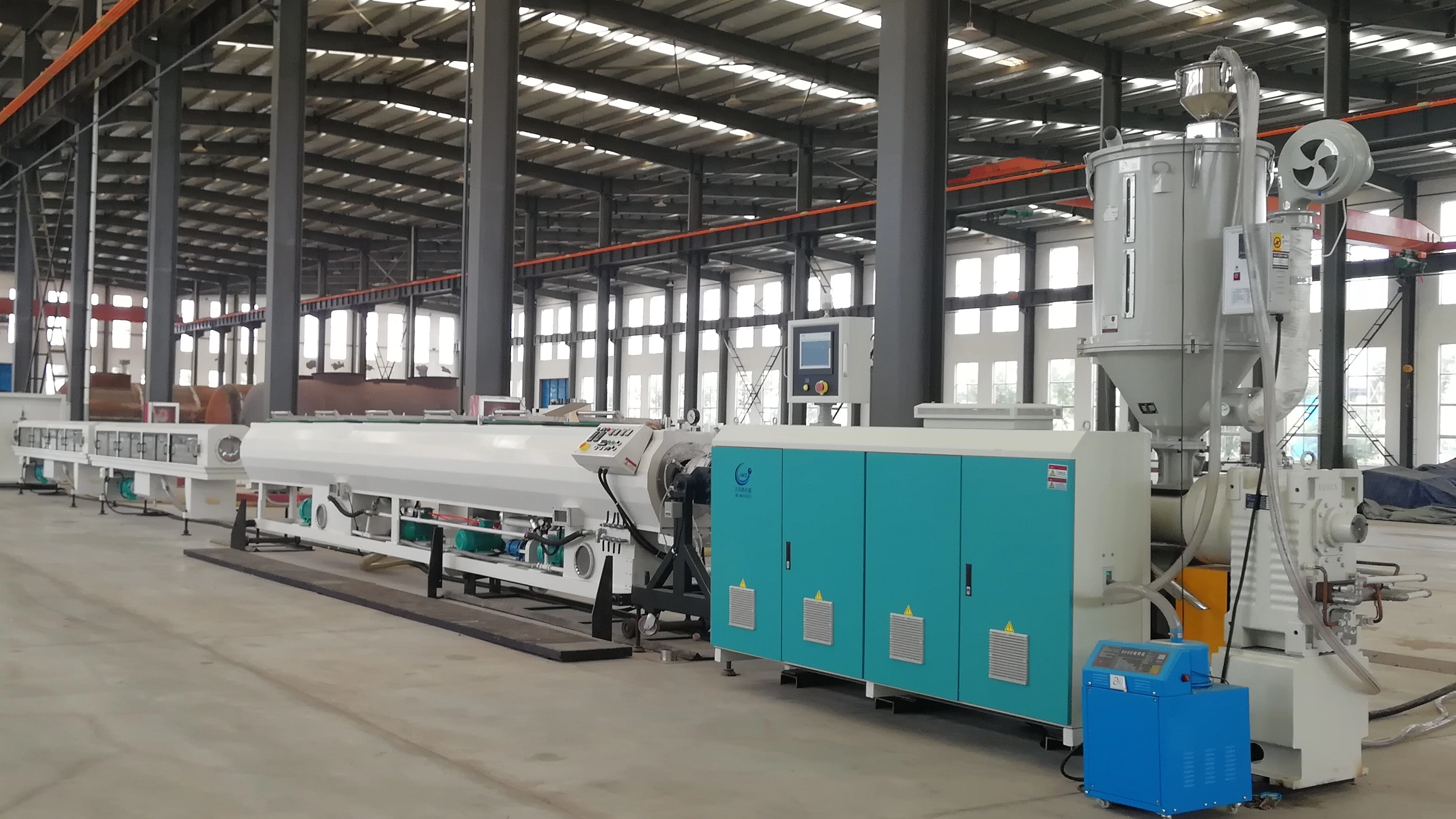

The production process integrates four key stages: inner pipe extrusion molding, continuous winding of the composite tape, outer pipe extrusion cladding, and cutting/warehousing — enabling seamless continuous on-line production of glass fiber reinforced tape polyethylene composite pipes. As an RTP tape winding production line manufacturer, JMG Machinery provides complete turnkey solutions from equipment design and manufacturing to installation, commissioning, and technical support.

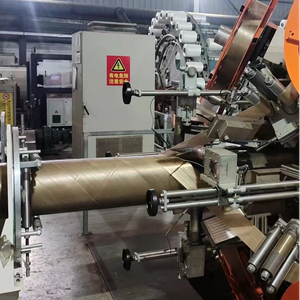

At the heart of this RTP pipe production line lies an advanced tape winding system that delivers:
Multi-station winding configuration with automatic spiral winding process for uniform tape distribution
Precision tension control ensuring consistent reinforcement layer quality
Automatic winding angle tracking synchronized with production line speed
Compatibility with multiple reinforcement materials — glass fiber tape, aramid tape, polyester tape, steel cord tape, and steel wire tape

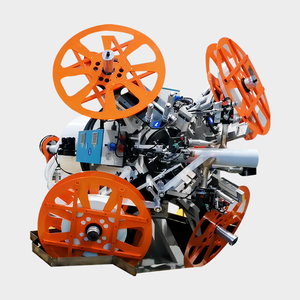

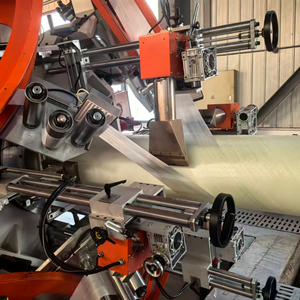

The winding disk is tilted at the same angle as the reinforcement tape winding angle, ensuring optimal fiber orientation and maximum reinforcement efficiency. This glass fiber tape winding machine incorporates closed-loop tension control and adjustable winding angles to accommodate different pressure ratings.
Patent Heating Technology (ZL201721360511.X): The unique combination of infrared and hot air heating ensures high efficiency, excellent heating effect, and stable performance, resulting in stronger reinforcement layer adhesion.
Parameter | Specification |
|---|---|
Pipe Diameter Range (ID) | 50 mm – 600 mm (2″ – 24″) |
Maximum Working Pressure | Up to 32 MPa (320 bar) |
Production Speed | 1 – 4 m/min (depends on diameter and layers) |
Reinforcement Layers | 1 – 6 layers (adjustable) |
Reinforcement Types | Glass fiber tape, aramid tape, polyester tape, steel cord tape, steel wire tape |
Winding Angle Range | ±30° – ±75° (adjustable) |
Number of Winding Spindles | 4 / 6 / 8 (optional) |
Control System | Fully automated PLC with real-time tension monitoring |
Heating Method | Infrared + hot air (patented combination) |
Tape Width | 10 – 40 mm |
Total Line Length | Approx. 110 m (adjustable based on workshop layout) |
Installed Power | Approx. 500 kW |
The RTP tape winding production line supports pipe diameters from DN50 to DN300 mm (2″ to 12″), with reinforcement layers adjustable from 1 to 6 to accommodate different pressure ratings. Our composite pipe production line delivers pipes that are corrosion-free, lightweight compared to steel, and fast to install.
RTP pipes produced on our fiberglass tape winding RTP pipe production line are ideally suited for:
Oil & Gas — High-pressure flowlines, gathering lines, transportation pipelines, onshore and offshore applications
Water Supply — High-pressure water transmission, irrigation systems, municipal water networks
Mining — Corrosive fluid handling, slurry transportation, mine drainage
Petrochemical — Chemical fluid transport, district heating, thermal pipe networks (operating temperature up to 95°C)
Geothermal & Hydrogen — Emerging energy applications
Marine — Floating hoses and offshore pipelines
With working pressures up to 32MPa (320 bar) and excellent flexibility enabling coil delivery for pipe diameters under 200mm, RTP pipes offer significant advantages over traditional steel pipes — including corrosion resistance, reduced installation costs, and long service life exceeding 20 years in corrosive environments. This reinforced thermoplastic pipe equipment produces spoolable, high-pressure RTP pipes that combine the flexibility of thermoplastics with the burst resistance of continuous fiber or steel reinforcement.
1. Versatile Material Compatibility
Our fiberglass tape winding machine supports quick changeover between different reinforcement tapes — glass fiber, aramid, polyester, and steel — for various pipe grades. The RTP tape winding production line is optimized to process the industry's most critical reinforcement materials without compromising line speed or integrity.
2. Continuous & Efficient Production
Winding and consolidation occur simultaneously — no offline curing, greatly improving productivity. The composite pipe production line delivers high-volume output with minimal downtime.
3. Precise Control System
Automatic winding angle tracking, closed-loop tension control, and PID temperature regulation ensure uniform, defect-free reinforcement layer. Full PLC control with high-level automation and remote monitoring capabilities.
4. Eco-Friendly & Recyclable
Fully thermoplastic material; pipes can be recycled at end of life, meeting circular economy requirements.
5. Customizable Solutions
Differentiated and exclusive customization according to customer's specific product requirements and production needs. Flexible production configurations — available in one-step or two-step production options.
Patented Technology — Unique one-step winding technology with proven reliability
Proven Track Record — 31+ RTP production lines installed and operating in China over the past four years — including 15 tape winding lines (metal and non-metal) and 16 rope winding lines
Customization — Each line can be tailored to your specific reinforcement materials, pipe diameters, and production capacity
Integrated Solutions — From extrusion to winding, coating, winding, and joint assembly — we cover the whole line
Comprehensive Support — R&D collaboration, installation guidance, and after-sales service
Quality Assurance — Every glass fiber tape winding RTP pipe production line is engineered to meet international standards, with rigorous quality control throughout the manufacturing process. Our lines are designed to produce pipes compliant with API 15S, API 17J, and SY/T 6662 specifications
Partner with JMG Machinery for cutting-edge RTP pipe production technology. Contact us today to discuss your project requirements. Please provide your required pipe diameter, reinforcement type, and target output, and we will send you a quotation within 24 hours.
JMG Machinery — Your trusted partner for complete RTP and composite pipe production lines.
