Metal Rope Winding RTP Pipe Production Equipment
Our Metal Rope Winding RTP Pipe Production Equipment is an advanced reinforced thermoplastic pipe machinery designed for high‑efficiency manufacturing of wire‑mesh reinforced and steel strip reinforced thermoplastic pipes. This composite pipe extrusion line integrates precision rope winding technology with stable extrusion control, producing pipes that withstand high pressure, corrosion, and long‑term fatigue – ideal for challenging oil, gas, mining, and municipal projects.

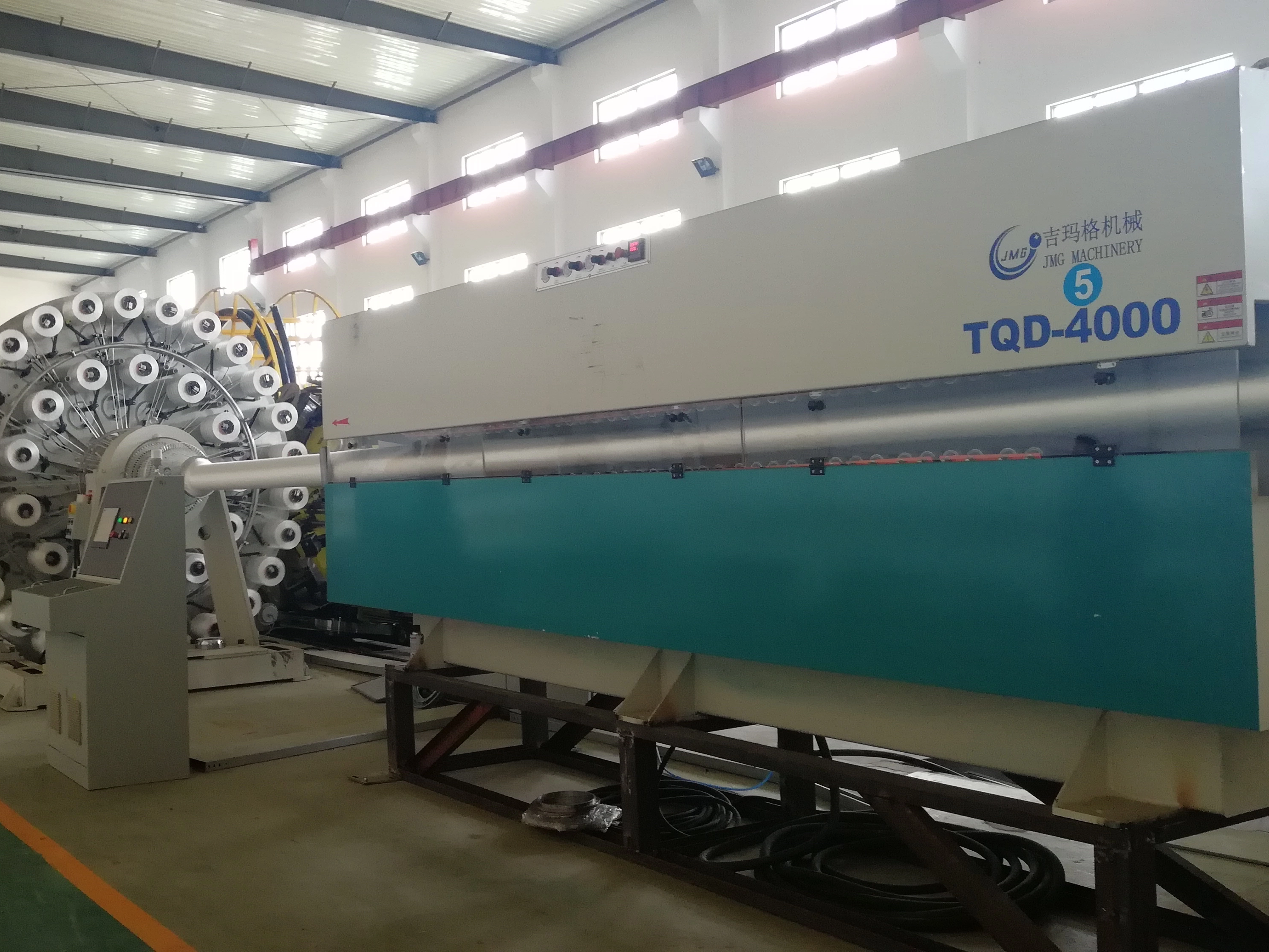

The complete line covers unwinding, extrusion, winding, cooling, cutting, and automatic coiling. Every module is optimized for 24/7 continuous operation, meeting ISO and CE standards.

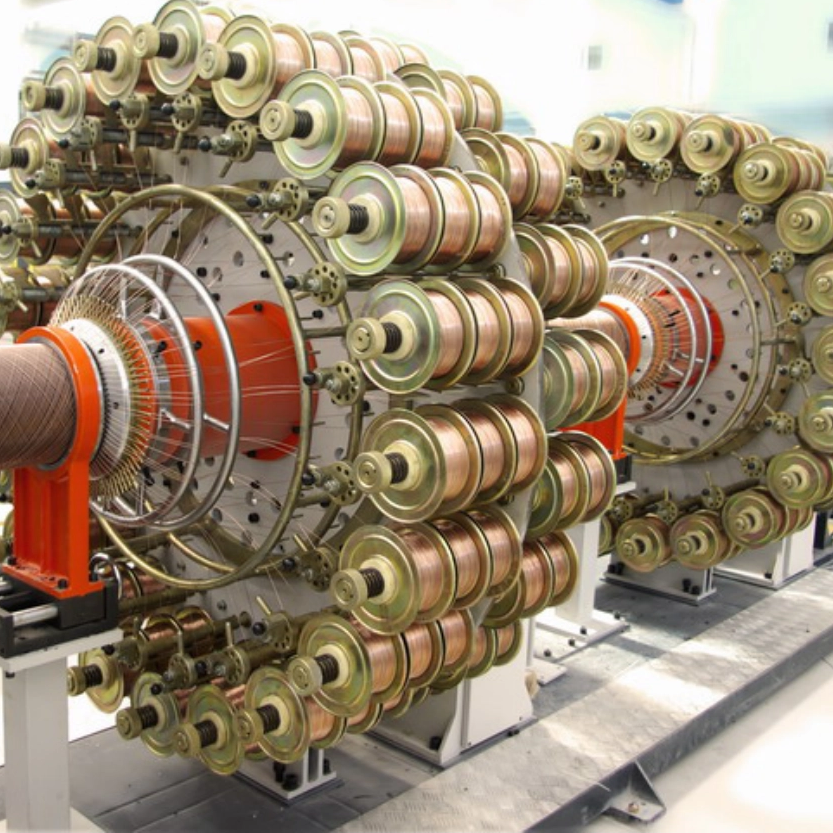

High‑precision metal rope winding – Multiple independent tension‑controlled pay‑offs ensure uniform reinforcement layer, eliminating overlaps or gaps.
Reinforced structure flexibility – Capable of winding steel wire, aramid belt, or glass fiber rovings to produce single‑ or multi‑layer RTP pipes (DN50–DN300 mm).

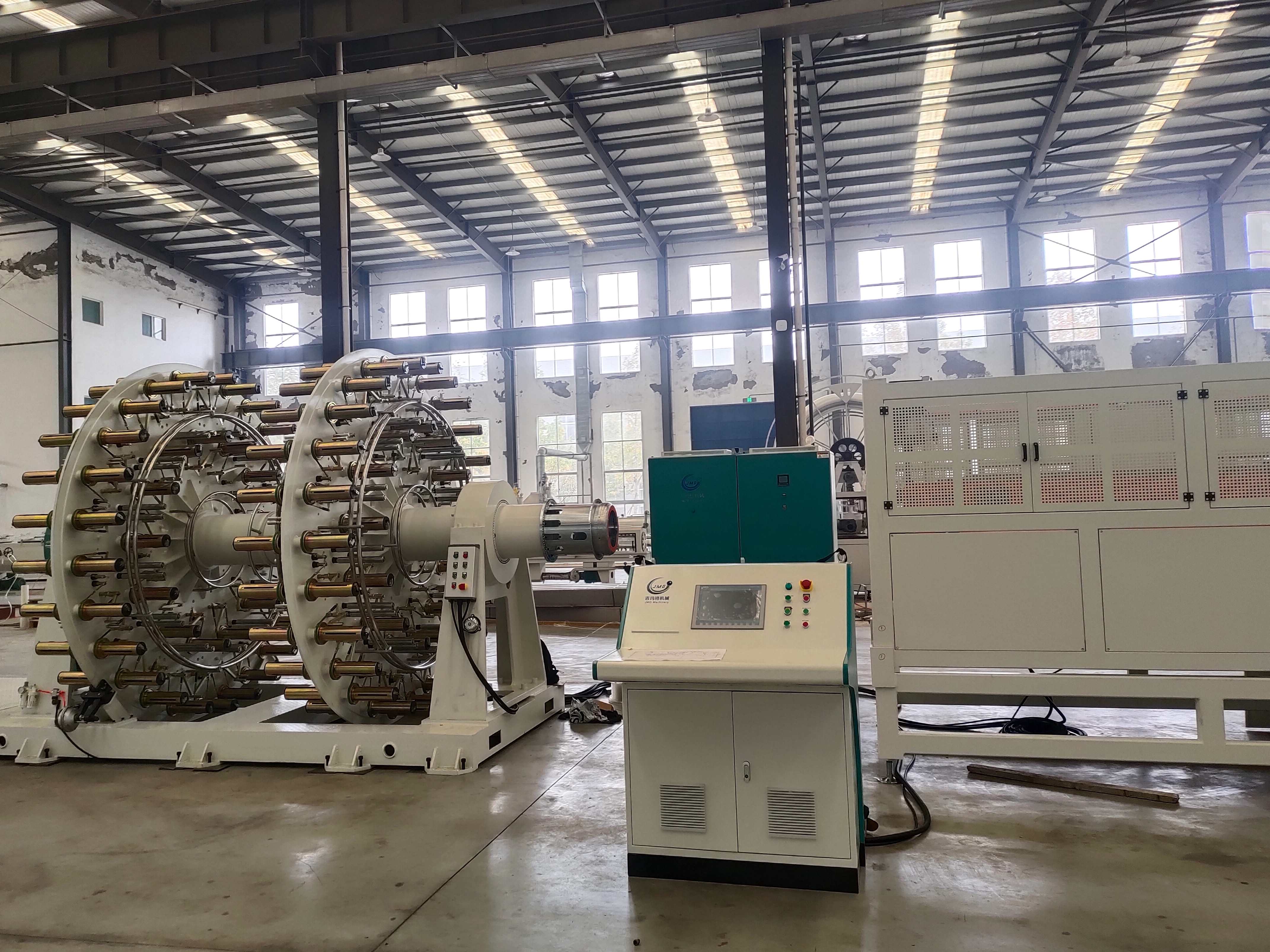

Intelligent tension control system – Real‑time monitoring and adjustment prevents wire breakage or waviness, guaranteeing consistent burst pressure.
Energy‑saving extrusion unit – High‑torque AC motor with heat‑profile regulation reduces energy consumption by up to 15%.
Quick‑change die head – Reduces production downtime for size changes (20–30 min).

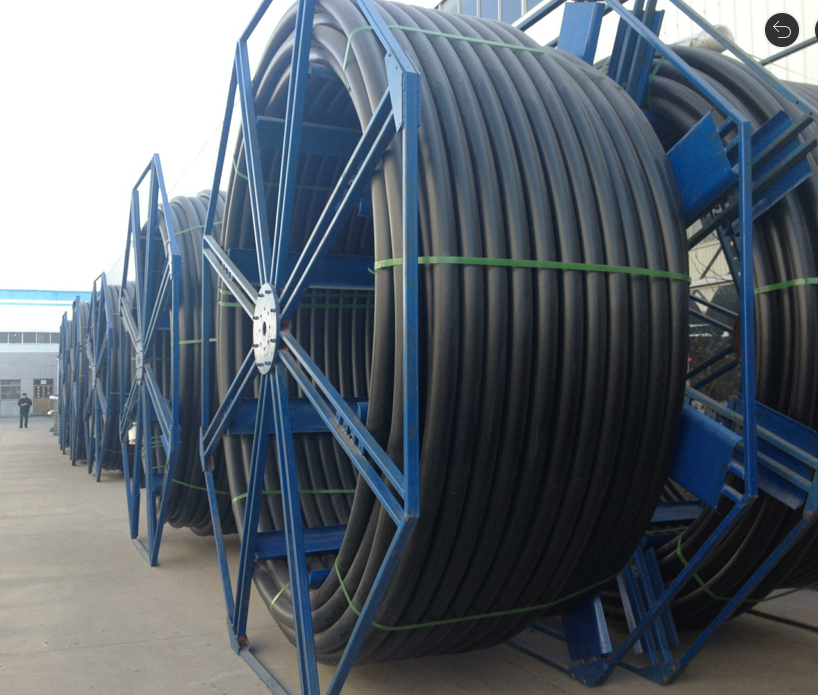

Automatic coiler & cutter – Syncs with line speed for precise length cutting and tidy coils.
Parameter | Value Range |
|---|---|
Pipe diameter range | 50 – 300 mm (2″ – 12″) |
Reinforcement layers | 1 – 6 (adjustable) |
Max winding speed | 40 m/min |
Extrusion output | 350 – 600 kg/h (depends on size) |
Wire diameter | 0.8 – 3.0 mm (steel) |
Main motor power | 110 – 220 kW |
Line length (approx.) | 35 – 55 m |
Working pressure | Up to 32 MPa (depending on construction) |
Customized specifications available upon request.
The pipes produced by this RTP pipe production equipment are widely used in:
Oil & gas gathering and transmission – high pressure resistance and flexibility reduce joint needs.
Mining – slurry and dewatering lines, excellent abrasion and corrosion resistance.
Municipal water supply & sewerage – long service life and low friction loss.
Hot spring & district heating – heat‑resistant thermoplastic liner.
Deep geothermal wells – withstand cyclic pressure loads.
Industrial chemical transfer – acid/alkali resistant options available.
17+ years in reinforced thermoplastic pipe machinery design and manufacturing.
On‑site commissioning and technician training included.
Global spares support – 95% of consumables delivered within 72 hours.
CE, ISO 9001:2015 certified equipment.
Tailored solutions – from stand‑alone extruders to full composite pipe extrusion line with downstream automation.
Interested in upgrading your RTP production capacity? Fill out the form below with your required pipe size, pressure rating, and output (kg/h). Our engineers will recommend the best metal rope winding RTP pipe production equipment configuration for your plant.
