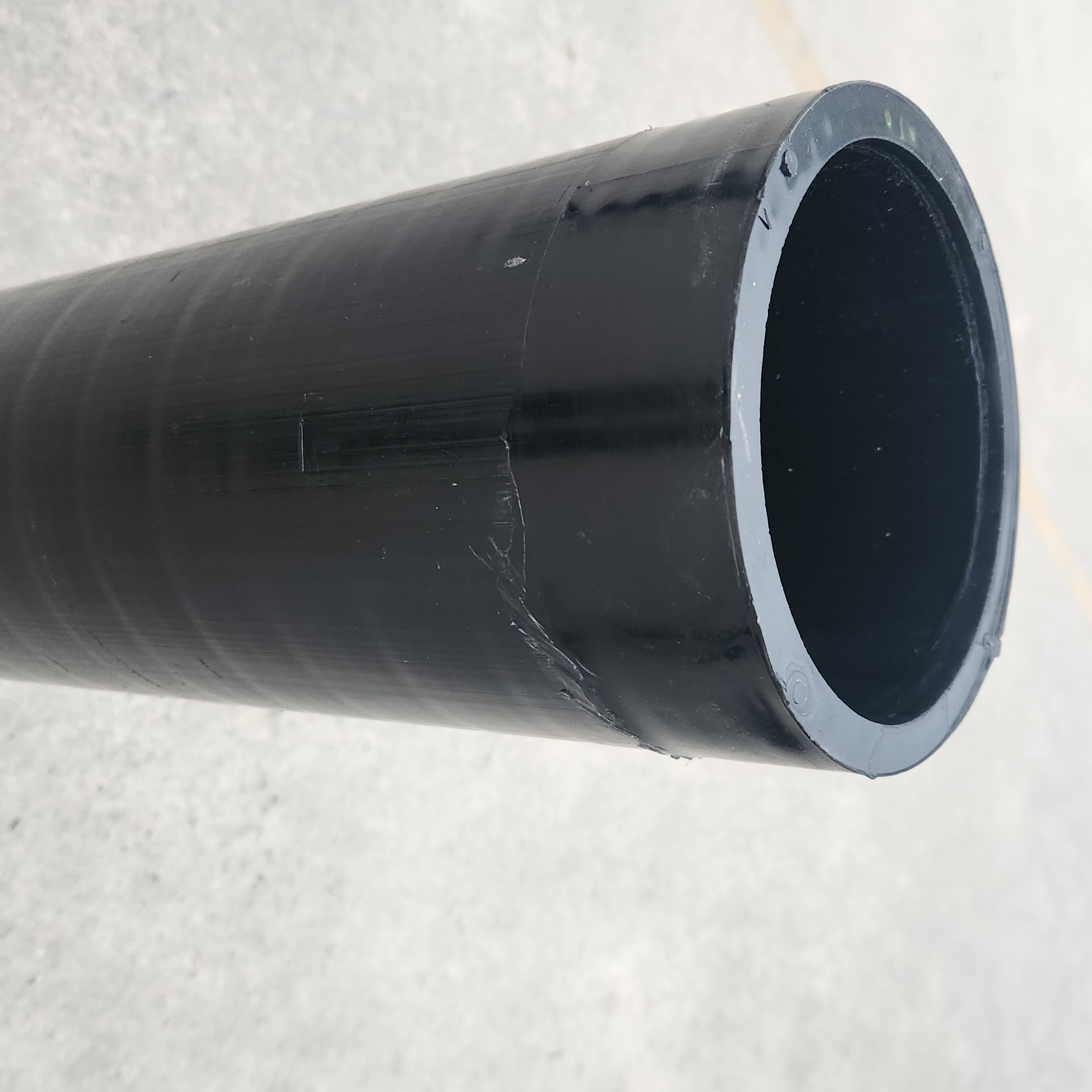

The High Efficiency Extruder from JMG Machinery is a single screw extruder specifically engineered for high‑speed extrusion of HDPE, PP, PVC and other olefin pipes. It serves as the core driver for HDPE pipe extrusion lines, PP pipe production lines, and PVC pipe manufacturing systems. This pipe extrusion equipment excels in producing reinforced pipes such as glass fiber tape winding pipe, aramid belt winding pipe, and steel strip winding pipe, making it an indispensable part of any reinforced pipe winding production line.
Covering pipe diameters from OD20 to OD630 mm and delivering output capacities between 400 and 1200 kg/h, the high efficiency extruder handles everything from small‑diameter water pipes to large‑scale industrial pipelines. The optimized screw geometry and high‑efficiency drive system significantly reduce melt temperature rise while increasing output, lowering energy consumption and extending machine life.
Model | Pipe Range | Extruder | Output Capacity (kg/h) |
|---|---|---|---|
JMGPE63 | OD20-OD63 | JMGPE60/38 | 400 |
JMGPE160 | OD50-OD160 | JMGPE60/38 | 450 |
JMGPE250 | OD75-OD250 | JMGPE75/38 | 650 |
JMGPE500 | OD160-OD500 | JMGPE90/38 | 900 |
JMGPE630 | OD315-OD630 | JMGPE120/38 | 1200 |
The platform is designed for material flexibility – the same PE extruder can be quickly converted into a PP extruder or PVC extruder by changing the screw and barrel. Advanced temperature control and a stable AC drive ensure homogeneous plasticization and consistent pressure even during 24/7 continuous operation.
Key applications include: hot spring water transport pipelines, secondary networks for central heating, deep geothermal heat exchange pipes, oil field gathering lines, and chemical media transfer lines. When integrated into a HDPE pipe extrusion line, this high efficiency extruder boosts overall line productivity by 15‑20% while improving yield.
High output, low energy consumption – Advanced screw geometry ensures high plastifying capacity while reducing energy cost.
Wide material compatibility – Process HDPE, PP, PVC, and other olefin materials with quick screw changeover.
Robust construction – Hardened and nitrided screw & barrel for extended service life.

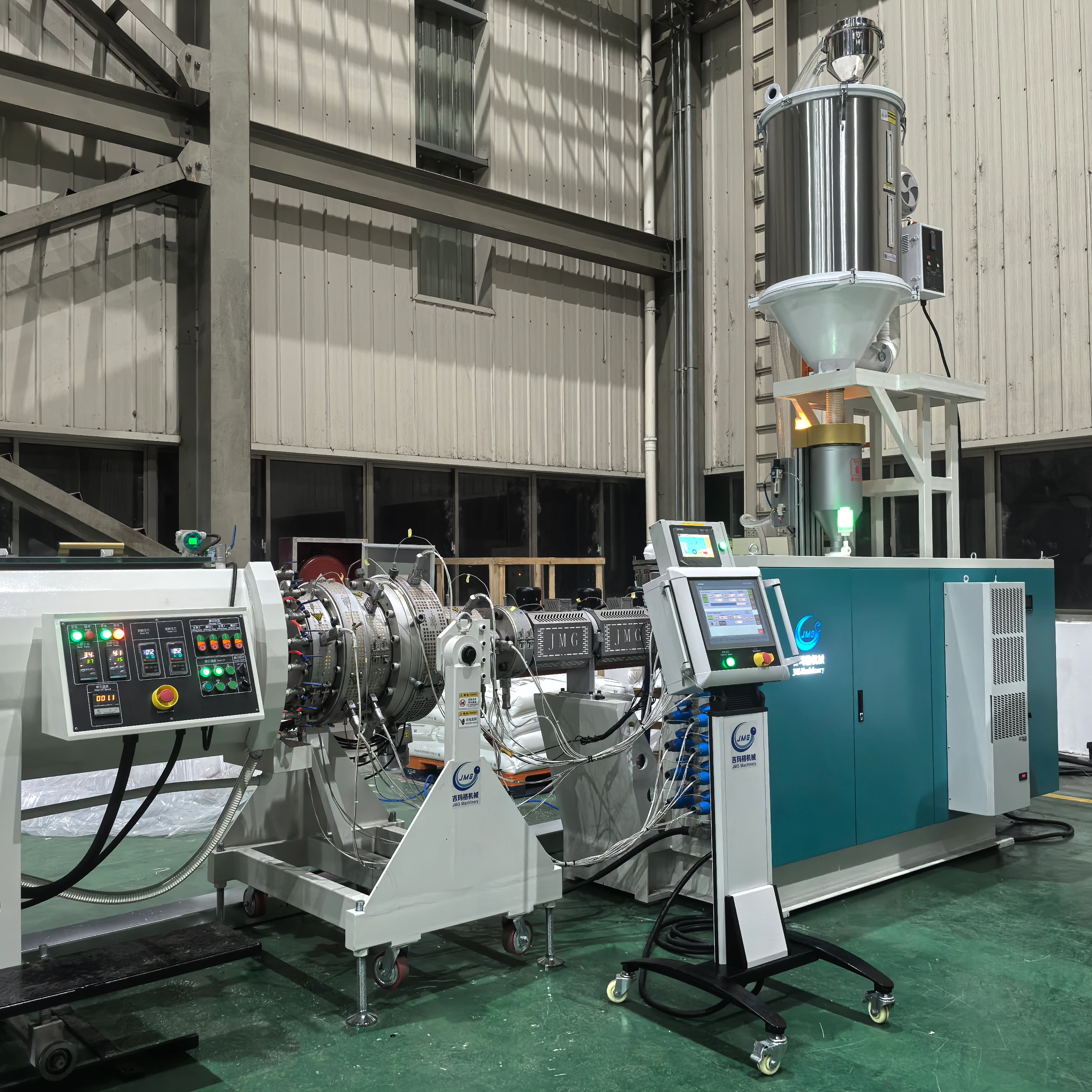

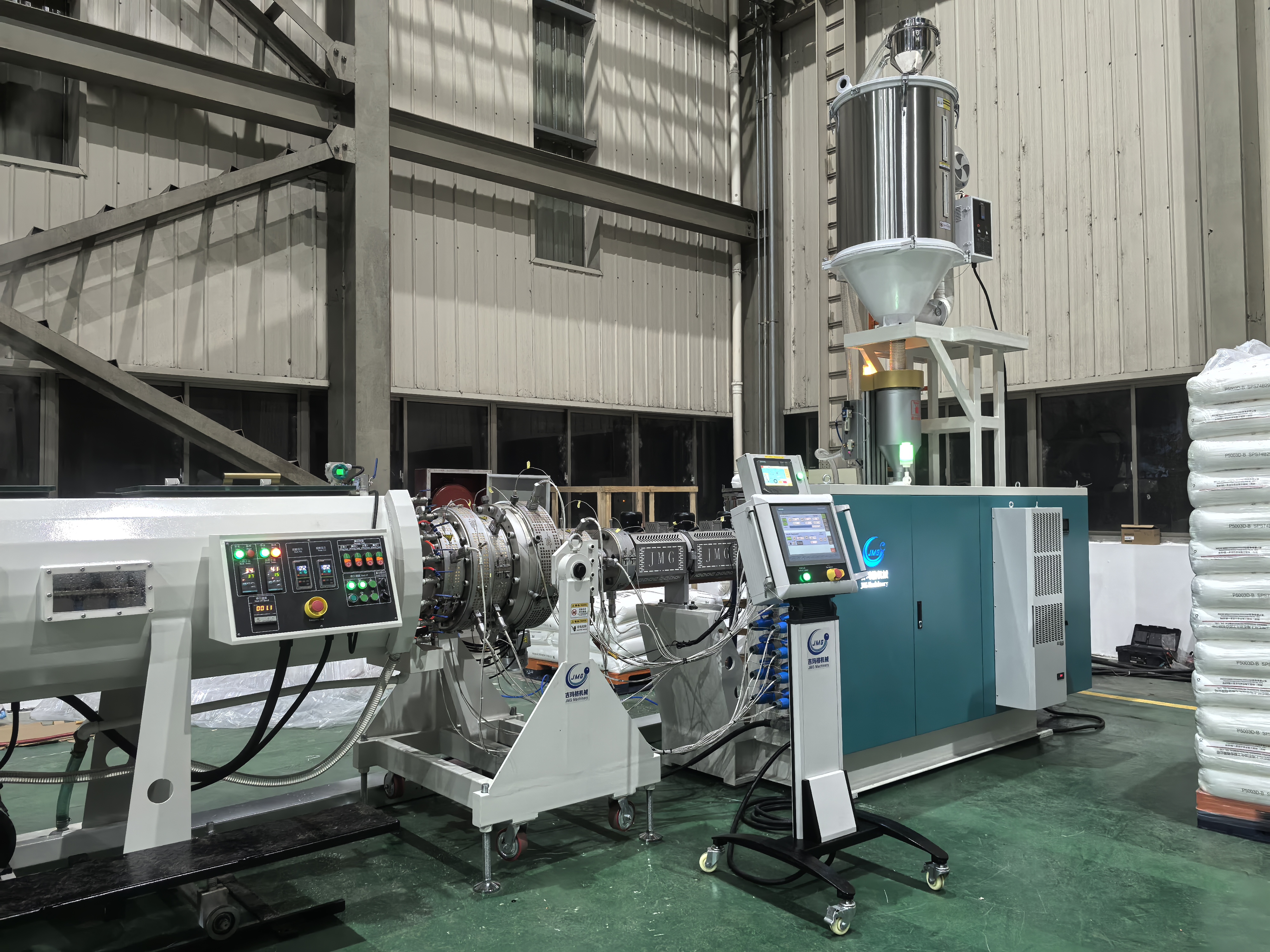

User-friendly control – PLC with HMI touch screen, accurate temperature control, and safety interlock.
Whether you are building a new pipe extrusion equipment line or upgrading an existing one, this extruder integrates seamlessly. As the preferred power source for glass fiber tape winding pipe lines, the extruder is widely recognized for its high torque, low energy consumption, and easy maintenance.
