Reinforced Thermoplastic Pipes (RTP) have emerged as a transformative alternative to conventional steel pipelines across oil & gas, municipal water, mining, and chemical industries. By combining a high-performance thermoplastic liner with continuous fiber reinforcement, RTP pipes deliver pressure-bearing capability comparable to steel while remaining flexible, corrosion-free, and significantly lighter. The global RTP market reflects this momentum: valued at USD 1,316 million in 2025, it is projected to reach USD 2,438 million by 2033, growing at a CAGR of 8.0%. The broader RTP and Thermoplastic Composite Pipe (TCP) segment, already valued at approximately USD 5.33–5.58 billion in 2024–2025, is expected to reach USD 7.36–7.67 billion by 2031–2032.
Behind every spool of high-performance RTP pipe lies a precision-engineered production line. The fiberglass tape winding RTP pipe production line has become the industry benchmark for manufacturing these composite pipes with consistent quality, high throughput, and fully automated control.
Glass Fiber Reinforced Thermoplastic Pipe (RTP) is a composite pipe product that uses glass fiber tape as the reinforcement and thermoplastic resin as the matrix. The pipe structure consists of three bonded layers:
Inner Liner Layer — A thermoplastic layer (typically PE80 or PE100 grade HDPE) serving as the primary fluid barrier, offering excellent chemical resistance and a smooth flow surface.
Reinforcing Core Layer — One or more layers of spirally wound high-strength glass fiber tape, applied at precisely controlled angles and tensions to bear hoop and axial stresses.
Outer Protective Layer — An HDPE outer sheath with UV and aging inhibitors, protecting the reinforcement layer from environmental degradation.
In fully bonded RTP construction, all three layers are melt-fused into an integrated structure, preventing permeation and liner collapse while ensuring reliable long-term performance.
The core manufacturing process involves precision winding equipment that spirally wraps pre-impregnated glass fiber tape around the inner pipe surface at controlled angles and tensions, followed by outer layer extrusion cladding. This continuous online production methodology spans four key stages: inner pipe extrusion and shaping → continuous composite tape winding → outer pipe extrusion cladding → cutting and warehousing.

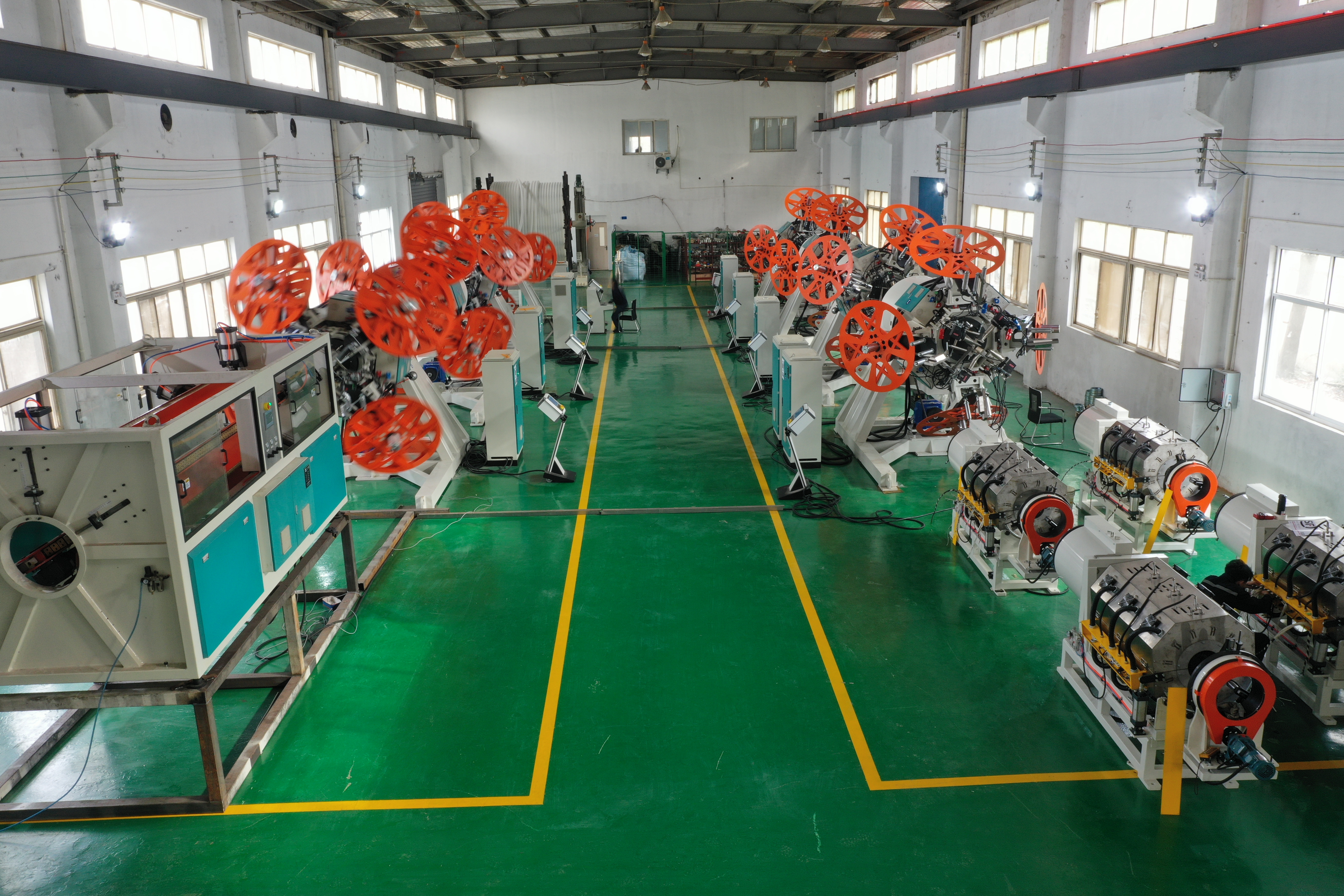

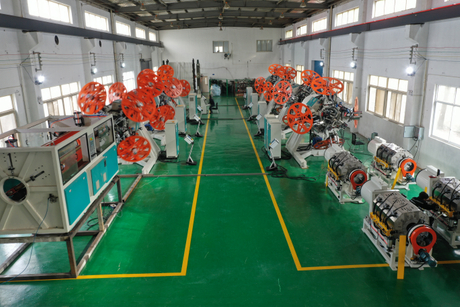

A complete fiberglass tape winding RTP pipe production line integrates the following core modules in a seamless, continuous flow:
Inner Pipe Extrusion System — High-efficiency extruders with precision die heads form the thermoplastic inner liner with exact dimensional control and a smooth internal surface.
Vacuum Sizing & Cooling — Vacuum calibration tanks and spray cooling systems ensure uniform wall thickness and roundness.
Multi-Stage Winding Units — The heart of the line. Multi-axis synchronized CNC winding stations apply pre-impregnated glass fiber tape at programmable angles and tensions. Hot air nozzles heat the winding point for in-situ consolidation, fusing the tape with the inner pipe to form the reinforcement core without post-curing.
Outer Pipe Extrusion & Cladding — A second extruder applies the outer protective layer over the reinforcement structure.
Cooling, Traction & Cutting — Final cooling, caterpillar haul-off, and planetary cutting systems deliver finished pipe in specified lengths or continuous coils.
This fully continuous process eliminates the inefficiencies of batch production, enabling 24/7 operation with consistent product quality.
The winding system determines the mechanical performance of the finished RTP pipe. Modern production lines employ advanced tension-controlled winding systems with the following capabilities:
Precision Tension and Angle Control — Closed-loop tension monitoring with constant tension automatic control ensures uniform reinforcement layer thickness and fiber orientation accuracy. Winding tension ranges from 1 to 100 kg, with adjustable winding angles from 0 to 90 degrees. Winding accuracy reaches ±0.2 mm through multi-axis synchronized CNC systems.
Multi-Material Compatibility — A single line can process fiberglass tape, aramid tape (Kevlar), polyester tape, steel cord tape, and steel wire tape, enabling manufacturers to tailor pipe properties to specific applications without sacrificing line speed or product integrity.
In-Situ Consolidation — Pre-impregnated unidirectional (UD) tape winding with hot air heating at the winding point achieves simultaneous winding and fusion. This breakthrough eliminates offline curing steps, dramatically improving productivity while ensuring superior interlayer bonding strength.
Network Structure Between Layers — Different bandwidth matching schemes create a network structure between reinforcement layers, significantly improving interlayer bonding strength and overall pressure resistance.
The winding disk is tilted at the same angle as the reinforcement tape winding angle, ensuring optimal fiber orientation and maximum reinforcement efficiency.
Parameter | Standard Series | Big Dia Series |
|---|---|---|
Pipe Outer Diameter | 50 – 600 mm | 600 – 1000 mm (ID) |
Reinforcement Layers | 1 – 6 layers | Configurable |
Max Working Pressure | 30 MPa (300 bar) | Up to 32 MPa (320 bar) |
Winding Spindles | 4 / 6 / 8 (optional) | Multi-station |
Winding Angle Range | ±30° ~ ±75° (adjustable) | ±30° ~ ±75° |
Tension Control | Servo motor + load cell, 1–100 kg | Closed-loop automatic |
Tape Width | 10 – 40 mm | Configurable |
Line Speed | 0.5 – 4 m/min | Application-dependent |
Standard working pressures for RTP pipes typically range from 750 psi to over 3,000 psi, with maximum design pressures reaching 32 MPa (4,640 psi). Burst pressures can exceed 100 MPa (14,500 psi). Temperature ratings typically span -42°C to +135°C, making RTP suitable for a wide range of production environments.
The advantages of RTP pipes over conventional carbon steel are compelling and well-documented:
Corrosion Resistance — RTP eliminates the leading cause of metallic pipe failure: corrosion. This translates to a service life exceeding 20 years in corrosive environments.
Significant Cost Savings — From a full life-cycle perspective, RTP pipelines can save more than 25% of total costs compared to steel alternatives.
Rapid Installation — The flexibility of thermoplastic pipes allows them to be spooled even at large diameters, enabling installation speeds approaching 1,000 meters per day and eliminating the need for side booms, expansion loops, and specialized welding.
Lightweight & Flexible — RTP pipes absorb shocks better than steel, accommodate ground movement, and require far less heavy lifting equipment on site.
Superior Flow Characteristics — Low internal friction coefficient ensures better flow assurance and reduced pumping energy requirements.
These advantages are driving adoption across critical applications including high-pressure oil & gas flowlines, sour gas gathering, water injection systems, geothermal energy development, hydrogen transmission, and offshore risers.
High-quality RTP production must comply with rigorous international standards. Key specifications include:
API 15S — The internationally recognized standard for spoolable reinforced plastic line pipe, covering material properties, pressure ratings, safety factors, and minimum performance requirements. The latest 3rd edition (released Q2 2022) expanded coverage to more general types of spoolable plastic line pipes.
API Q1 — Quality management system requirements for manufacturing organizations.
ISO 9001:2015 — International quality management standard.
DNV-ST-F119 — Offshore and subsea RTP application guidelines.
API 17J — Specification for unbonded flexible pipe for offshore applications.
SY/T 6662 — Chinese oil & gas industry standard for flexible composite pipes.
Production lines must be engineered to meet these standards, with rigorous quality control throughout the manufacturing process. The API Monogram qualification testing and API Specification 15S compliance are essential for RTP products destined for oil & gas service, particularly in offshore applications where DNV-ST-F119 adds additional testing requirements.
The versatility of the fiberglass tape winding RTP production line extends to emerging energy applications. RTP pipes are increasingly being evaluated and deployed for hydrogen transport, leveraging their high chemical resistance, durability, flexibility, and cost-effectiveness. Hydrogen permeation testing of RTP technology has demonstrated promising compatibility for expanding the fluid envelope to hydrogen service. Some RTP systems have already achieved certification for hydrogen applications, positioning fiberglass-reinforced RTP as a key enabler for green hydrogen distribution infrastructure.
Beyond hydrogen, RTP production lines support geothermal pipeline systems, deep-water offshore flowlines, and large-bore municipal water transmission networks.
Selecting a fiberglass tape winding RTP pipe production line involves evaluating several critical factors:
Turnkey Capability — The ideal partner provides complete solutions spanning equipment design, manufacturing, installation, commissioning, and technical support. This ensures seamless integration from extrusion through winding, coating, and joint assembly.
Patented and Proven Technology — Production lines should incorporate patented technologies that improve efficiency and product consistency. For example, one-step integrated production processes with precise tension control eliminate the inefficiencies of traditional two-step processes that require repeated uncoiling and reel transportation.
Production Flexibility — The line should support one-step or two-step production options, customizable pipe diameters, and multi-layer co-extrusion capability for enhanced pipe performance.
Intelligent Automation — Fully automated PLC control systems with intuitive human-machine interfaces enable centralized monitoring, real-time tension monitoring, and intelligent adjustment of all operating parameters, significantly reducing operational complexity and boosting productivity.
Track Record and Market Presence — A manufacturer's installed base and client references provide confidence in equipment reliability and after-sales support. Established manufacturers have installed dozens of RTP production lines across oil & gas, geothermal, central heating, and hydrogen transmission applications.
The fiberglass tape winding RTP pipe production line represents the convergence of advanced composite materials science, precision automation, and continuous manufacturing engineering. As global demand for corrosion-resistant, cost-effective pipeline solutions accelerates — driven by oil & gas development, municipal water infrastructure, and the emerging hydrogen economy — the ability to produce high-quality RTP pipes at scale becomes a strategic advantage.
Manufacturers seeking to enter or expand in the RTP market should prioritize production line partners with proven technology, full turnkey delivery capability, and a track record of compliance with API 15S, API Q1, and related international standards. With the right production line, glass fiber reinforced RTP pipes can be manufactured at working pressures up to 32 MPa, with burst pressures exceeding four times the nominal rating, delivering reliable performance across the most demanding applications.
