Reinforced thermoplastic pipe (RTP) and thermoplastic composite pipe (TCP) are often discussed in the same breath, but they occupy different performance envelopes. Understanding that distinction is the starting point for specifying the right production technology—and for recognizing where a continuous glass-fiber tape winding line with in-situ consolidation fits into the value chain.
RTP vs. TCP: Similar Architecture, Different Bonding Philosophy
Both pipe families share a three-layer architecture: a thermoplastic inner liner, a fiber-reinforcement layer, and a thermoplastic outer jacket. The critical divergence lies in how those layers interact. Conventional RTP typically relies on an unbonded or semi-bonded reinforcement, which keeps the pipe flexible and spoolable but limits pressure containment. TCP, by contrast, is a fully bonded, monolithic structure: the reinforcement tapes are melt-fused to the liner and to each other, eliminating discrete interfaces and creating a continuous composite matrix.
That structural difference translates directly into pressure ratings. RTP is generally deployed in the 30–150 bar range, with heavy-duty variants reaching approximately 450 bar. Fully bonded TCP is qualified to pressures up to 689 bar (10,000 psi), an order of magnitude higher, and is engineered for high-temperature, harsh-environment service where delamination risk cannot be tolerated. For manufacturers targeting both tiers, the production line must be capable of delivering true in-situ consolidation—not merely winding and subsequent curing.
The Process Core: Winding and Consolidation in a Single Pass

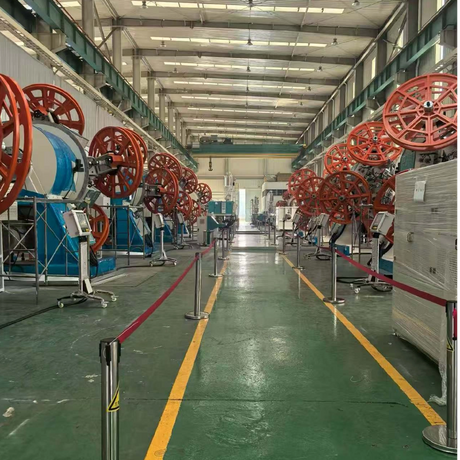

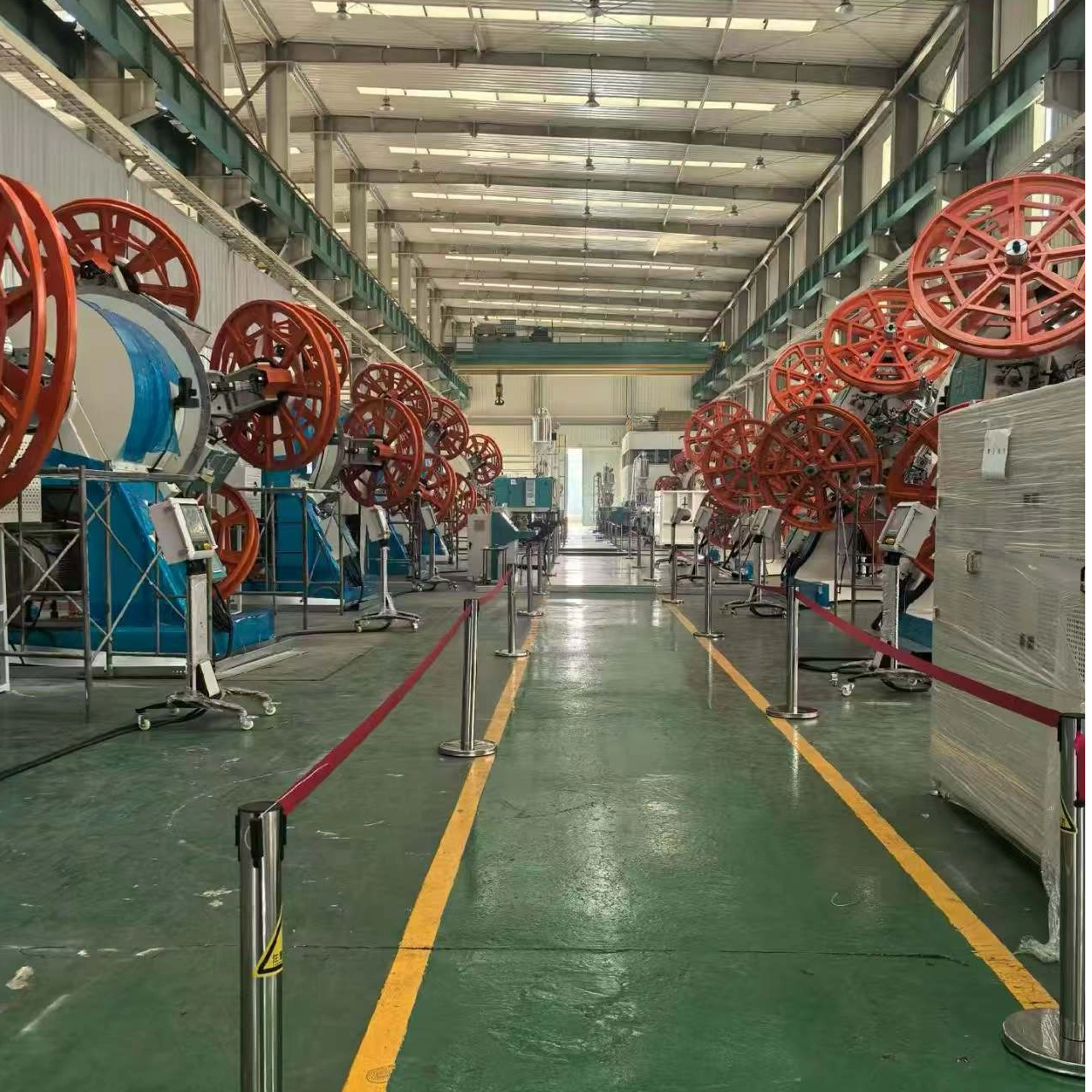

The JMG continuous glass fiber tape winding line is built around a pre-impregnated unidirectional (UD) tape winding and in-situ consolidation workflow. A single- or twin-screw extruder forms the thermoplastic inner liner (PE, PP, PERT, or PA) through a die. The liner then enters a 4-spindle, 6-spindle, or 8-spindle winding unit, where glass fiber UD tape is applied at programmable winding angles—typically adjustable from ±30° to ±75°, with the product page specifying ±45° to ±60° as the standard operating window—under closed-loop tension control.
What distinguishes this line from conventional winding equipment is what happens at the nip point. Hot-air nozzles heat the winding interface while the tape is being laid down, achieving simultaneous winding and fusion without a post-cure oven. This in-situ consolidation step is the enabler for a fully bonded TCP structure: the thermoplastic matrix in the tape melts and co-mingles with the liner surface, and subsequent interlaced layers fuse into a void-free reinforcement core. The absence of an offline curing stage also compresses cycle time and reduces floor-space and energy overhead.
A second extruder then applies the outer protective layer—formulated for abrasion resistance, UV stability, or flame retardancy as required—before the pipe passes through vacuum sizing, spray cooling, caterpillar haul-off, and chip-less cutting. Line speed is diameter- and layer-dependent, ranging from 0.5 to 4 m/min, with reinforcement thickness from 1.2 to 6 mm and outer diameters from 50 to 600 mm.
Precision Control as a Prerequisite for TCP-Grade Quality
The mechanical integrity of a bonded TCP depends on two variables that cannot be allowed to drift: winding angle and tape tension. Angle determines the balance between hoop and axial strength; tension governs fiber volume fraction and void content. The line addresses both through servo-driven tension control with load-cell feedback and closed-loop automatic adjustment, alongside PID-regulated temperature control at the consolidation point. Automatic winding-angle tracking ensures that the programmed lay-up is reproduced uniformly across the full pipe length, which is particularly important for multi-layer interlaced structures where a single off-angle layer can become the weak link in pressure containment.
Material flexibility is also a practical requirement. The same winding platform accommodates glass fiber UD tape, aramid tape, steel cord tape, and steel tape, allowing a manufacturer to move between RTP-grade and TCP-grade products—or between cost-driven and performance-driven reinforcement strategies—with rapid changeover rather than a dedicated line per product family.
Quality Assurance and the Path to API 15S Qualification
A production line that can make a bonded structure is necessary but not sufficient; the pipe must also be demonstrably qualifiable. API Specification 15S, Spoolable Reinforced Plastic Line Pipe, provides the governing framework for material properties, pressure ratings, safety factors, and long-term performance validation, and its scope includes both bonded and unbonded spoolable pipe constructions. Qualification under API 15S involves regression analysis of time-dependent mechanical properties, short-term breaking load testing, and tensile testing per referenced ASTM methods.
On the manufacturing side, the line’s control architecture—real-time tension monitoring, closed-loop temperature regulation, and programmable winding parameters—generates the process traceability that qualification audits demand. For operations targeting more demanding service, non-destructive inspection stations can be integrated into continuous winding processes to flag defect regions as they are generated, supporting a layer-by-layer quality record rather than an end-of-line pass/fail judgment.
Where Bonded TCP Delivers Its Advantage
The application logic follows directly from the bonding structure. In oil and gas, fully bonded TCP is specified for high-pressure onshore gathering lines, offshore flowlines, jumpers, and risers, where resistance to fatigue and collapse—Strohm’s TCP, for example, is rated for collapse resistance to 3,000 m water depth—and corrosion resistance are decisive. The pipe’s spoolability in long continuous lengths reduces installation cost by minimizing field joints, while the absence of metallic reinforcement in the all-composite construction eliminates a corrosion pathway.
Beyond hydrocarbon service, the line’s compatibility with PE, PP, PERT, and PA liners, combined with operating temperatures up to 95°C, opens municipal high-pressure water and fire-water networks, chemical corrosive-media transfer, mine backfill and slurry pipelines, and thermal pipe networks. In each case, the value proposition is the same: a corrosion-free, lighter-than-steel pipe that can be produced in continuous lengths and installed with fewer joints.
A Recycling-Ready Material Platform
The all-thermoplastic construction carries a sustainability dimension that is becoming commercially relevant. Unlike thermoset composites, which cannot be reprocessed after curing, thermoplastic RTP and TCP can be recycled at end of life. Emerging recycling routes for thermoplastic composite structures report the ability to recover and reuse tape with up to 95% of its original properties, and design-for-recycling guidelines for thermoplastics pipes are now being formalized in standards frameworks. For manufacturers and asset owners facing end-of-life stewardship requirements, a production line built entirely around thermoplastic matrices and liners is a forward-looking asset, not a stranded one.
Conclusion
The shift from RTP to fully bonded TCP is not a marketing repositioning—it is a structural change in how reinforcement layers are bonded, and it places specific demands on the production line: true in-situ consolidation, closed-loop tension and angle control, and the process traceability needed for API 15S qualification. JMG Machinery’s continuous glass fiber tape winding line is engineered around those demands, with a diameter range spanning 50–600 mm, pressure capability to 30 MPa, and multi-material reinforcement compatibility that lets a single platform serve both RTP and TCP product tiers. For composite pipe manufacturers evaluating their next capacity investment, the more instructive question is not whether the line can wind tape, but whether it can deliver a bonded structure that qualifies—and this line is configured to answer that question in the affirmative.
