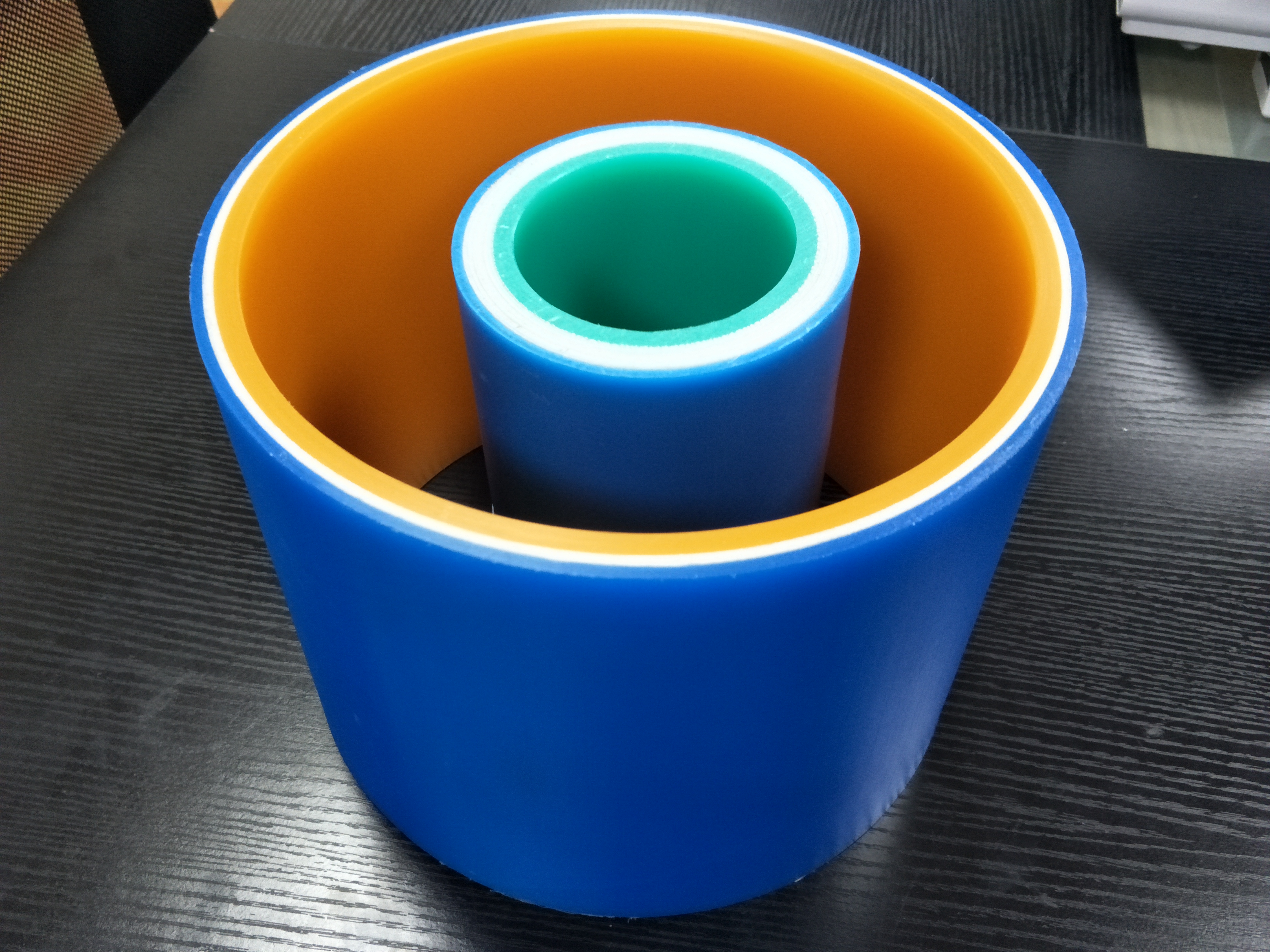

Reinforced Thermoplastic Pipe (RTP) is an advanced composite pipe consisting of three layers: an inner thermoplastic layer, a middle reinforcement layer, and an outer protective layer. The inner layer is made of materials such as polyethylene (PE), cross-linked polyethylene (PEX) or heat-resistant polyethylene (PE-RT). The reinforcement layer utilizes high-strength materials such as aramid fiber, polyester fiber, fiberglass, or steel wire, wound in crisscross patterns to form a strong mesh skeleton. The outer layer is typically high-density polyethylene (HDPE) with UV and aging resistance. This three-layer structure enables RTP pipes to achieve high pressure resistance while maintaining excellent flexibility, offering performance that traditional metal pipes cannot match.
RTP pipes are rapidly replacing traditional metal pipelines across multiple industries. Below are the core advantages:
RTP pipes can withstand operating pressures up to 32 MPa (320 bar), making them ideal for demanding oil and gas applications. Products from leading brands such as Baker Hughes offer pressure capacities of up to 3000 psi. RTPs are known for their durability and ability to withstand high-pressure environments, making them ideal for transporting oil, gas, and other fluids.
Unlike steel pipelines that are prone to rust, RTP pipes resist internal and external corrosion from acids, alkalis, salt spray, and sulfides. They are also scaling-free and maintenance-free, with a service life exceeding 20 years in highly corrosive fluids and up to 50 years under normal operating conditions.
RTP pipes are flexible, allowing them to be spooled onto reels. For pipe diameters under 200 mm, spooling is possible, dramatically simplifying transportation and handling. By eliminating welding, RTP avoids the need for heavy equipment such as side booms. Installation speeds up to 1,000 meters per day are achievable on ground surface, drastically reducing labor, time and total project costs.
RTPs weigh far less than steel, lowering transport costs and fuel consumption. Their use reduces carbon emissions by up to 75% over the product lifecycle.
RTP pipes resist strong deformation without cracking or leaking, and follow natural bends without being affected by ground settlement or environmental changes. They can absorb shocks better than steel, making them ideal for applications requiring strong resistance to mechanical shock.
Being corrosion-free and scale-free, RTP pipelines offer significantly lower overall service life costs, with maintenance cost reductions of up to 80% and full lifecycle cost savings of up to 50% in some applications. They are also highly cost-effective compared to traditional metal pipes, offering easier handling, installation, and lower maintenance costs over their lifespan.
Parameter | Value |
|---|---|
Operating Pressure | Up to 32 MPa (320 bar) |
Temperature Range | -42°C to +135°C |
Diameter Range | 50–200 mm (spoolable up to 200 mm) |
Continuous Length | Up to 1,200 m per coil |
Service Life | 20+ years (corrosive media) / 50 years (normal conditions) |
Reinforcement Materials | Aramid fiber, polyester fiber, glass fiber, steel wire |
Inner Liner Materials | PE80, PE100, PA, PE-RT, PVDF |
Outer Jacket | HDPE with UV and anti-aging agents |
Oil and gas field surface gathering, water injection, oil extraction
High-pressure alcohol injection, slurry transportation
Medium-to-deep geothermal energy extraction
Chemical medium and brine transportation
Offshore pipelines, risers, and jumpers
Hydrogen transportation and CO₂ storage (CCUS)
Urban underground pipeline infrastructure
Mining, water treatment, irrigation systems
