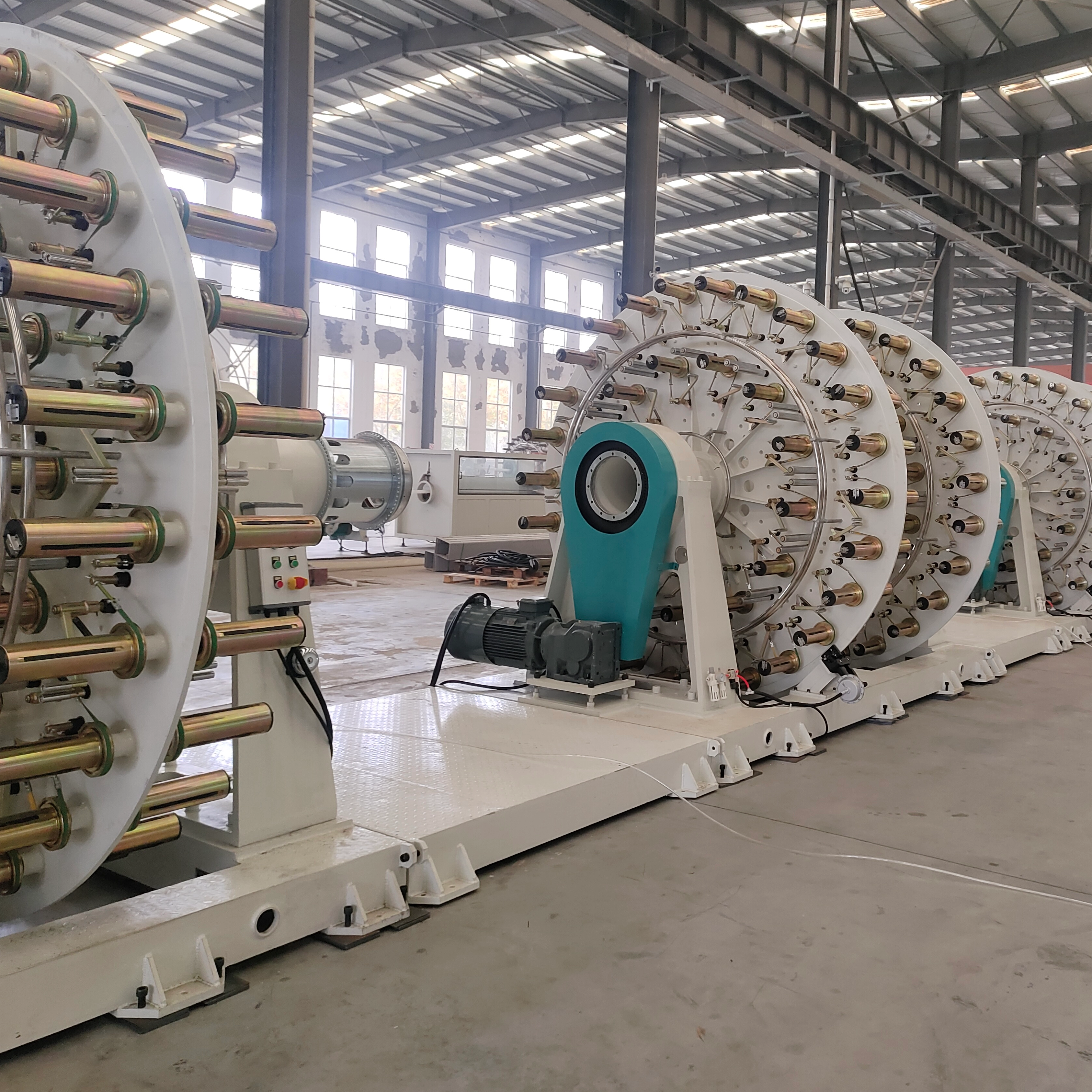

Non-metal Rope Winding RTP Pipe Production Equipment

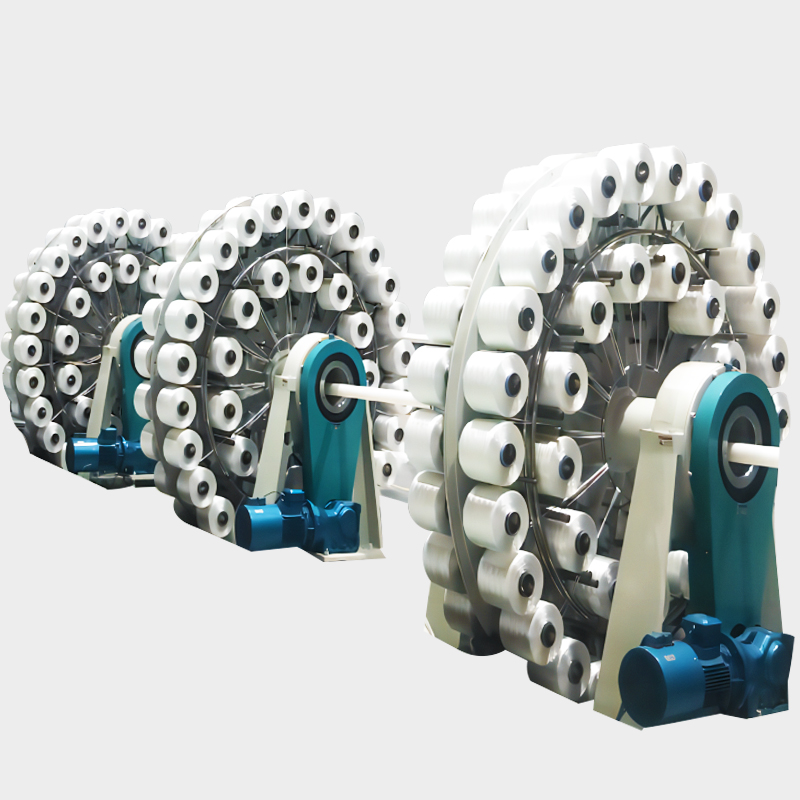

JMG Machinery's non-metal rope winding RTP pipe production equipment is designed for manufacturing high-performance reinforced thermoplastic pipes. The production line is primarily used for polyester wire winding reinforced pipes, aramid tape winding reinforced pipes, and various rope bundle winding reinforced pipes.

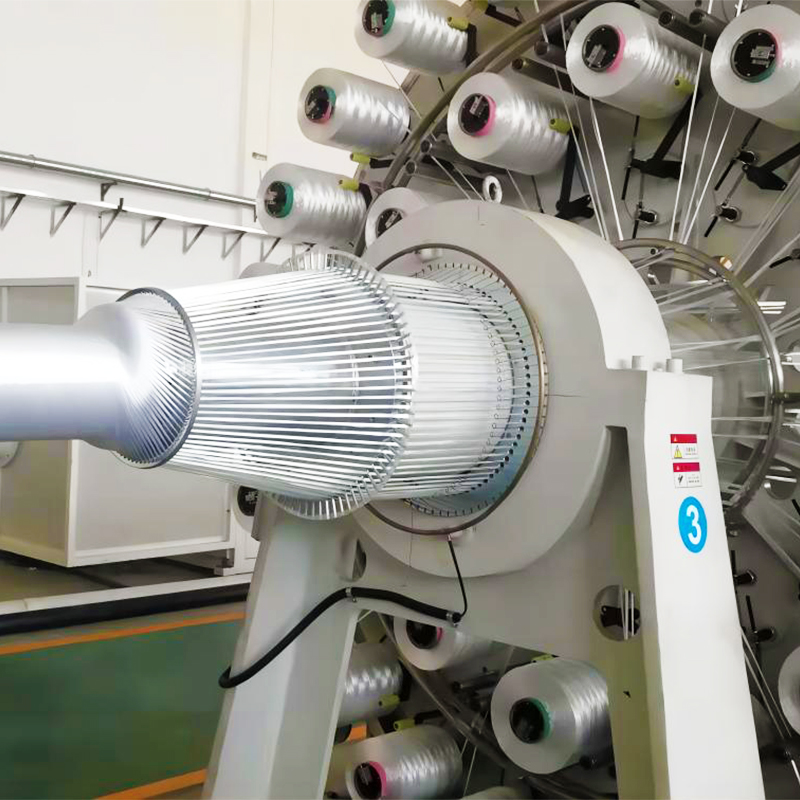

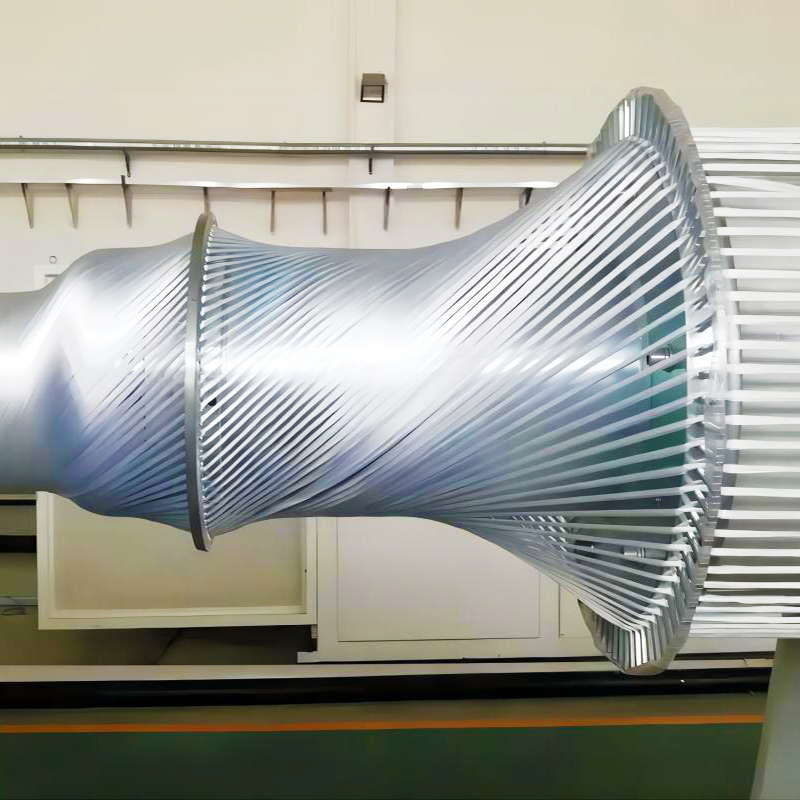

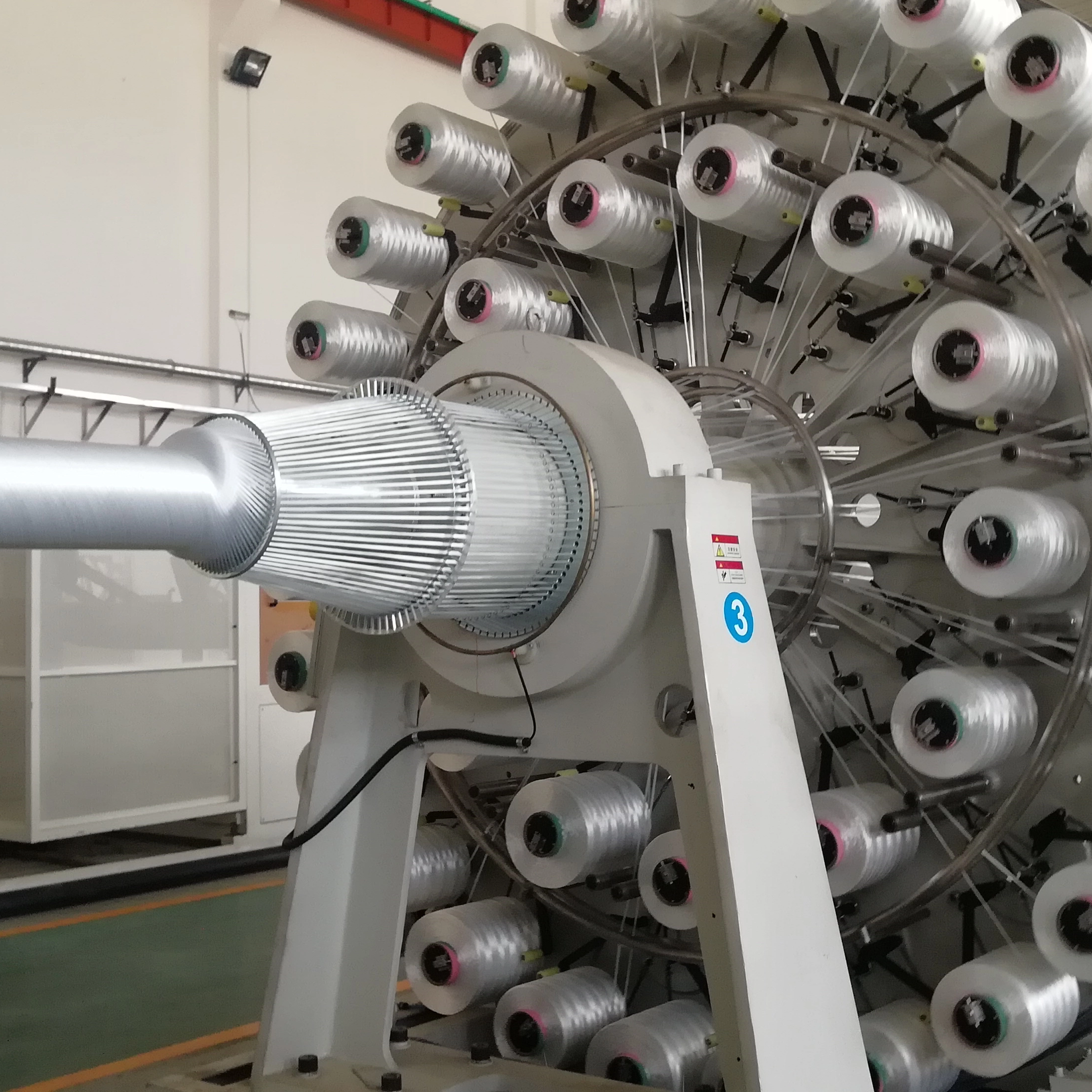

The resulting RTP pipes feature a three-layer structure: a thermoplastic inner liner (PE80/PE100/PA/PERT/PVDF), a helically wound reinforcement layer made of non-metal materials (polyester wire, aramid fiber, glass fiber, basalt fiber, or twisted rope bundles), and a protective HDPE outer layer with UV and aging resistance.

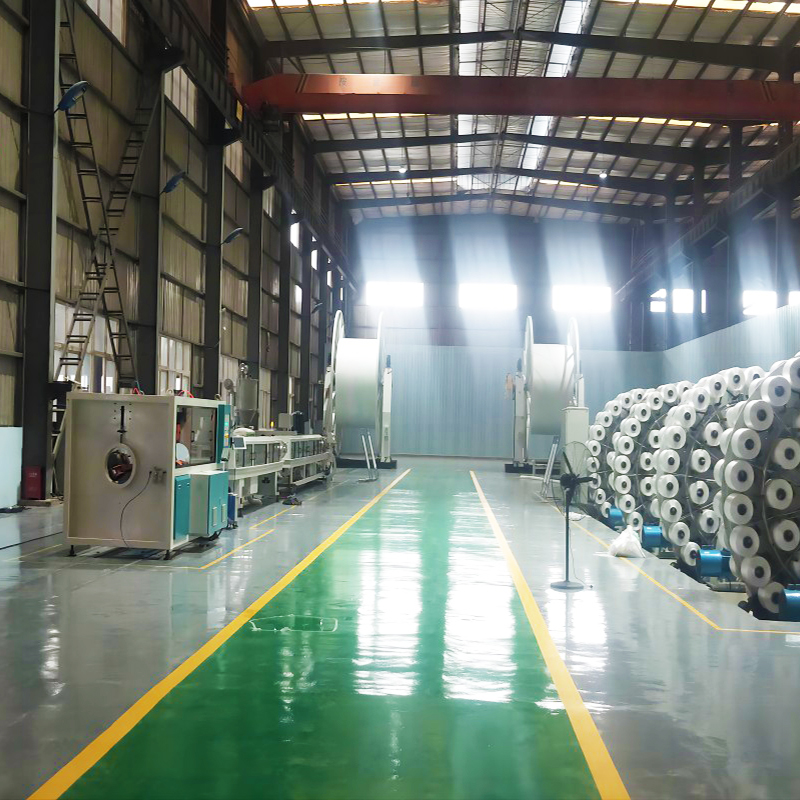

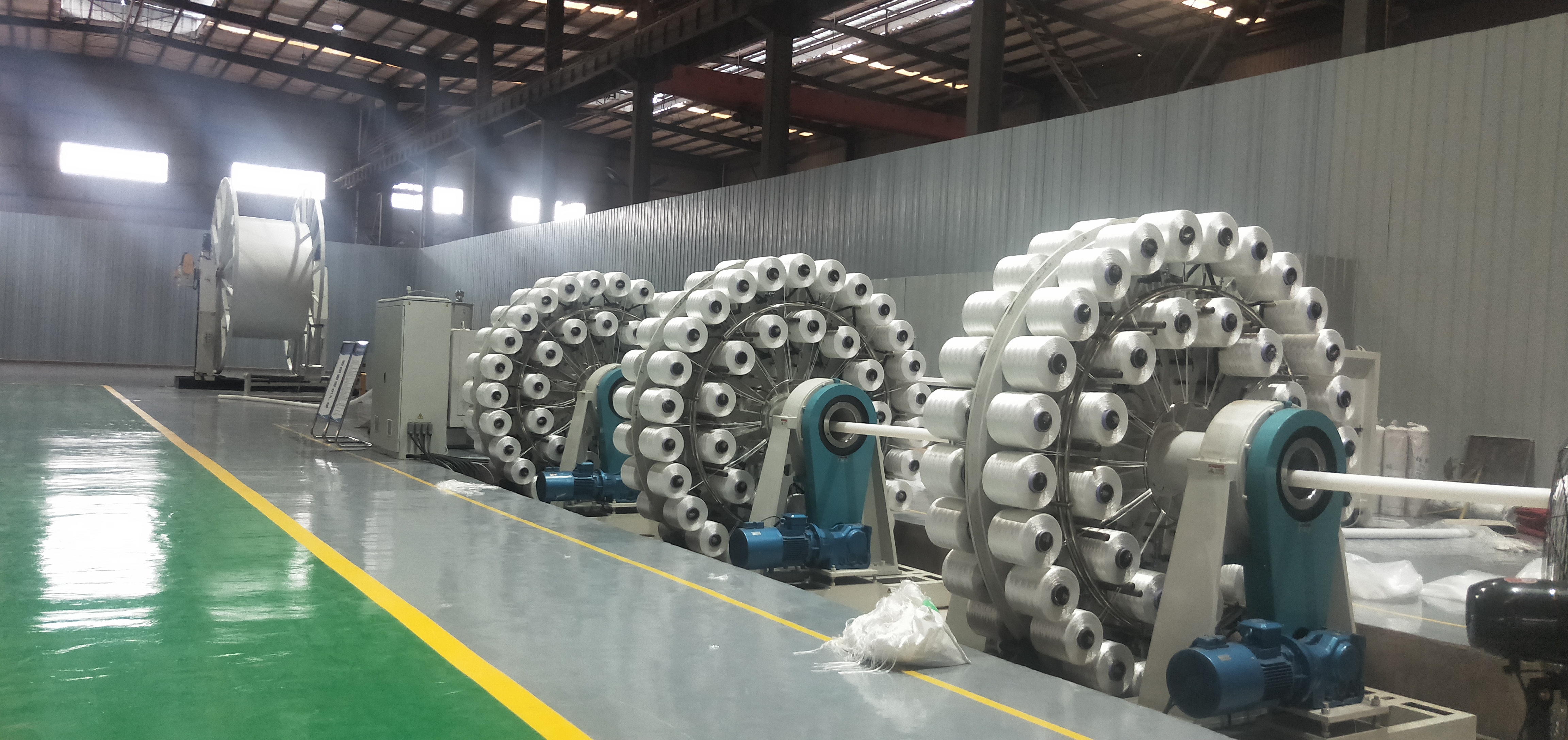

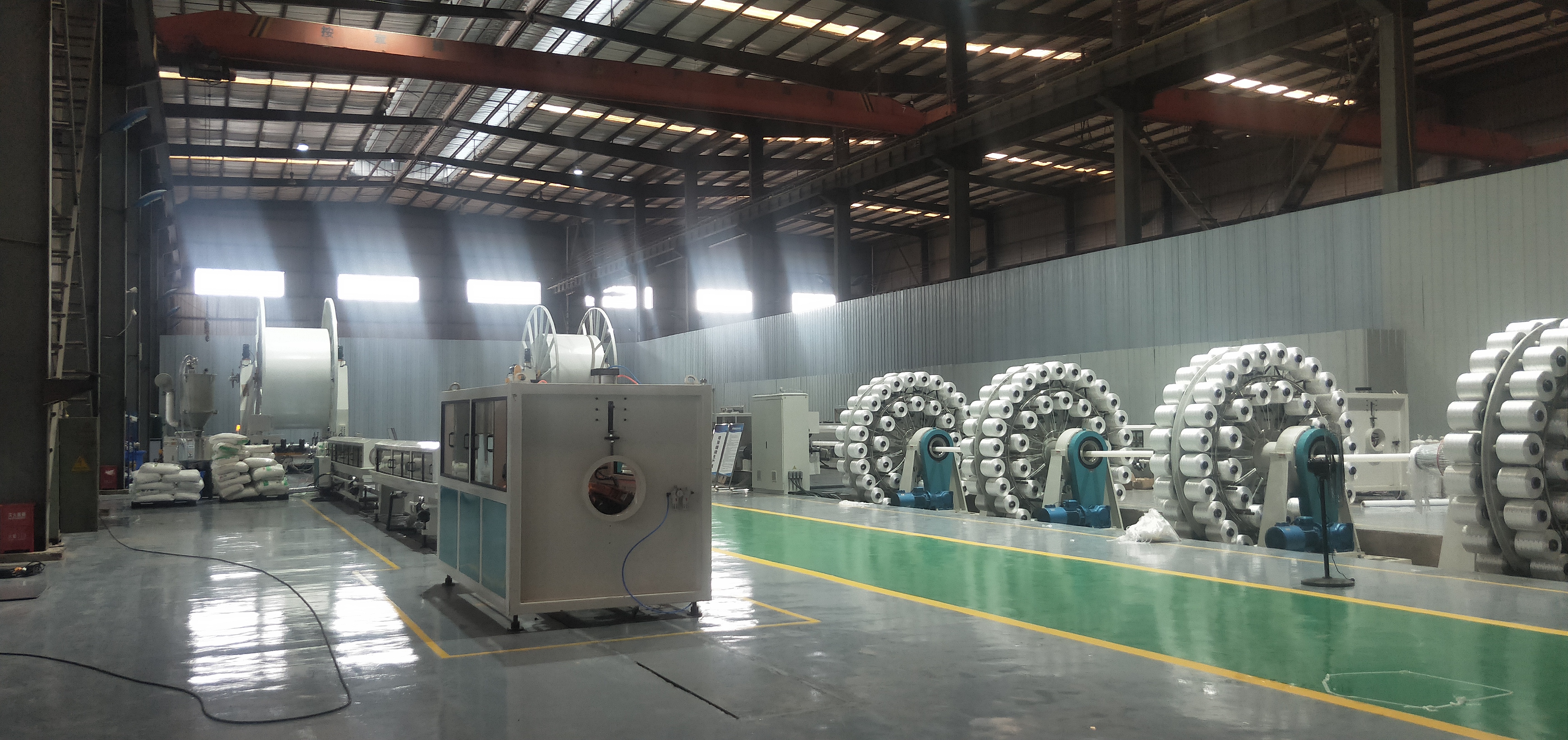

With 31 RTP production lines installed and operating in China over the past four years — including 15 tape winding lines (metal and non-metal) and 16 rope winding lines (metal and non-metal) — JMG Machinery has established itself as a trusted partner in the composite pipe equipment industry.
Applications
-
Oil & Gas Transportation: Onshore and offshore oil and gas pipelines with high pressure requirements
-
High-pressure Water Transmission: Long-distance water delivery systems
-
Municipal Pipeline Networks: Urban infrastructure and utility pipelines
-
Mining: High-pressure slurry and water transport in mining operations
-
Offshore Floating Pipelines: Marine and subsea pipeline applications
Key Features & Advantages | Feature | Advantage |
| Patent Heating Technology (ZL201721360511.X) | Unique combination of infrared and hot air heating ensures reasonable heating method, high efficiency, excellent heating effect, and stable performance, resulting in stronger reinforcement layer adhesion |
| Multi-material Compatibility | Supports various non-metal reinforcement materials: polyester wire, aramid tape, glass fiber, basalt fiber, twisted rope bundles |
| Constant Tension Control System | Ensures uniform winding tension across all reinforcement layers for consistent pipe pressure rating |
| Customizable Configuration | Differentiated exclusive customization according to customer's specific product requirements and production needs |

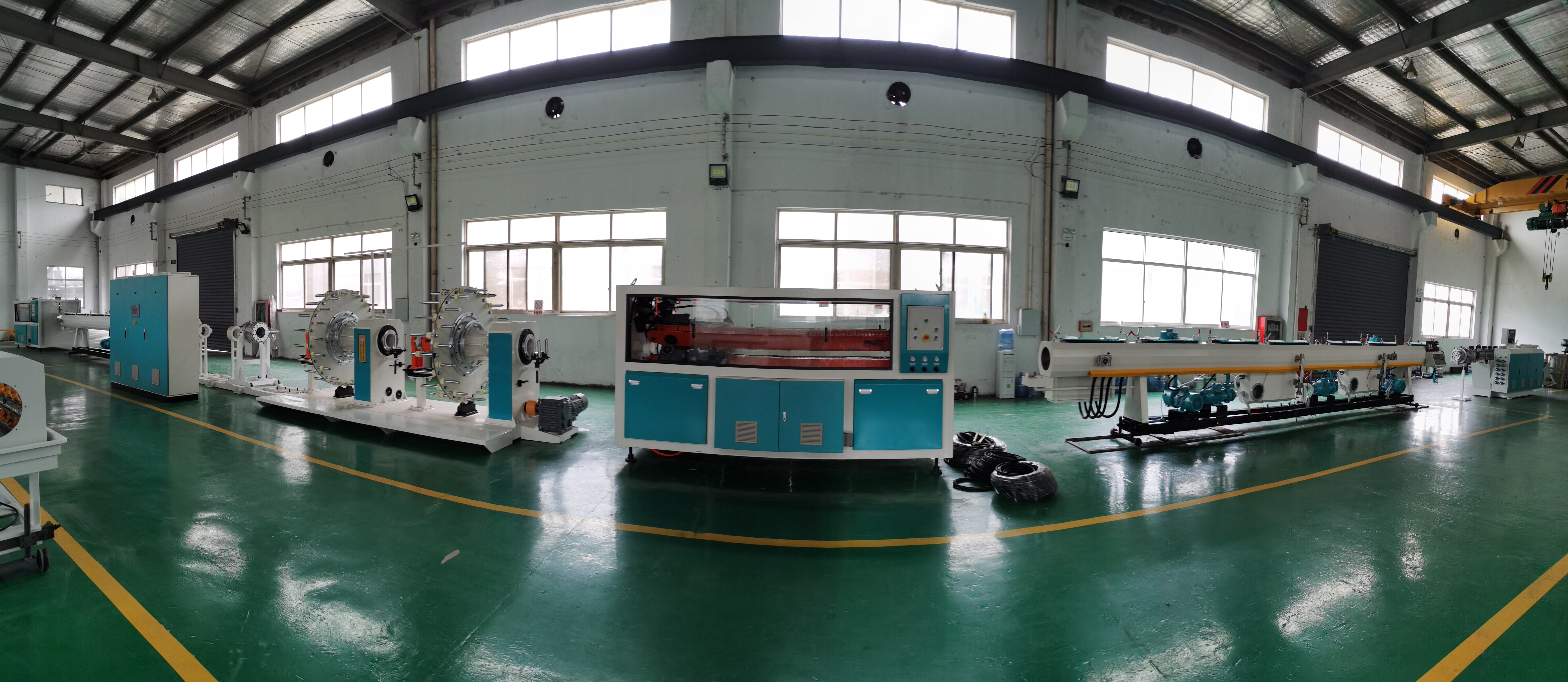

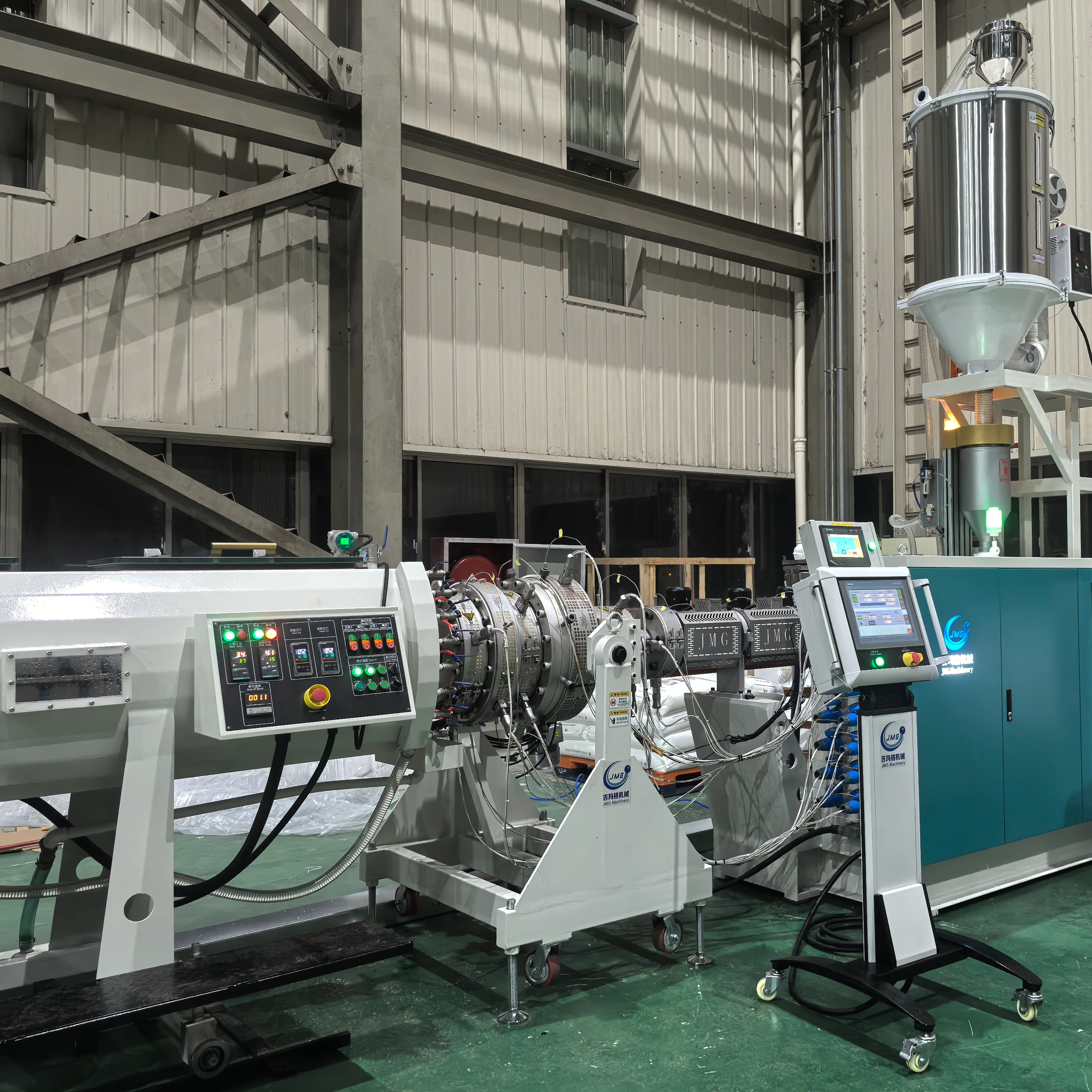

| Comprehensive Production Line | Covers entire process from plastic pipe extrusion, reinforced composite, outer coating, finished product rewinding to pipe joints and buckling |
Technical Support & Services
-
Pre-delivery Debugging: Each equipment is debugged before delivery to ensure proper functioning
-
On-site Installation: Experienced engineers provide on-site installation and commissioning assistance
-
Comprehensive Training: Full training provided to customer's employees after installation
-
Warranty: 1-year parts warranty with technical support
-
After-sales Support: Video technical guidance and on-site engineer dispatch when necessary; free spare parts replacement during warranty period; cost-only charge for wearing parts
-
Factory Visit: Factory located in Kunshan, Suzhou (near Shanghai) — airport pickup service available for customer visits
Why Choose JMG Machinery?
-
Focuses on new materials composite pipe equipment R&D, intellectual property, and integrated personalized solutions
-
Covers tape winding (glass fiber tape, aramid tape, polyester tape, steel tape, steel cord tape), non-metal wire winding (polyester wire, aramid wire, glass fiber wire, basalt wire, twisted/bundled rope), and metal wire winding (steel wire mesh skeleton)
-
Pursues efficiency and performance stability with customized machine design
-
Proven track record with 31 production lines successfully installed in China
