Reinforced Thermoplastic Pipe (RTP) represents a breakthrough in modern pipeline engineering, combining the flexibility, corrosion resistance, and spoolability of thermoplastic materials with the high-strength characteristics of advanced reinforcement materials. As global industries seek to replace aging steel infrastructure and reduce lifecycle costs, RTP has emerged as the product of choice for surface transport of pressurized oil, gas, water systems, and emerging applications such as hydrogen and CO₂ transportation.
At the heart of this transformative technology lies the Non-Metal Rope Winding RTP Pipe Production Equipment — an advanced, fully integrated manufacturing system that enables the continuous, high-speed production of superior-quality reinforced thermoplastic composite pipes.
The defining feature of this production line is its intermediate layer non-metallic wire (rope) reinforced winding equipment unit, which forms the structural backbone of RTP pipe manufacturing. This sophisticated winding system applies high-strength non-metallic reinforcement materials — including aramid fiber, glass fiber, carbon fiber, and high-strength polyester rope — in precise, interlaced patterns around the inner thermoplastic liner.
Unlike conventional steel belt or steel wire winding methods, the non-metal rope winding technology offers distinct advantages:
Complete Corrosion Immunity: Non-metallic reinforcement eliminates any risk of internal or external corrosion, making the finished pipe ideal for aggressive environments including sour gas, brine, and acidic fluids.
Superior Flexibility: Fiber rope reinforcement provides enhanced bending capability, enabling tighter installation radii and easier handling during deployment.
Weight Reduction: Non-metal reinforcement significantly reduces overall pipe weight compared to steel-reinforced alternatives, lowering transportation and installation costs.
Fatigue Resistance: Advanced fiber materials demonstrate exceptional resistance to cyclic loading and pressure fluctuations.
The winding machine features a unique specialized design that supports multi-material reinforcement tapes, including aramid woven fabric, high-strength glass fiber rope reinforcement tape, and other advanced composite materials. This versatility allows manufacturers to tailor reinforcement configurations to meet specific pressure ratings and application requirements.

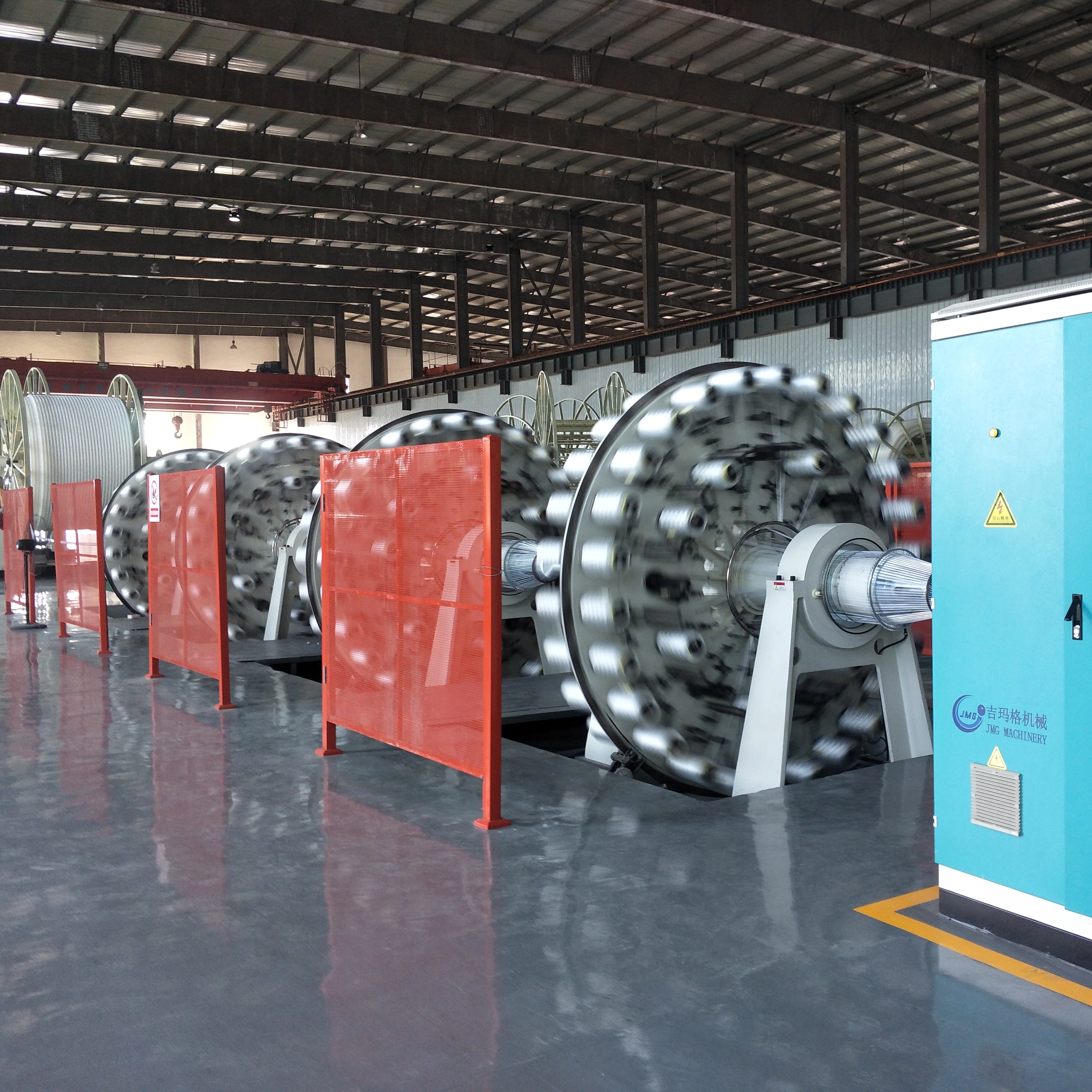

The Non-Metal Rope Winding RTP Pipe Production Equipment is engineered as an integrated, fully automated manufacturing system consisting of three primary processing units:
The production sequence begins with the extrusion of the inner thermoplastic liner — the primary fluid containment and sealing layer. The system accommodates a wide range of thermoplastic materials including PE80, PE100, PA (Polyamide), PERT (Polyethylene of Raised Temperature Resistance), and PVDF (Polyvinylidene Fluoride) . High-precision extrusion controls ensure consistent wall thickness, dimensional stability, and superior surface finish.
This is the core technological component of the production line. The winding station applies high-strength non-metallic fiber ropes in precisely controlled helical and counter-helical patterns. Key technical features include:
Multi-Station Creel Configuration: Depending on pipe diameter and production requirements, the winding machine accommodates 2 or 4 trays simultaneously.
Precise Angle Control: Reinforcement materials are interlaced at specific, programmable winding angles to optimize hoop strength and axial load-bearing capacity.
In-Situ Consolidation: Advanced systems incorporate hot air heating technology that enables simultaneous winding and thermal consolidation, ensuring optimal bonding between reinforcement layers.
Tension Management: Closed-loop tension control maintains consistent reinforcement pre-tension throughout the winding process, critical for uniform pressure resistance.
The final stage applies the outer thermoplastic protective jacket — typically formulated with anti-aging and UV-resistant HDPE additives — to shield the reinforcement layer from environmental damage, mechanical abrasion, and ultraviolet degradation. This protective layer ensures long-term durability in demanding field conditions.
The equipment achieves international advanced level performance in RTP structure design, multi-layer winding and wrapping technology, and comprehensive process control software. The fully integrated one-step production process continuously manufactures RTP pipes in diameters up to 315 mm, eliminating the inefficiencies of two-step manufacturing methods that require repeated uncoiling and reel transportation of the inner pipe.
This streamlined approach delivers significant operational advantages:
High Efficiency: Continuous production minimizes downtime and maximizes throughput.
High Automation: Advanced PLC-based control systems reduce operator intervention and ensure process consistency.
Energy Conservation: Optimized thermal management and drive systems reduce overall energy consumption per meter of pipe produced.
The Non-Metal Rope Winding RTP Pipe Production Equipment is engineered to produce pipes that meet the most demanding industry specifications:
Performance Parameter | Specification |
|---|---|
Working Pressure | Up to 32 MPa (320 bar) |
Burst Pressure | Greater than 60 MPa |
Maximum Continuous Length | Up to 1000 meters per coil |
Pipe Diameter Range | 75 mm to 800 mm |
Reinforcement Materials | Aramid fiber, glass fiber, carbon fiber, polyester fiber |
Inner Liner Materials | PE80, PE100, PA, PERT, PVDF |
Temperature Rating | High-temperature RTP configurations available |
RTP pipes manufactured on this equipment deliver a comprehensive suite of performance benefits that distinguish them from traditional steel pipes and conventional plastic pipes:
Exceptional Pressure Resistance: The non-metal rope reinforcement layer provides pressure resistance 20 times greater than plastic and composite pipes of equivalent wall thickness, and 10 times greater than metal welded pipes.
Superior Flow Characteristics: The smooth inner liner minimizes flow resistance, scaling, and waxing, delivering over 30% higher flow rates than metal pipes and over 20% higher than plastic pipes of the same outer diameter.
Extended Service Life: Engineered for 80 years of long-term service, with lifecycle performance 1.6 times that of plastic pipes and 4 times that of plastic-lined metal pipes.
Lightweight Construction: Pipe weight is approximately 20% of equivalent metal pipes, enabling manual handling and reducing lifting equipment requirements.
Rapid Installation: Continuous spooled lengths and minimal joint requirements reduce installation time by over 50% compared to steel pipe systems.
Complete Corrosion Resistance: Fully non-metallic construction eliminates the need for expensive anti-corrosion coatings, extending effective service life by 5-10 years in corrosive environments.
Total Cost Advantage: Overall pipe system costs are consistently lower than metal alternatives, with total installed costs reduced by 5% to 30% across the project lifecycle.
Environmental Sustainability: Thermoplastic construction enables full recyclability, and the production process operates without boiler steam, delivering a green, pollution-free manufacturing solution.
The global TCP and RTP pipe market was valued at approximately USD 5.33 billion in 2025 and is projected to grow at a CAGR of 4.70% through the forecast period. This growth is driven by several converging factors:
RTP pipes have been successfully deployed in onshore and shallow water oil fields for applications including crude oil gathering, natural gas collection, high-pressure water injection, and produced water transport. Major industry players such as Saudi Aramco have played a catalytic role in promoting RTP market development and new applications.
TCP and RTP technologies are increasingly specified for green energy infrastructure, including hydrogen transportation and CO₂ injection pipelines, due to their strong corrosion resistance and high-pressure capabilities. Baker Hughes has recently launched next-generation onshore composite flexible pipe specifically designed for CO₂ and hydrogen transport applications.
Beyond energy applications, RTP pipes serve high-pressure water distribution networks, mining operations, long-distance water conveyance, and industrial fluid transport systems where corrosion resistance and rapid deployment are essential.
The Non-Metal Rope Winding RTP Pipe Production Equipment is manufactured to the highest international standards:
Certifications: CE, ISO, UL, QS, GMP compliant
Design Standards: Available in configurations meeting EU and North American standards
Warranty: Comprehensive one-year coverage
After-Sales Support: Professional technical guidance and equipment procurement consultation available
As global energy companies pursue decarbonization strategies and seek to reduce the carbon footprint of pipeline infrastructure, RTP and TCP technologies offer substantially lower lifecycle carbon emissions compared to traditional steel alternatives. The non-metal rope winding approach further enhances this sustainability profile by eliminating metal components entirely.
The choice of reinforcement technology directly impacts finished pipe performance, manufacturing efficiency, and total cost of ownership. Non-metal rope winding delivers:
Enhanced Chemical Compatibility: Full compatibility with aggressive fluids including sour gas and acidic brines without degradation.
Improved Fatigue Performance: Superior resistance to cyclic pressure loading and mechanical vibration.
Reduced Maintenance Burden: Maintenance-free operation with total cost of ownership over 20% lower than steel pipe systems.
Installation Flexibility: Lightweight, spoolable design enables installation of up to 1 kilometer of pipe per day with minimal surface disruption.
The Non-Metal Rope Winding RTP Pipe Production Equipment represents the forefront of flexible composite pipe manufacturing technology. By integrating precision extrusion, advanced non-metallic fiber rope winding, and intelligent process control into a unified, one-step production system, this equipment empowers manufacturers to produce world-class RTP pipes that meet the rigorous demands of oil and gas extraction, hydrogen energy infrastructure, municipal water systems, and industrial fluid transport.
Whether you are expanding existing production capacity or establishing a new RTP manufacturing facility, this high-efficiency, fully automated production line provides the technological foundation for competitive advantage in the rapidly growing global RTP market.
For detailed technical specifications, production capacity analysis, or to schedule a facility demonstration of Non-Metal Rope Winding RTP Pipe Production Equipment, please contact our engineering team. We provide comprehensive technical guidance, process optimization recommendations, and customized equipment procurement solutions tailored to your specific manufacturing requirements.
