Reinforced Thermoplastic Pipe Extrusion Line | Patented One-Step Winding Technology | Turnkey Solution
JMG Machinery's Metal Rope Winding RTP Pipe Production Equipment is a complete turnkey system engineered for manufacturing high-performance Reinforced Thermoplastic Pipe (RTP) with metal rope, steel wire, or wire mesh skeleton reinforcement. At the core of this system lies our patented metal rope winding technology (Patent No. ZL201721360511.X), which enables a one-step integrated production process with precise tension control, eliminating the inefficiencies of traditional two-step processes that require repeated uncoiling and reel transportation.
The production line is designed for continuous 24/7 operation and delivers pipe diameters ranging from DN50 to DN300 mm (2″ to 12″), with reinforcement layers adjustable from 1 to 6 layers to accommodate different pressure ratings.
Patented One-Step Integrated Process — Our proprietary winding technology eliminates the need for repeated uncoiling and reel transportation of the inner pipe, significantly improving both production efficiency and product consistency compared to conventional two-step processes.
Precision Tension Control — Multi-axis independent tension-controlled pay-offs ensure uniform reinforcement layers, eliminating overlaps or gaps. The constant tension automatic control system is essential for achieving one-step multi-layer reinforcement winding.
Wide Material Compatibility — The winding unit supports steel wire, aramid belts, glass fiber rovings, and metal ropes, providing flexible reinforcement solutions for different pressure ratings and application scenarios.
Intelligent Monitoring — Real-time tension monitoring prevents wire breakage or waviness, ensuring consistent product quality throughout the production run.
Energy Efficiency — Heat-profile regulation reduces energy consumption by up to 15% compared to conventional equipment.
Rapid Changeover — Quick-change die heads reduce specification changeover downtime to just 20–30 minutes, significantly enhancing production line flexibility.
High-Speed Production — Maximum winding speed of 40 m/min with extrusion output of 350–600 kg/h, delivering excellent production throughput.
Parameter | Specification |
|---|---|
Pipe Diameter Range | DN50 – DN300 mm (2″ – 12″) |
Reinforcement Layers | 1 – 6 layers (adjustable) |
Working Pressure | Up to 32 MPa |
Burst Pressure | Exceeding 60 MPa |
Max. Winding Speed | 40 m/min |
Extrusion Output | 350 – 600 kg/h |
Inner Liner Materials | PE80, PE100, PA, PERT, PVDF |
Outer Sheath Material | Anti-aging, UV-resistant HDPE |
Control System | PLC with HMI, real-time tension monitoring |
Certification | CE, ISO 9001:2015 |
A complete metal rope winding RTP production line consists of the following core units:

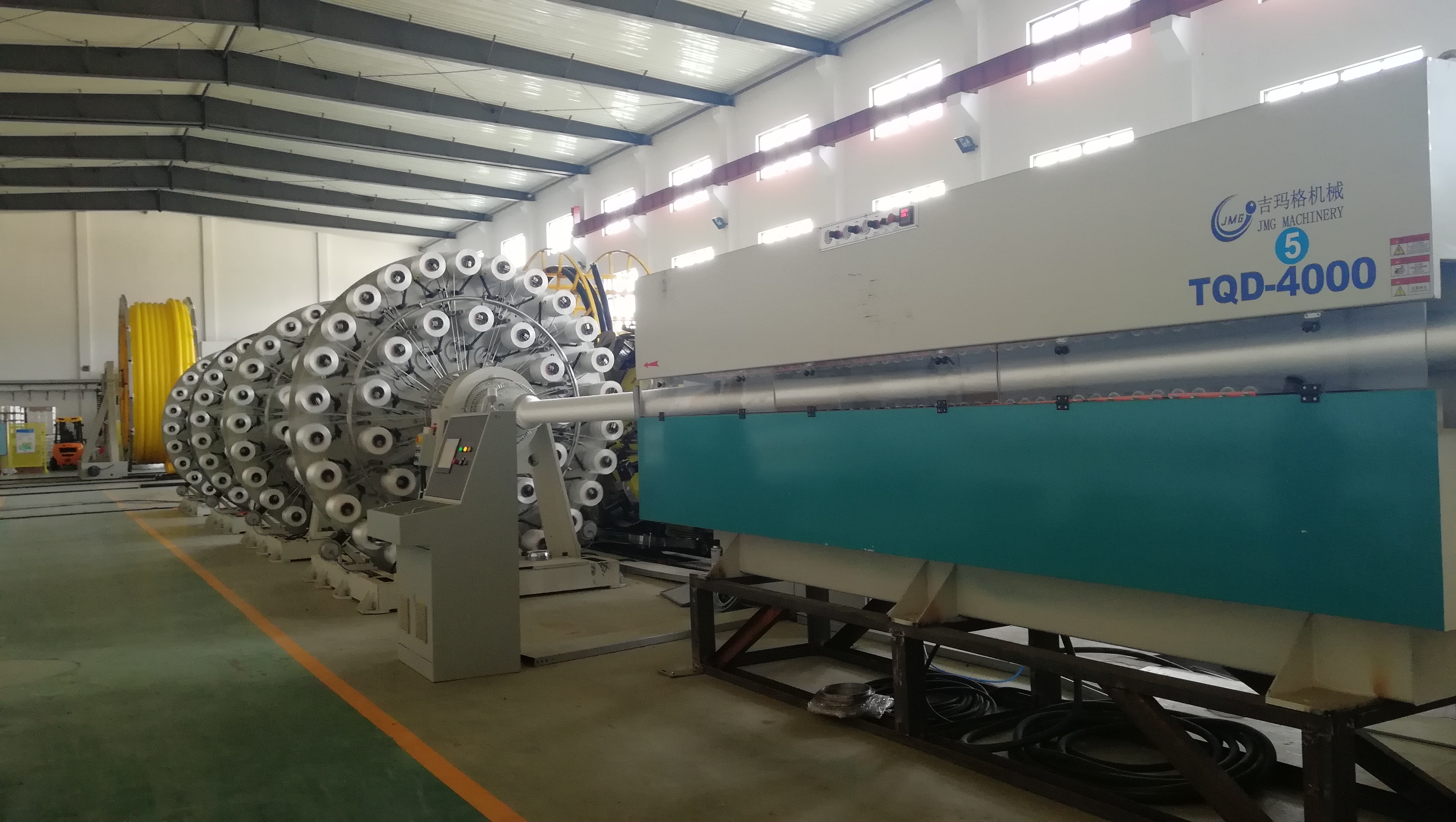

Inner Pipe Extrusion Unit — Extrudes the thermoplastic liner

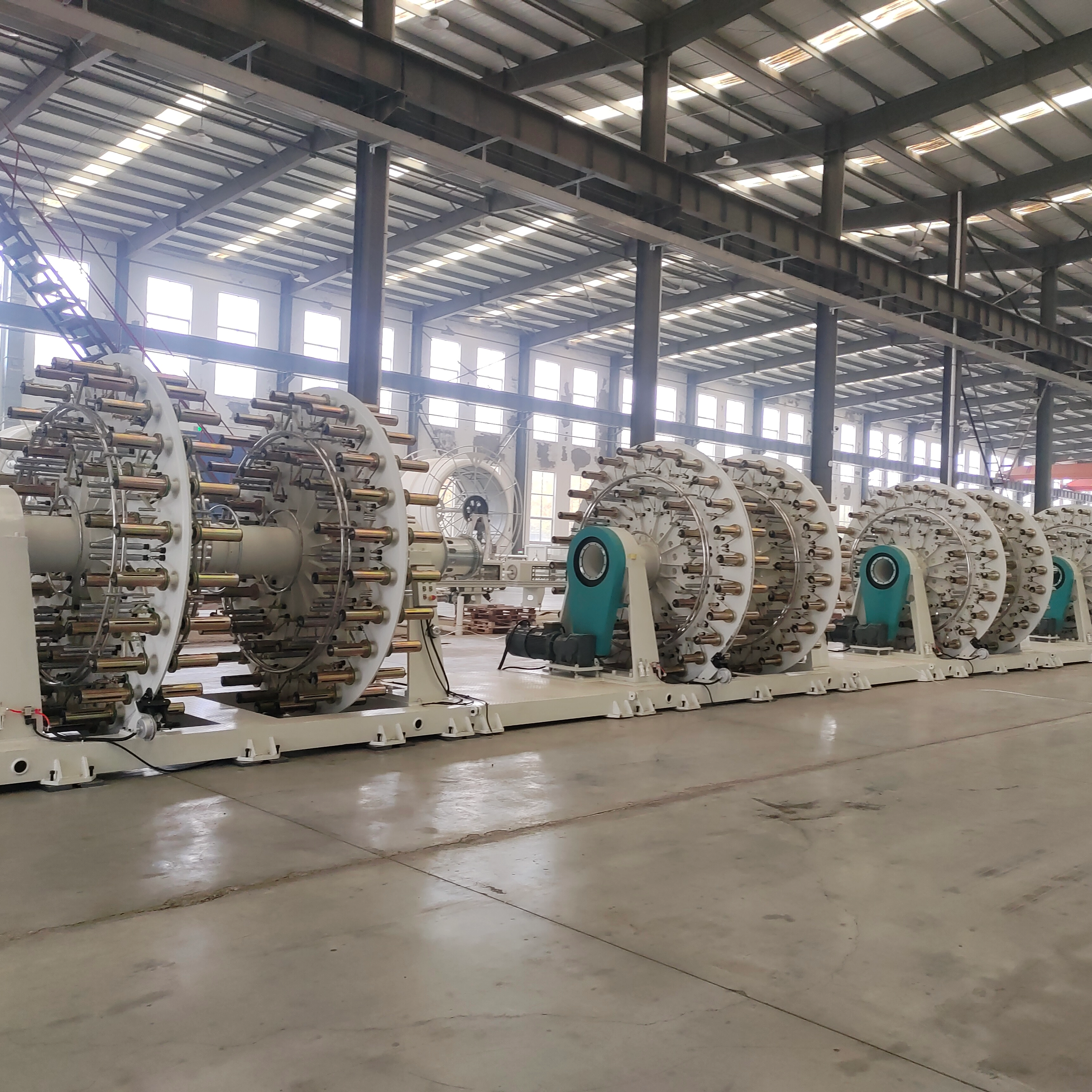

Reinforcement Winding Unit — Spirally winds metal ropes, steel wires, or reinforcement tapes around the inner liner
Outer Sheath Extrusion Unit — Extrudes the outer protective layer
Cooling and Sizing System — Ensures dimensional stability
Haul-off, Cutting, and Coiling System — Enables cut-to-length and coil packaging
RTP pipes produced on this line are widely deployed in demanding environments:
Oil & Gas — Gathering and transmission pipelines, single-well gathering lines
Geothermal Energy — Deep geothermal development, hot spring water transmission
Municipal Infrastructure — Central heating secondary pipe networks, municipal water supply
Mining — High-pressure water transmission, slurry transport
High-Pressure Fluid Transport — Corrosive media and chemical transportation
Emerging Applications — Hydrogen transmission, offshore risers
With 78+ RTP production lines installed across China — including 33 tape winding lines and 25 rope winding lines — JMG Machinery has established a proven track record in the RTP equipment sector. In the past four years alone, 31 new RTP production lines have been installed, demonstrating sustained market confidence in our technology.
Every production line is fully customizable for different reinforcement materials and pipe sizes, ensuring that clients receive equipment tailored to their specific production requirements. Our comprehensive after-sales support includes installation guidance, technical training, and ongoing maintenance services.
Contact us today to discuss your RTP production line requirements and discover how JMG Machinery's patented metal rope winding technology can elevate your composite pipe manufacturing capabilities.
Kunshan JMG Machinery Manufacturing Co., Ltd. — Your Trusted Partner for Complete RTP & Composite Pipe Production Lines Since 2016.
