HDPE PP PVC PE High extrusion equipment

HDPE pipe extrusion line, PP pipe extruder, PVC pipe production line, PE pipe making machine, high-speed plastic extruder, single-screw pipe extruder – JMG Machinery delivers high-output extrusion solutions for water supply, gas transmission, geothermal, and oil field pipes. Our JMGPE series is engineered for continuous, reliable operation with capacities up to 1200kg/h.
Availability:
Quantity:

JMGPE Series High-Speed HDPE/PP/PVC/PE Pipe Extrusion Line — OD20-630mm | Up to 1200kg/h

Overview

The JMGPE Series High-Speed Pipe Extrusion Line is engineered for manufacturers who need reliable, high-output production of HDPE, PP, PVC, and PE pipes from OD20mm to OD630mm. Built on 15+ years of extrusion machinery expertise, this advanced single-screw extrusion system delivers up to 1200kg/h with energy savings of up to 15% compared to conventional lines. Every component is CE certified, and the system is backed by a global service network spanning 40+ countries. Whether you're producing water supply pipes, gas transmission pipelines, geothermal loops, or reinforced composite pipes, the JMGPE series delivers consistent melt quality, precise dimensional accuracy, and continuous operation you can count on.

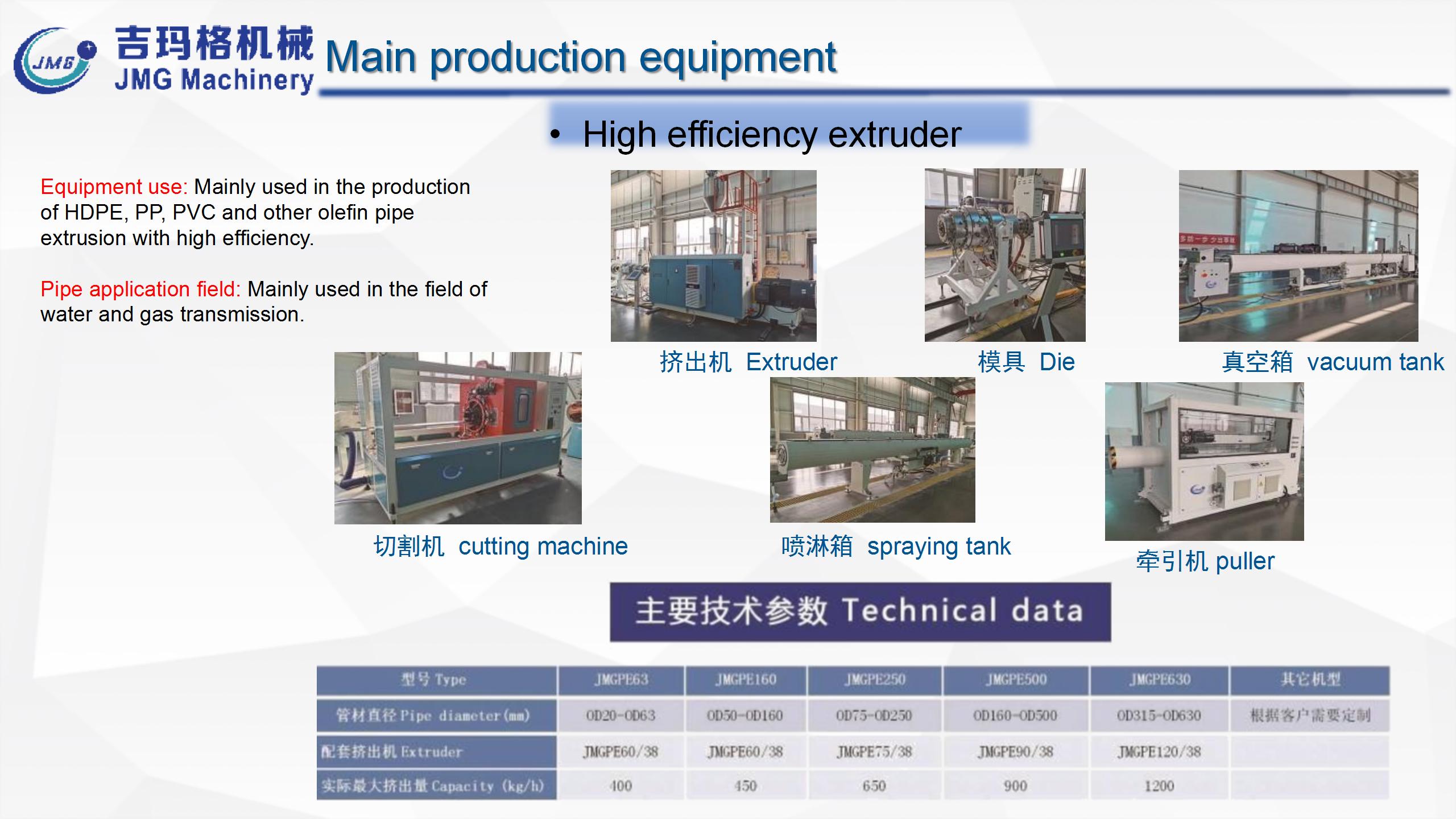

Technical Specifications

ModelPipe Diameter RangeExtruderCapacity (kg/h)
JMGPE63OD20 – OD63JMGPE60/38400
JMGPE160OD50 – OD160JMGPE60/38450
JMGPE250OD75 – OD250JMGPE75/38650
JMGPE500OD160 – OD500JMGPE90/38900
JMGPE630OD315 – OD630JMGPE120/381200

Custom configurations available. Target pipe diameter, desired output, and material requirements can all be tailored to your production needs.

Key Features

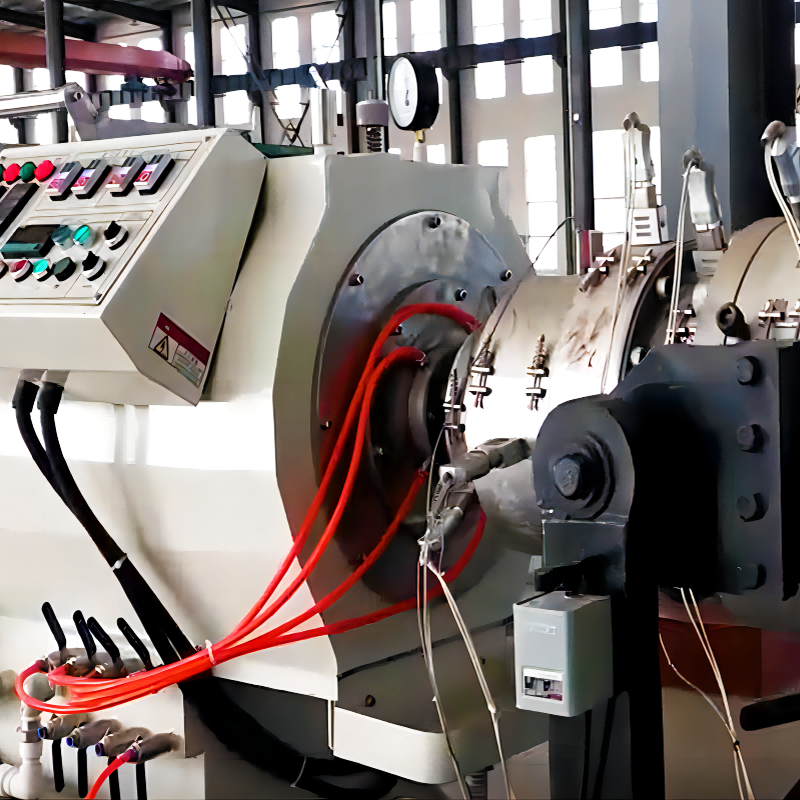

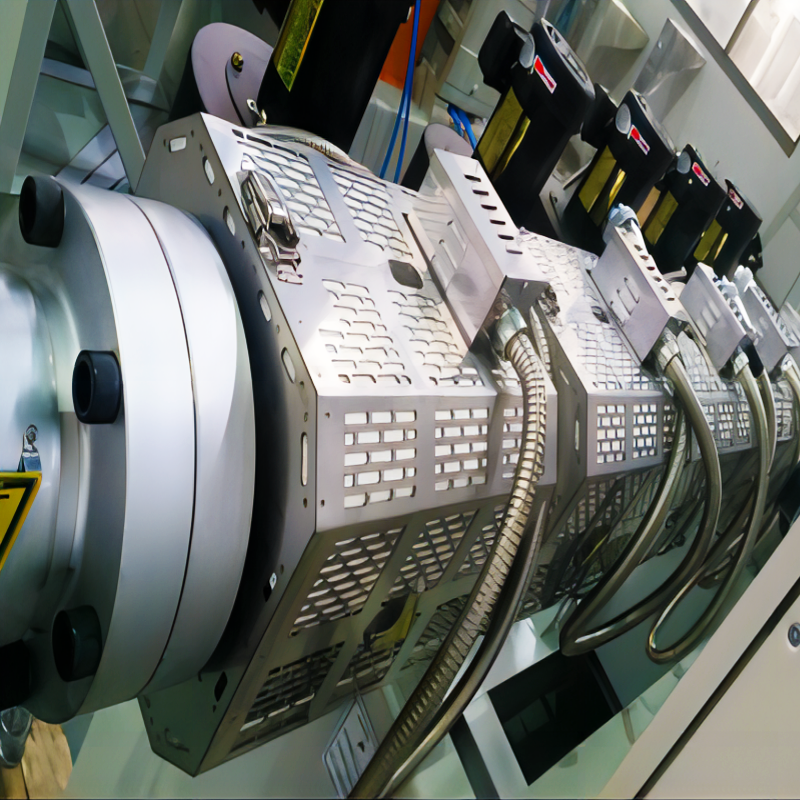

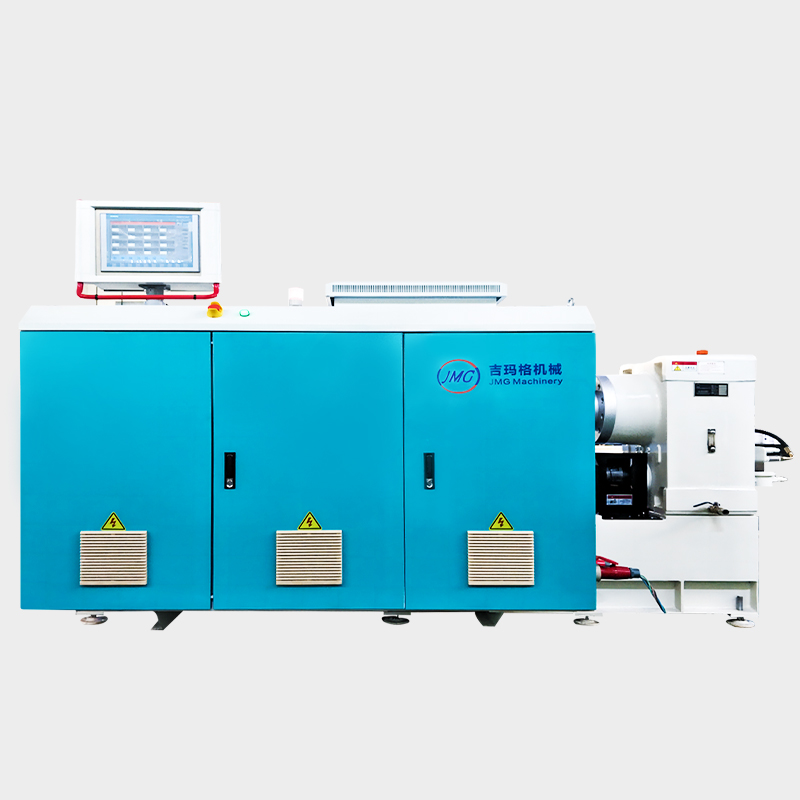

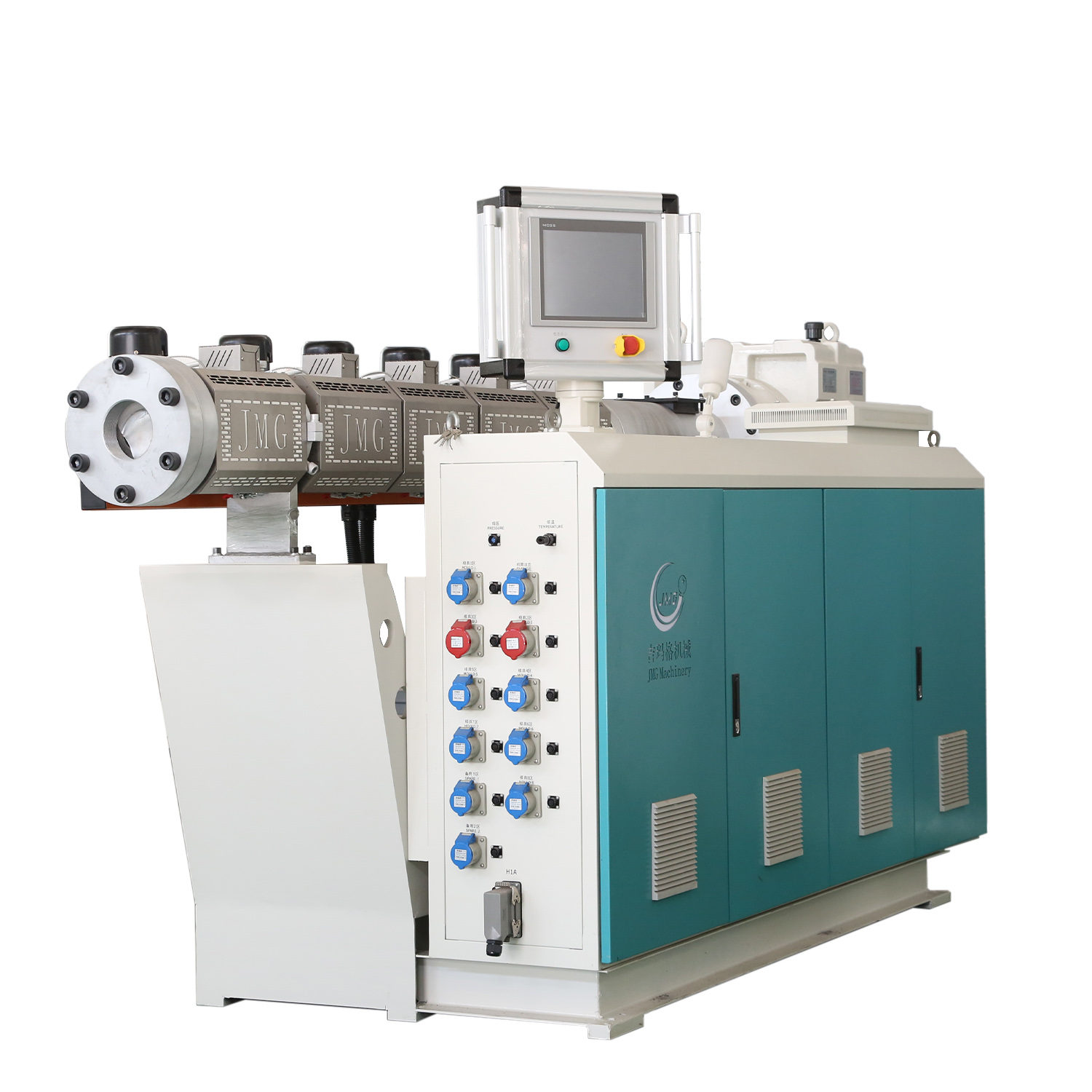

  • High-torque, energy-efficient single-screw extruder — Advanced screw geometry optimized for HDPE, PP, PVC, and PE delivers superior plasticization, consistent melt quality, and outstanding output efficiency. Energy savings up to 15% compared to conventional extrusion lines.

  • Automatic vacuum calibration and cooling tank — Ensures precise pipe dimensional accuracy and surface quality through automated vacuum calibration, followed by controlled cooling for consistent wall thickness and material properties.

  • Servo-driven haul-off and precision cutting unit — Provides smooth, consistent pipe transport with clean, accurate cuts for superior end-finish quality.

  • User-friendly PLC control system — Intuitive HMI with one-touch start functionality for common pipe sizes, reducing training requirements and minimizing production downtime.

  • CE certified components — Full compliance with international safety and quality standards.

  • In-house R&D for screw design and process optimization — Continuous innovation and tailored solutions for specific material and output requirements.

Applications

  • Water Supply Networks — Potable water distribution and municipal water infrastructure

  • Gas Transmission — Natural gas distribution pipelines meeting stringent safety standards

  • Geothermal Systems — Geothermal loop piping for renewable energy applications

  • Oil Field Pipelines — Durable piping solutions for petroleum extraction and transport

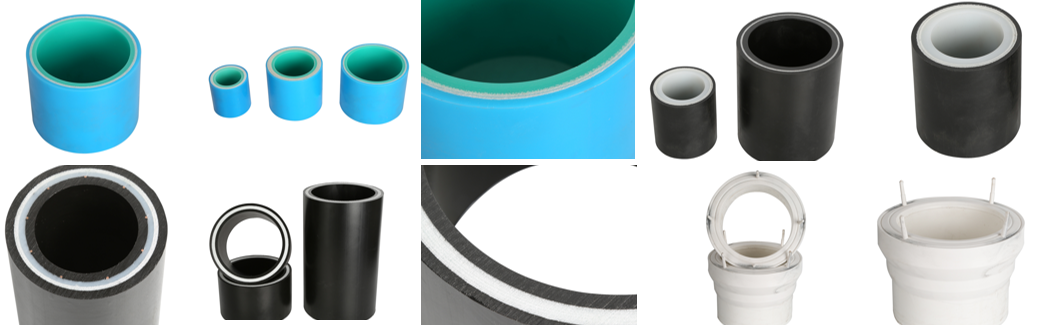

  • Reinforced Composite Pipes — Fiber, aramid, polyester, and steel tape reinforced pipe production

Why Choose JMG Machinery

  • 15+ years of extrusion machinery manufacturing experience

  • In-house R&D team for screw design and process optimization

  • Turnkey solutions — from single extruder to complete pipe production lines

  • Global installations in over 40 countries

  • ISO 9001:2015 certified production facility

  • Fast delivery — standard models ship in 30–45 days

  • Competitive pricing without compromising core components (motor, gearbox, screw)

  • Reliable after-sales — video support, on-site training, and spare parts available 24/7

  • Proven durability — main extruder gearbox and screw manufactured to European standards

Customization

We understand that every production environment is different. The JMGPE series supports:

  • Customized output capacity and pipe diameter range

  • Material-specific screw configurations

  • Integration with existing production workflows

  • OEM and ODM cooperation

Share your target pipe diameter, desired output (kg/h), material type, and project timeline — our engineering team will recommend the optimal configuration.

Contact Us

Ready to upgrade your pipe production line? Get a free quote or technical consultation within 24 hours.

Email: nicole@jmgmachinery.com
WhatsApp/WeChat: +86 13665166529

We speak English, Spanish, Russian, and Arabic — contact us in your preferred language.

Please provide the following for a quick response:

  1. Target pipe diameter range

  2. Desired output (kg/h)

  3. Material (HDPE / PP / PVC / PE)

  4. Your country and project timeline
