Views: 0 Author: Site Editor Publish Time: 2026-07-14 Origin: Site
The JMGPE Series High-Speed Pipe Extrusion Line represents the culmination of over 15 years of extrusion machinery manufacturing expertise. Designed for continuous, reliable operation, this advanced single-screw extrusion system delivers high-quality plastic pipes ranging from OD20mm to OD630mm, with production capacities reaching up to 1200kg/h.
Engineered for processing HDPE, PP, PVC, and PE materials, the JMGPE series is the preferred solution for manufacturers producing water supply pipes, gas transmission pipelines, geothermal loops, oil field pipelines, and reinforced composite pipes incorporating fiber, aramid, polyester, or steel tape reinforcement. Every component is CE certified, ensuring compliance with international safety and quality standards.
Model | Pipe Diameter Range | Extruder | Capacity (kg/h) |
|---|---|---|---|
JMGPE63 | OD20 – OD63 | JMGPE60/38 | 400 |
JMGPE160 | OD50 – OD160 | JMGPE60/38 | 450 |
JMGPE250 | OD75 – OD250 | JMGPE75/38 | 650 |
JMGPE500 | OD160 – OD500 | JMGPE90/38 | 900 |
JMGPE630 | OD315 – OD630 | JMGPE120/38 | 1200 |
Custom configurations available upon request
High-Torque, Energy-Efficient Single-Screw Extruder – The JMGPE series is powered by high-torque extruders featuring advanced screw geometry specifically optimized for HDPE, PP, PVC, and PE materials. This design delivers superior plasticization, consistent melt quality, and outstanding output efficiency.
Optimized Screw Design for Energy Savings – Through precision-engineered screw geometry, the system achieves energy savings of up to 15% compared to conventional extrusion lines, significantly reducing operational costs without compromising output.
Automatic Vacuum Calibration & Cooling Tank – Ensures precise pipe dimensional accuracy and surface quality through automated vacuum calibration, followed by controlled cooling for consistent wall thickness and material properties.
Servo-Driven Haul-Off & Precision Cutting Unit – Servo-driven haul-off provides smooth, consistent pipe transport, while the precision cutting unit delivers clean, accurate cuts for superior end-finish quality.
User-Friendly PLC Control System – Intuitive human-machine interface (HMI) with one-touch start functionality for common pipe sizes simplifies operation, reduces training requirements, and minimizes production downtime.
The JMGPE series is purpose-built for high-speed extrusion of HDPE, PP, PVC, and other polyolefin pipes. Primary application fields include:
Water Supply Networks – Potable water distribution and municipal water infrastructure
Gas Transmission – Natural gas distribution pipelines meeting stringent safety standards
Geothermal Systems – Geothermal loop piping for renewable energy applications
Oil Field Pipelines – Durable piping solutions for petroleum extraction and transport

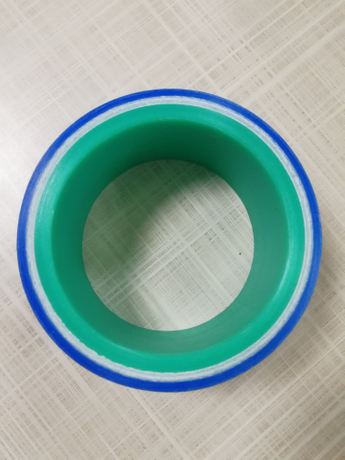

Reinforced Composite Pipes – Fiber, aramid, polyester, and steel tape reinforced pipe production

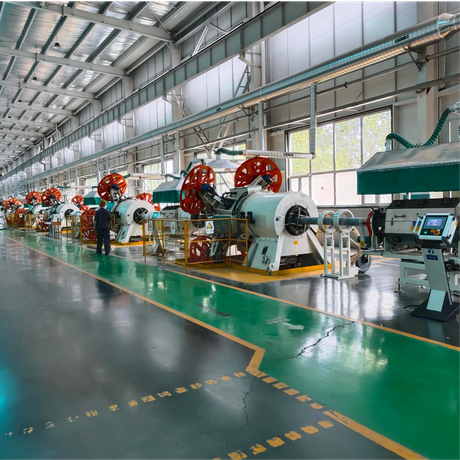

Industry-Leading Experience – With over 15 years dedicated to extrusion machinery manufacturing, JMG Machinery brings deep technical expertise to every project.
In-House R&D Capability – Our internal research and development team specializes in screw design and process optimization, ensuring continuous innovation and tailored solutions.
Turnkey Solutions – From single extruders to complete pipe production lines, we deliver integrated, ready-to-operate systems.
Global Reach – Installed in over 40 countries worldwide, with a global service network providing reliable after-sales support.
ISO 9001:2015 Certified – Our production facility operates under strict quality management systems, ensuring consistent product quality and reliability.
Fast Delivery – Standard models available in 30–45 days, helping you meet project deadlines with confidence.
Competitive Pricing – We deliver exceptional value without compromising on core components including motors, gearboxes, and screws.
Comprehensive After-Sales Support – 24/7 video technical support, on-site training, and readily available spare parts ensure minimal production interruption.
European-Standard Durability – Main extruder gearbox and screw manufactured to European standards, ensuring long service life and reliable performance.
Ready to upgrade your pipe production capabilities? Contact us for a free quote or technical consultation within 24 hours.
Email: nicole@jmgmachinery.com
WhatsApp/WeChat: +86 13665166529
For a quick response, please provide:
Target pipe diameter range
Desired output (kg/h)
Material (HDPE / PP / PVC / PE)
Your country and project timeline
We speak English, Spanish, Russian, and Arabic – contact us in your preferred language.
