Reinforced Thermoplastic Pipe (RTP) is a three-layer composite pipe consisting of a thermoplastic inner liner, a reinforcement layer, and an outer protective sheath. The reinforcement layer is formed by spirally winding metal ropes, steel wires, or fiber tapes around the inner liner at specific angles, imparting excellent pressure resistance and good flexibility to the pipe. RTP pipes can achieve working pressures up to 32 MPa and burst pressures exceeding 60 MPa, making them widely used in oil and gas gathering and transmission, municipal water supply, mining transportation, geothermal development, and other applications.
Selecting the right metal rope winding RTP production line affects not only product quality and production capacity but also the project's return on investment and long-term operating costs. This article systematically outlines the key considerations for RTP production line selection, covering technical specifications, winding systems, automation controls, and manufacturer capabilities.
A complete metal rope winding RTP production line typically consists of the following core units:
Inner Pipe Extrusion Unit – extrudes the thermoplastic liner (materials can include PE80, PE100, PA, PERT, PVDF, etc.)
Reinforcement Winding Unit – spirally winds metal ropes, steel wires, or reinforcement tapes around the inner liner
Outer Sheath Extrusion Unit – extrudes the outer protective layer (typically an anti-aging, UV-resistant HDPE layer)
Cooling and Sizing System – ensures dimensional stability of the pipe
Haul-off, Cutting, and Coiling System – enables cut-to-length and coil packaging of finished pipes
Advanced production lines adopt a "one-step" continuous production process, avoiding the two-step process of repeated uncoiling and reel transportation of the inner pipe, significantly improving production efficiency and product consistency.
Pipe diameter range and pressure rating are the primary selection parameters. Different projects have vastly different pipe specification requirements. Common RTP pipe specifications include 3 inch – 15 MPa, 4 inch – 10 MPa, and 5 inch – 8 MPa. Typical production lines cover pipe diameters from DN50 to DN300 mm (2″–12″), with reinforcement layers adjustable from 1 to 6. When selecting, the production line's diameter range and maximum working pressure capability should be determined based on the end-user applications in the target market.

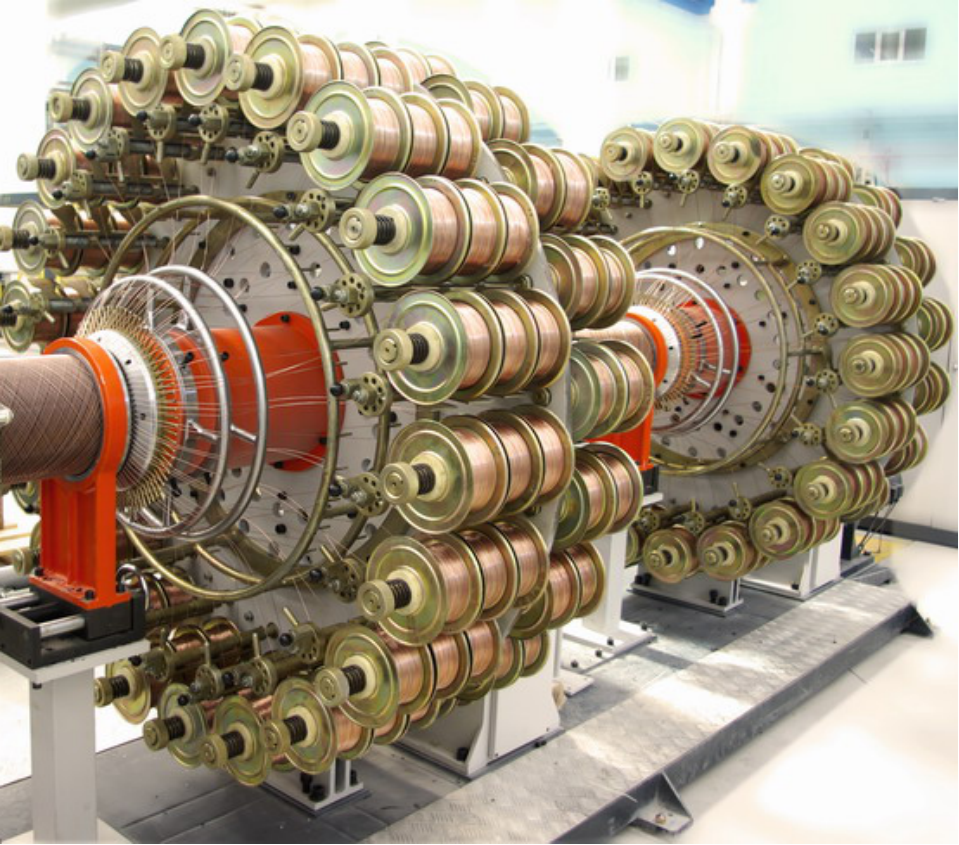

The winding system is the core technology of an RTP production line, directly determining the reinforcement quality and product consistency. Key aspects to evaluate include:
Tension Control Precision: Precision multi-axis independent tension-controlled pay-offs ensure uniform reinforcement layers, eliminating overlaps or gaps. Constant tension automatic control systems are essential for achieving one-step multi-layer reinforcement winding.
Winding Speed: Maximum winding speed directly affects production efficiency. Mainstream equipment can achieve winding speeds up to 40 m/min.
Reinforcement Material Compatibility: High-quality production lines should accommodate multiple reinforcement materials, including steel wire, aramid belts, and glass fiber rovings, to suit different pressure ratings and application scenarios.
Winding Layer Flexibility: Adjustable winding layers (1–6 layers) enable flexible production of pipes at different pressure ratings.
Extrusion system output and energy consumption are key factors affecting operating costs. Selection criteria include:
Extrusion Output: Typical RTP production lines have extrusion outputs of 350–600 kg/h (depending on pipe specifications).
Energy Performance: Extrusion units with high-torque AC motors and heat-profile regulation can achieve energy savings of up to 15% compared to conventional equipment.
Quick-Change Die Head: Quick-change die head designs can reduce changeover downtime to 20–30 minutes, significantly improving production line flexibility.
A high level of automation is essential for ensuring consistent product quality and reducing labor dependency. Evaluation criteria include:
Real-Time Monitoring and Adjustment: Intelligent tension control systems should provide real-time monitoring and automatic adjustment to prevent wire breakage or waviness defects.
Line Synchronization: All production line units should operate in coordinated control, ensuring seamless synchronization from extrusion and winding through cooling, cutting, and coiling.
Data Acquisition and Remote Monitoring: Modern production lines should support remote monitoring and data acquisition for production management and fault diagnosis.
Recipe Management: Control systems should support the creation, storage, and loading of "recipes" for rapid changeover between different pipe specifications.
RTP production lines typically have an overall length of 35–55 meters. Before selection, evaluate the available factory floor space to ensure rational layout of all units with convenient operation and maintenance access. Some manufacturers optimize production line layouts so that key processes—liner extrusion, reinforcement winding, and sheath coating—can be flexibly combined for different pipe diameters, maximizing production efficiency within limited space.
Compliance with international quality standards directly affects market access for the finished products. Verify whether the equipment holds certifications such as CE and ISO 9001:2015. Some high-end product lines are configured to EU standards (G-type) or North American standards (U-type) to meet the requirements of different target markets.
RTP production lines involve multiple disciplines including extrusion, winding, and control technologies. The manufacturer's industry experience is critically important. Prioritize manufacturers with long-term technical accumulation in reinforced thermoplastic pipe machinery. Leading manufacturers may have nearly 30 years of technical expertise in the plastic extrusion field.
Pipe specifications, pressure ratings, and output requirements vary significantly across different projects. Superior manufacturers should offer customized solutions ranging from standalone extruders to complete composite pipe extrusion lines with downstream automation, and provide full-process services including pipe structure design, composite material selection, and equipment configuration.
On-Site Services: Availability of on-site commissioning and technician training
Spare Parts Supply: Lead times and accessibility of critical consumables
Technical Support: Availability of remote diagnostics and ongoing technical support
Selecting a metal rope winding RTP production line is an investment decision that requires comprehensive evaluation. It is recommended that users:
Define Requirements – determine target pipe diameter range, pressure rating, and production capacity
Conduct Site Visits – visit manufacturer facilities to assess equipment manufacturing capabilities and quality control systems
Compare Proposals – obtain technical proposals and quotations from multiple suppliers for side-by-side comparison
Think Long-Term – evaluate not only equipment price but also operating costs, energy consumption, and after-sales service
A well-designed and properly configured RTP production line not only produces high-quality products but also creates long-term competitive advantages and economic benefits for the customer.
