The global Reinforced Thermoplastic Pipe (RTP) and Thermoplastic Composite Pipe (TCP) market is experiencing robust growth, valued at approximately USD 5.33–5.58 billion in 2024–2025 and projected to reach USD 7.36–7.67 billion by 2031–2032, with a compound annual growth rate (CAGR) of 4.7%. As demand surges across oil & gas, mining, municipal water, and marine engineering sectors, the need for high-performance fiberglass tape winding machines has never been more critical.

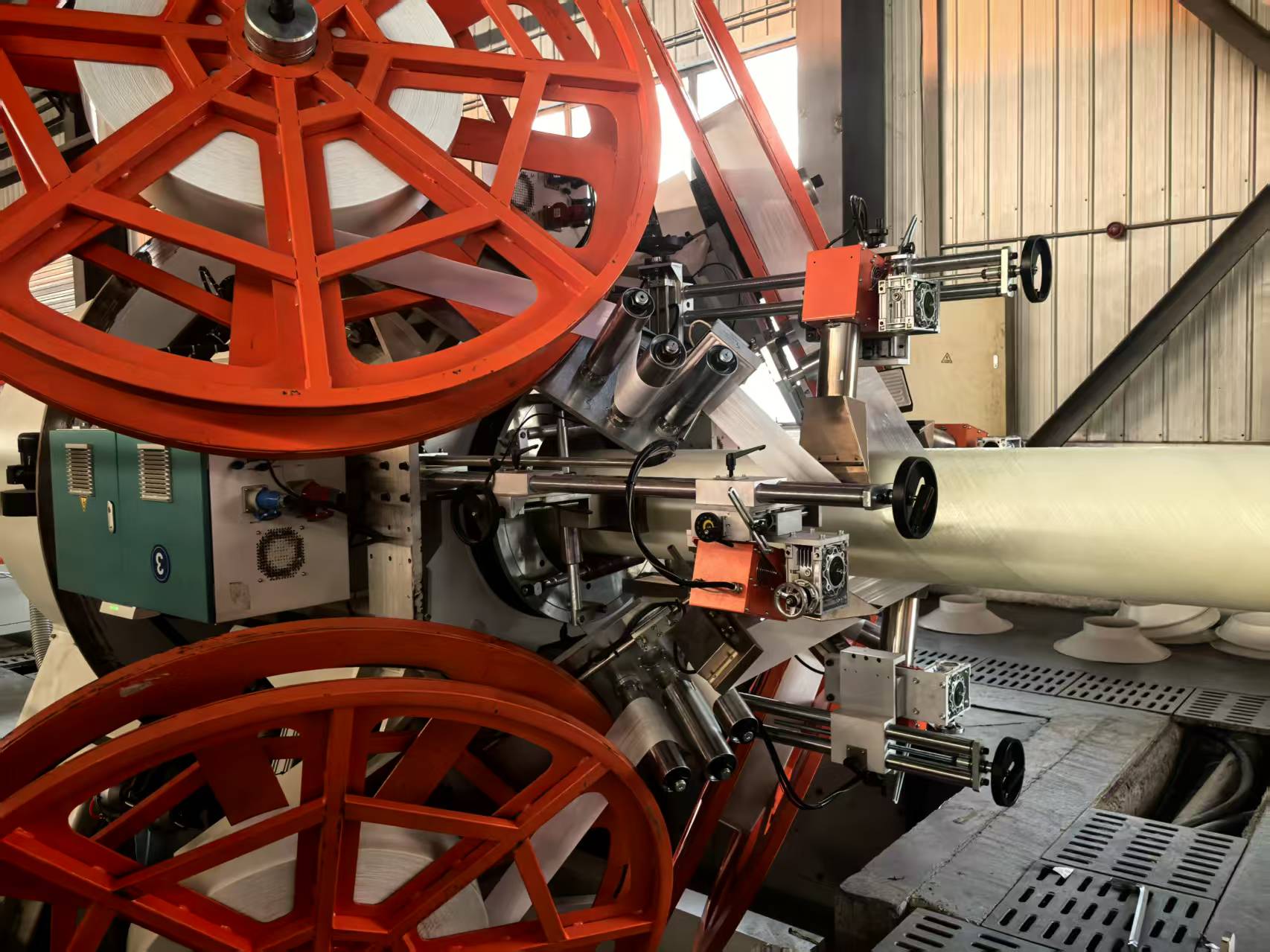

The Fiberglass Tape Winding Production Line is a fully automated manufacturing system engineered specifically for RTP and TCP composite pipes. Designed for continuous, high-speed production, it integrates a precision tension-controlled winding system with a PLC-based intelligent human-machine interface (HMI) for real-time monitoring and control.
At the heart of advanced RTP/TCP production lines lies an advanced, tension-controlled winding system capable of accommodating a full spectrum of reinforcement materials. The system supports:
Fiberglass tape – High stiffness, cost-effective solution for standard oil & gas flowlines
Aramid tape (Kevlar) – Exceptional tensile strength and impact resistance for high-pressure/abrasive slurries
Polyester tape – Chemical resistance and flexibility for municipal water and low-pressure gathering
Steel cord tape & steel wire tape – Ultimate hoop strength and collapse resistance for deep-water offshore and extreme high-pressure injection
This versatility enables manufacturers to produce pipes tailored to specific application requirements without compromising line speed or product integrity.
State-of-the-art fiberglass tape winding equipment employs multi-axis synchronized CNC systems that achieve winding accuracy up to ±0.2 mm. The closed-loop tension control system maintains constant tension from 1 to 100 kg, with programmable winding angles adjustable from 0 to 90 degrees. This precision ensures uniform reinforcement layer thickness, optimal fiber orientation, and consistent mechanical performance across the entire pipe length.
Modern TCP winding machines utilize pre-impregnated unidirectional (UD) tape winding with in-situ consolidation technology. Through hot air heating at the winding point, the system achieves simultaneous winding and fusion without post-curing. This breakthrough eliminates offline curing steps, dramatically improving productivity while ensuring superior interlayer bonding strength.
Parameter | Specification |
|---|---|
Pipe Outer Diameter | 50 – 600 mm |
Reinforcement Thickness | 1.2 – 6 mm |
Max Working Pressure | 30 MPa (300 bar) |
Number of Winding Spindles | 4 / 6 / 8 (optional) |
Winding Angle Range | ±30° ~ ±75° (adjustable) |
Heating Method | Hot air in-situ consolidation with closed-loop temperature control |
Tension Control | Servo motor + load cell, closed-loop automatic adjustment |
Tape Width | 10 – 40 mm |
Line Speed | 0.5 – 4 m/min (depends on diameter and layers) |
For large-bore applications, the Big Dia series delivers unparalleled capability in producing spoolable, high-pressure RTP pipes up to 1,000mm outer diameter.
Parameter | Specification |
|---|---|
Inner Diameter Range | 600 mm – 1,000 mm |
Outer Diameter Range | Up to 1,000 mm |
Control System | Fully automated PLC with real-time tension monitoring |
Reinforcement Types | Fiberglass tape, aramid tape, polyester tape, steel cord tape, steel wire tape |
Material Changeover | Rapid changeover between synthetic and metallic reinforcements |
Winding Control | Precision tension control, placement angle, tape width & gap adjustment |
Parameter | Specification |
|---|---|
Pipe Diameter Range (ID) | 100 – 250 mm (4 – 10 inches) |
Production Speed | 2 – 3 m/min |
Max Working Pressure | 32 MPa (320 bar) |
Production Capacity (DN150mm, 4MPa) | Up to 370 km/year |
Production Capacity (DN200mm, 4MPa) | Up to 300 km/year |
Winding and consolidation occur simultaneously – no offline curing required, greatly improving productivity. The continuous online production methodology spans four key stages: inner pipe extrusion → tape winding reinforcement → outer cladding → cutting and storage.
Automatic winding angle tracking, closed-loop tension control, and PID temperature regulation ensure a uniform, defect-free reinforcement layer. The network structure created between reinforcement layers through tape-to-tape lapping significantly improves interlayer bonding strength and overall pressure resistance.
The fully automated PLC control system with intuitive touch-panel HMI enables centralized monitoring and intelligent adjustment of all operating parameters. Operators can easily configure process parameters, monitor production status, and perform diagnostics, significantly reducing operational complexity and boosting productivity.
The production line can be customized to meet specific project requirements regarding pressure ratings, pipe diameters, and reinforcement material types. By adjusting the number and arrangement of winding units, the system flexibly accommodates working pressures from 2.5MPa to 32MPa – truly achieving "one machine, multiple applications".
Fully thermoplastic material construction means pipes can be recycled at end of life, meeting circular economy requirements. Compared to traditional steel pipes, RTP/TCP pipes are lighter, corrosion-resistant, flexible, and spoolable for easy transport and rapid installation.
Industry | Application |
|---|---|
Oil & Gas | High-pressure onshore gathering lines, offshore flowlines, natural gas transmission |
Mining & Slurry | Abrasion-resistant tailings and concentrate handling |
Water & Wastewater | Large-bore trunk mains, water injection lines, municipal water supply |
Marine & Dredging | Flexible floating and submerged discharge hoses |
Chemical | Corrosive media transfer, acid-base-salt solution transmission |
New Energy | Hydrogen transmission, geothermal pipelines |
The RTP/TCP production line delivers pipes that are corrosion-free, lightweight compared to steel, and fast to install – making it the cornerstone of modern pipeline infrastructure.
Advanced RTP tape winding production lines are designed to produce pipes compliant with international standards including API 15S and API 17J, ensuring compatibility with global oil and gas industry requirements.
The global glass fiber reinforced composite pipe market is estimated at approximately USD 5.0–5.5 billion in 2025, projected to reach USD 7.2–8.1 billion by 2032, with a CAGR of 5.5%–5.7%. The Chinese market continues to grow at an average annual rate of 8.3%, driven by increasing demand in municipal water supply, chemical corrosion protection, and power infrastructure. As the energy and industrial infrastructure sectors continue to expand, the demand for high-performance fiberglass tape winding machines for RTP and TCP composite pipes will remain strong.
Proven Technology – Decades of engineering expertise in precision taping and winding machinery
High Efficiency – Production speeds up to 4 m/min with annual output reaching 480+ km/year
Superior Pipe Quality – Precision tension control ensures uniform hoop strength and collapse resistance
Versatile Material Compatibility – Seamless切换 between fiberglass, aramid, polyester, steel cord, and steel wire reinforcements
Reduced Total Cost of Ownership – Lower maintenance, higher uptime, and recyclable end products
For more information on high-performance fiberglass tape winding machines for RTP and TCP composite pipe production, contact our engineering team for a customized solution tailored to your specific pipe diameter, reinforcement type, and production capacity requirements.
