In the realm of industrial pipeline infrastructure, composite materials are undergoing an unprecedented transformative shift. Composite pipes—particularly Reinforced Thermoplastic Pipes (RTP)—offer significant advantages in addressing critical challenges inherent to conventional materials, including corrosion, weight, and lifecycle cost. However, the widespread adoption of these advanced pipe systems has long been constrained by a key bottleneck: reliable, efficient, and high-quality connection technology.
Composite pipe joint equipment—fully automated end sealing solutions integrating feeding, adsorption, heating, and conveying modules—has emerged as a critical technological breakthrough to address these challenges. This article aims to examine the current state of composite pipe connection technology, analyze key performance advantages, and explore future trends shaping the industry.

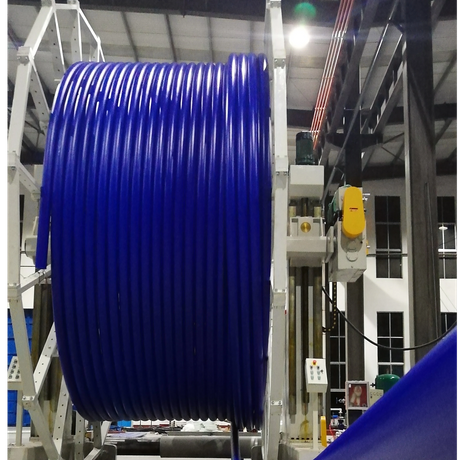

Reinforced Thermoplastic Pipes are designed to combine high working pressure capacity, excellent corrosion resistance, and flexibility similar to HDPE pipes—a combination of properties that enables coiled supply in lengths of hundreds or even thousands of meters. These characteristics make RTP pipes an ideal choice for demanding applications such as oil and gas gathering and transportation, geothermal development, district heating, and chemical medium conveyance.
However, the lag in connection technology has long constrained the large-scale application of composite pipes. In the field of automatic RTP pipe end sealing, conventional mainstream equipment typically adopts a serial operation mode, where sealing materials go through a linear process of blanking, gripping, flipping, positioning, and pressing-heating, resulting in a single-unit cycle time exceeding 12 seconds—becoming a production line efficiency bottleneck. Furthermore, conventional equipment relies on contact heating plates that cause non-uniform temperature distribution in the heating zone, with edge temperature differences exceeding 25°C, leading to differences in seal layer crystallinity and requiring frequent shutdowns to clean residual molten material. The loading of sealing materials primarily depends on manual operations, requiring workers to repeatedly load sealing materials into the sealing area, which prevents continuous material feeding and consumes considerable time and labor.

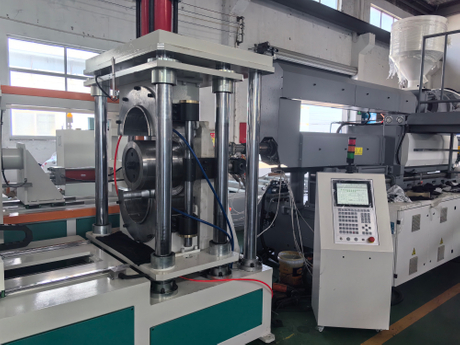

The core innovation of advanced composite pipe joint equipment lies in its ring-storage automatic feeding mechanism. Through the coordinated operation of the feeding assembly—including the first motor, reciprocating screw, and feeding plate—sealing materials inside the discharge rack automatically drop one by one into the placement grooves on the feeding plate, achieving continuous automatic feeding of sealing materials. This design completely transforms the conventional manual re-loading mode, significantly improving operational efficiency.
The adsorption assembly further empowers the feeding process, enabling sealing materials to be automatically flipped into precise alignment with the RTP pipe after adsorption through the coordinated operation of the rotating frame, rotating shaft, second motor, and suction cup. Additionally, the integrated grinding system on the rotating frame—driving a grinding ring via cylinder-operated support rods—ensures that the pipe end achieves optimal mating condition before processing, eliminating fitting gap defects during the joining process.
The uniformity of the temperature field is a critical factor determining end sealing quality. Compared to the quality defects caused by conventional contact plate heating—such as large edge temperature differences and molten residue accumulation—next-generation composite pipe joint equipment introduces a dual-rail sliding table-controlled heating assembly. The sliding table moves precisely along slide grooves opened on the conveying frame, while the heating wires on the bracket uniformly heat the sealing materials and the pipe end, effectively eliminating quality inconsistencies caused by temperature gradients.
This heating system design not only ensures consistency in the crystallinity of the sealing layer but also significantly reduces the accumulation of molten residues, lowering maintenance frequency and downtime. The conveying assembly, driven by an electric rail, achieves automatic clamping and pushing of the pipe, ensuring a smooth transition between the heating process and the subsequent pressing process.
From a quality control perspective, fully automated processes minimize potential failures caused by human operational errors. In conventional processes, welding quality heavily depends on the skill level and consistency of the operator—an uncertainty that poses a major safety risk in long-distance, high-pressure pipeline applications. Through precision mechanical positioning, sensor feedback, and PLC control, next-generation sealing equipment achieves repeatable and traceable quality output in every processing cycle.
In terms of reliability metrics, advanced composite repair and connection systems have improved sealing success rates from 92% in conventional processes to above 99.5%.
Compared to conventional heat shrink or manual lay-up processes, automated composite pipe sealing equipment achieves approximately three times the production efficiency. This is attributed to the innovation of parallel operation processes—the three stages of ring-storage feeding, adsorption flipping positioning, and heating-pressing operate simultaneously, enabling assembly-line continuous production. Single-station equipment is suitable for medium-batch production, while double-station configurations achieve fully parallel processing, significantly increasing output per unit time.
The composite pipe system market is on a strong growth trajectory. According to statistics, the global composite pipe market was valued at approximately USD 1.21 billion in 2025 and is projected to grow to USD 1.77 billion by 2032, with a compound annual growth rate of approximately 5.58% between 2026 and 2032. Other research indicates that the global composite pipe system market was valued at USD 4.495 billion in 2024 and is expected to expand at a CAGR of 5.56% to reach USD 6.646 billion by 2031.
Another data source for the composite pipe manufacturing market shows that the global market was valued at USD 2.70 billion in 2025 and is expected to reach USD 4.48 billion by 2034, representing a CAGR of 5.8%.
The urgent demand for corrosion-resistant, lightweight, low-maintenance pipes in the oil and gas, geothermal, chemical, and municipal water sectors is a key factor driving market growth. In the oil and gas industry, composite pipes have been widely used for transporting hydrocarbons and other fluids. Meanwhile, the large-scale construction of district heating secondary networks, deep geothermal systems, and hot spring water conveyance facilities is also driving demand for high-quality connection equipment.
Technological advancements are also reshaping the development direction of connection equipment. The Non-Metallic Innovation Centre (NIC) is developing a novel connection method for reinforced thermosetting resin (RTR) composite pipes, which has the potential to replace traditional adhesive joints and sealing gaskets, offering a more reliable welding-based solution suitable for high-pressure, large-diameter applications.
Furthermore, the emergence of connection equipment for flexible non-metallic hydrogen transmission pipes marks a step toward energy transition strategies. Through full-process automation integrating pipe cleaning, butt fusion, edge cutting, and composite material winding, next-generation equipment is continuously improving the comprehensive strength of pipe joints.
The refinement of industry standards is an important supporting force driving the standardization and globalization of composite pipe joint equipment. In the field of RTR composite pipe connections, the relevant international standard system is gradually being improved. International organizations such as ASME, API, ASTM, and ISO have established systematic minimum requirements for the design, manufacturing, testing, and inspection of pipes and equipment, forming a technical framework to ensure equipment safety and reliability.
For the Russian and CIS markets, GOST R 56277-2014, titled “Polymer composite pipes and fittings for intrafield pipelines. Specifications,” serves as the national standard providing regulatory basis for the application of polymer composite pipes. Russian patent RU2702771C1 discloses a composite pipe connection structure, improving seal reliability and overall dimensional compactness through a specialized flange ring and clamping device design. In China, the field of bimetallic composite pipes has achieved systematic technological breakthroughs covering four major challenges: forming theory, manufacturing technology, evaluation methods, and welding construction. A complete technology system has been established, spanning from full-pipe uniform deformation control to online bond strength monitoring, along with a series of national and industry standards.
From conventional manual sealing to fully automatic composite pipe joint equipment, the composite pipe industry has undergone a qualitative leap in connection technology. Core advantages such as feeding automation, uniform temperature control, and parallel operation processes have significantly improved the quality consistency and production efficiency of end sealing.
Faced with strong growth expectations for the global composite pipe market (CAGR exceeding 5%), efficient and reliable fully automatic composite pipe joint equipment will play an increasingly important role in the oil and gas, geothermal, chemical, and municipal water sectors. Going forward, the standardization of connection technology, intelligentization of equipment, and global promotion across multilingual markets will be the key variables shaping the industry landscape.
