The demand for steel wire reinforced composite pipe has surged across industries such as oil & gas, municipal water supply, and industrial fluid transport due to its exceptional ability to withstand high pressure while maintaining corrosion resistance and flexibility. At the core of this technology lies specialized steel wire reinforced composite pipe production equipment, a sophisticated assembly of machinery designed to integrate thermoplastics with high-tensile steel wire reinforcement in a continuous, highly controlled process.
A complete composite pipe production line typically integrates the following critical systems:
Extrusion Systems for Inner and Outer Layers
High-output single-screw extruders or co-extruders process HDPE, PVC, or other thermoplastic resins.
Precision tooling ensures uniform wall thickness and a smooth inner bore critical for fluid dynamics.

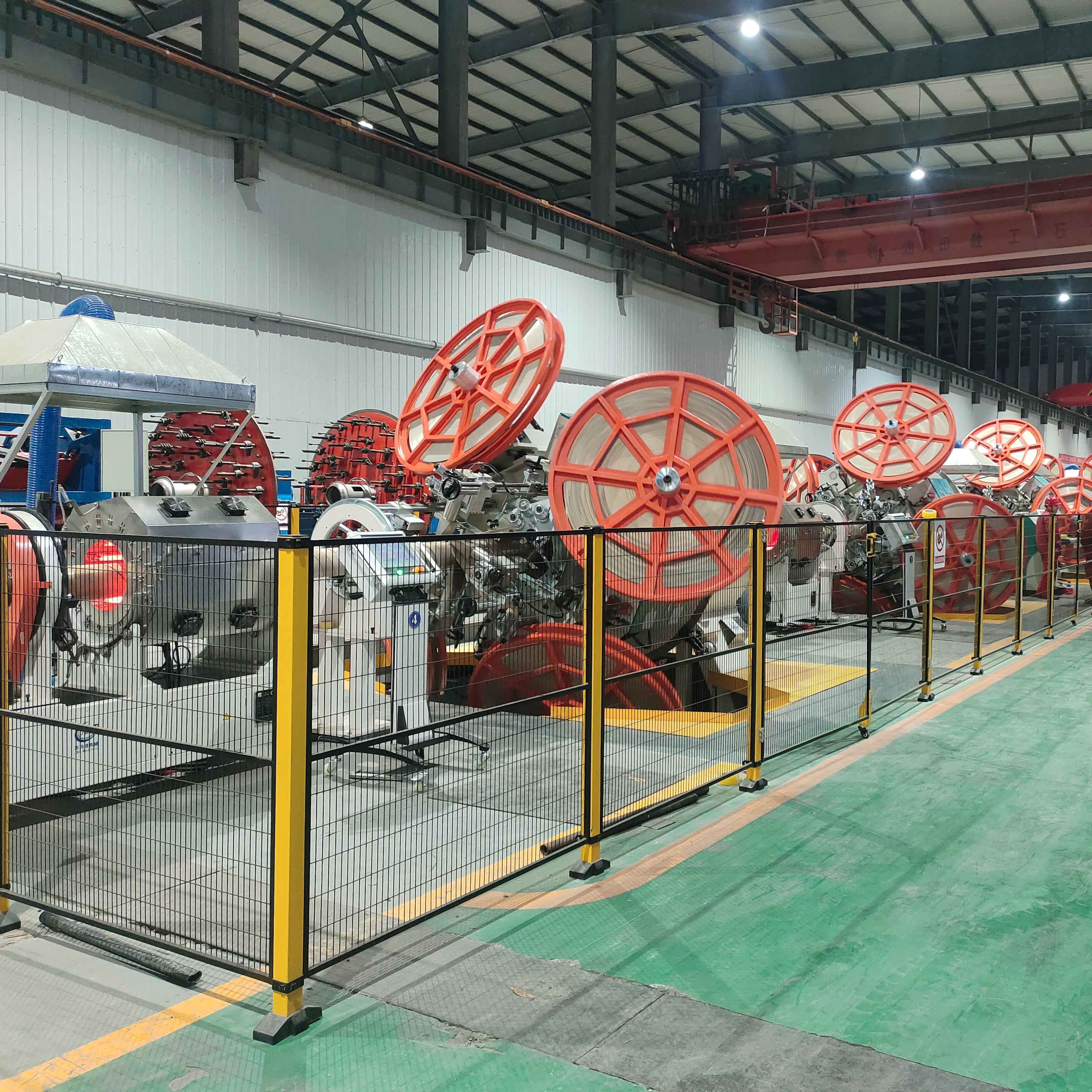

Steel Wire Winding Unit
The core innovation lies in the steel wire winding machine, which applies multiple layers of high-tensile steel wire at precise angles (typically ±54.7° in cross-winding configurations) to optimize hoop stress distribution.
Advanced models feature servo-controlled tension management to ensure uniform reinforcement without compromising the bond between layers.
Bonding and Adhesive Application Stations
Hot-melt adhesive or copolymer bonding layers are applied to chemically and mechanically fuse the steel reinforcement with the inner and outer thermoplastic layers, preventing delamination under pressure cycling.
Cooling and Calibration Tanks
Vacuum calibration and multi-stage spray cooling systems guarantee dimensional stability and roundness, which are essential for fitting compatibility and long-term performance.
Servo-Driven Haul-Off Units
Caterpillar-style haul-offs with servo-controlled gripping provide consistent pulling force, synchronizing the extrusion and winding speeds to maintain reinforcement angle accuracy.
Automated Cutting and Coiling Systems
In-line planetary cutters or traveling saws deliver precise length cuts, while automatic coiling systems package the finished pipe for transport and installation.
Continuous Multi-Layer Winding: Modern equipment utilizes continuous winding technology that eliminates weak points, enabling the production of reinforced thermoplastic pipe (RTP) in continuous lengths up to hundreds of meters.
PLC-Controlled Synchronization: Centralized PLC and HMI systems monitor and adjust parameters such as extrusion output, winding angle, tension, and cooling rates in real time, ensuring repeatability and minimal material waste.
Modular Design: Leading manufacturers offer modular configurations that allow producers to scale from single-layer pipe to complex multi-layer steel-reinforced structures, accommodating diameters ranging from 50 mm to over 800 mm.
| Parameter | Typical Range |
|---|---|
| Pipe Diameter | DN50 – DN800 |
| Steel Wire Diameter | 0.3 mm – 1.2 mm |
| Reinforcement Layers | 1 – 6 layers |
| Pressure Rating | Up to 32 MPa |
| Production Speed | Up to 1-3m/min |
These production systems are engineered to meet rigorous standards, including ISO 4427, API 15S, and ASTM F2785, ensuring suitability for:
High-pressure water injection lines
Oil and gas gathering networks
Industrial chemical transport
Municipal water and sewer rehabilitation
Modern steel wire reinforced pipe production lines increasingly emphasize sustainability:
Energy-efficient drive systems reduce power consumption by up to 25% compared to conventional hydraulic counterparts.
Precision material dosing and closed-loop cooling systems minimize scrap and water usage.
The resulting composite pipes offer a 50+ year service life with lower carbon footprint than traditional steel or concrete alternatives.
As infrastructure projects worldwide demand higher safety margins and longer service life, the market is shifting toward:
Automated tension control systems for enhanced fatigue resistance.
Industry 4.0 integration, enabling predictive maintenance and remote production monitoring.
Multi-material compatibility, allowing processing of next-generation polymers and recycled content without compromising reinforcement integrity.
Investing in high-performance steel wire reinforced composite pipe production equipment enables manufacturers to deliver superior products that combine the flexibility of thermoplastics with the strength of steel. Whether for onshore oil fields or large-scale municipal projects, this technology represents the forefront of high-pressure piping solutions—balancing operational efficiency, durability, and long-term cost-effectiveness.
