The global oil and gas industry is increasingly turning to Reinforced Thermoplastic Pipe (RTP) as a corrosion-resistant, cost-effective alternative to traditional carbon steel pipelines. With the RTP market projected to exceed $11 billion by 2031, the demand for 4-10 inch RTP pipe—the preferred diameter for onshore flow lines, gas gathering, and water injection—is growing rapidly.
Unlike rigid steel, spoolable composite pipe offers continuous lengths up to several kilometers, reducing field joints by over 95% and cutting installation costs by more than 50%. But manufacturing such high-pressure flexible pipe requires precision engineering: from co-extrusion of the liner to multi-layer winding with constant tension control.
This article dives into the production technologies, material science, and quality assurance behind 4-inch to 10-inch RTP designed for extreme pressures (≥10 MPa / 1500 psi) and harsh environments.
A typical 4-10 inch composite pipe consists of three functional layers, each produced in a continuous process:
| Layer | Material | Function |
|---|---|---|
| Inner Liner | HDPE, PE100, PA12, or PVDF | Smooth bore, chemical resistance, permeation barrier for sour gas (H₂S, CO₂) |
| Reinforcement Layer | Aramid fiber, fiberglass, or polyester | Withstands internal pressure (hoop & axial stress) |
| Outer Sheath | HDPE or MDPE | Protects reinforcement from UV, abrasion, and mechanical damage |
For sour service applications involving H₂S or high temperatures (>80°C), PA12 and PVDF liners are essential to prevent blistering and permeation.
Modern RTP production lines use a continuous forming process (also known as the "one-step method") to bond all layers in a single operation, ensuring superior interlayer adhesion and eliminating weak points.
The process begins with extrusion of the inner thermoplastic liner. For 4-10 inch diameters, the liner must maintain precise wall thickness and ovality to ensure uniform reinforcement winding. Advanced lines use laser measurement systems for real‑time gauge control.

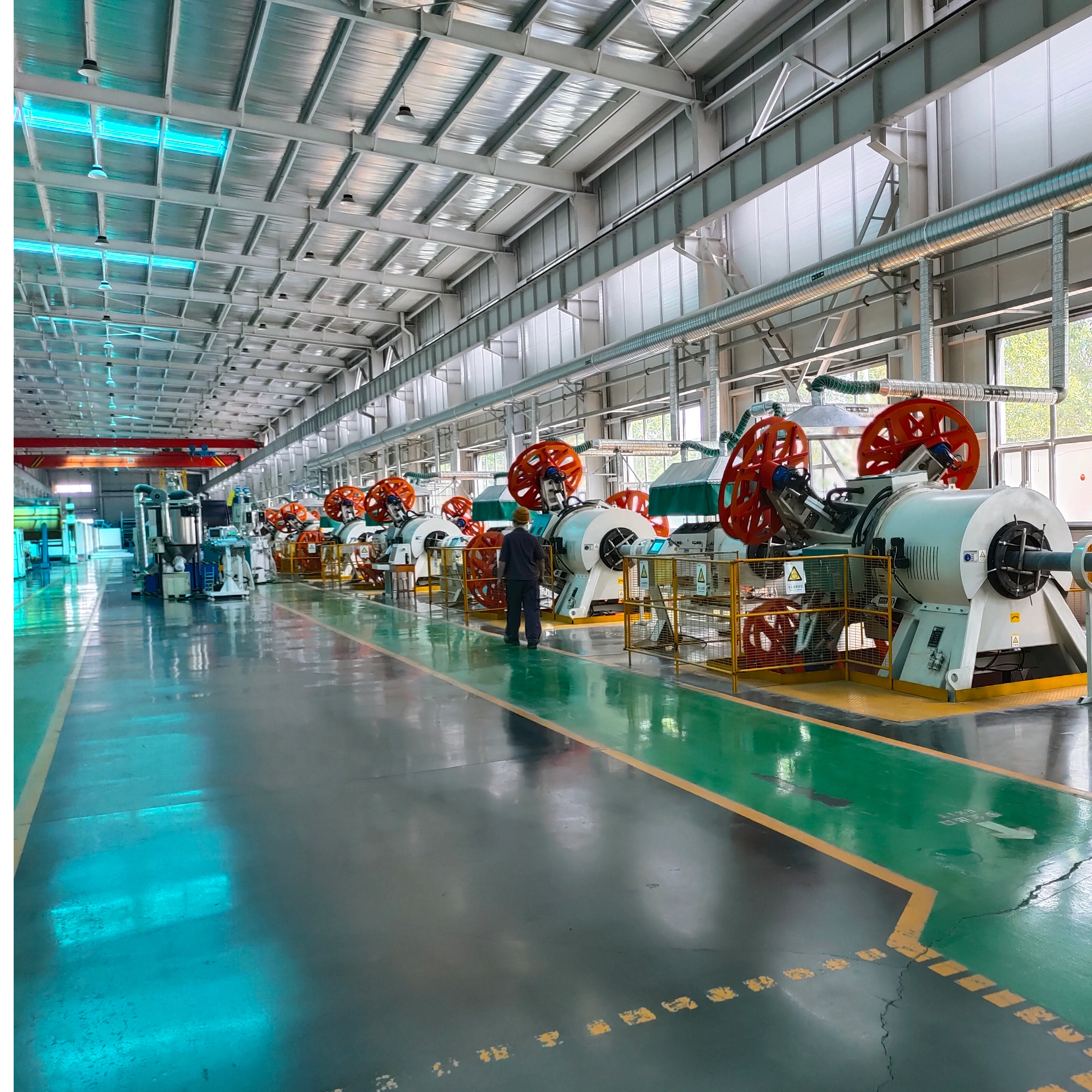

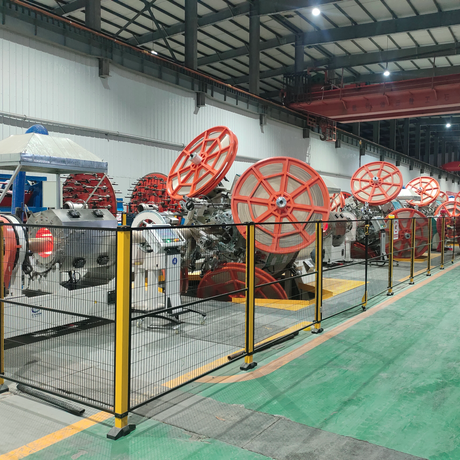

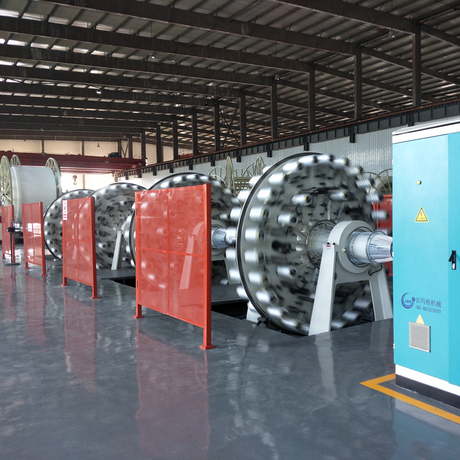

As the liner exits the extruder, it passes through a winding station where reinforcement tapes (aramid, glass, or hybrid) are applied at optimized angles (typically ±55°). This is where precision tension control becomes critical:
Servo-controlled tensioners maintain constant force on each tape, preventing fiber buckling or slack.
Multi-layer winding (up to 4 layers) can be configured to achieve pressure ratings up to 32 MPa (4640 psi).
For 10-inch RTP, winding heads must accommodate wider tapes and higher lay‑up speeds without sacrificing accuracy.
Immediately after winding, the reinforced core passes through a second extruder where the outer HDPE sheath is applied. The molten polymer encapsulates the reinforcement, creating a monolithic structure. This in‑situ bonding eliminates the need for separate adhesive layers and improves long-term durability.
Finally, the continuous pipe is cooled, gauged, and pulled by a caterpillar haul-off before being spooled onto large reels. For 6-inch and 8-inch RTP, the pipe remains flexible enough for spoolable transport, a key logistical advantage over steel.
The choice of materials determines the pipe's pressure rating, temperature range, and chemical compatibility. Below are common material combinations used in 4-10 inch RTP production:
| Liner Material | Max Temp | Application |
|---|---|---|
| HDPE (PE100) | 60°C | Standard water injection, produced water |
| PA12 (Polyamide) | 90°C | Oil & gas flow lines with hydrocarbons |
| PVDF | 120°C | High-temperature sour service, chemical injection |
Reinforcement fibers are selected based on cost and performance:
Aramid fiber offers the highest strength‑to‑weight ratio and flexibility.
Fiberglass provides a cost-effective solution for moderate pressures.
Polyester is used in low-pressure applications or as a protective layer.
For hydrogen transport and CCUS (CO₂ transport) applications, RTP with PA liner and aramid reinforcement is emerging as a viable alternative to steel, offering zero corrosion and reduced maintenance.
Steel pipelines require expensive corrosion inhibitors and cathodic protection. RTP composite pipe is inherently immune to electrochemical corrosion, making it ideal for sour gas gathering and high-salinity water injection. Operators report lifecycle cost savings of 25–50% compared to carbon steel.
A single 4-inch RTP reel can contain up to 1,000 meters of continuous pipe. In remote onshore locations, this dramatically reduces welding, coating, and right‑of‑way work. Installation speeds of 2–3 km per day are achievable with small crews.
RTP can be bent to a radius of ≤ 5‑10 × OD, allowing it to follow terrain contours and accommodate ground movement—a critical advantage in seismic areas or permafrost regions.
By eliminating flaring during installation and reducing the carbon footprint of maintenance, RTP supports zero‑flaring initiatives and contributes to lower greenhouse gas emissions.
Manufacturers of high-pressure RTP adhere to international standards such as API 15S and ISO 18226. Key tests include:
Hydrostatic pressure testing at 1.5× design pressure
Short-term burst tests to verify reinforcement strength
Permeation tests for H₂S and CO₂ barriers
Long-term creep rupture tests to predict 20‑year service life
Advanced production lines integrate in‑line non‑destructive testing (e.g., ultrasonic wall thickness measurement) to detect defects before the pipe is coiled.
As the energy transition accelerates, RTP pipe is gaining traction in new markets:
Hydrogen transport: RTP with PA liner and aramid reinforcement can safely handle gaseous hydrogen without embrittlement.
CO₂ transport for carbon capture: PVDF‑lined RTP resists the acidic environment of supercritical CO₂.
Geothermal fluids: High-temperature RTP variants (up to 120°C) are being deployed in geothermal projects.
Q: What is the maximum pressure for 4-inch RTP?
A: Depending on the reinforcement design, 4-inch RTP can be rated from 10 MPa (1500 psi) up to 32 MPa (4640 psi).
Q: Can 10-inch RTP be coiled for transport?
A: Yes. While larger diameters require larger reels, 10-inch RTP remains spoolable, enabling continuous lengths up to 500 meters.
Q: How does RTP compare to steel in terms of installation cost?
A: Field studies show that RTP reduces total installed cost by 30–50% due to faster laying, fewer joints, and no need for welding or corrosion coating.
Q: Is RTP suitable for H₂S service?
A: Yes. With a PA or PVDF liner, RTP is fully resistant to sulfide stress cracking and can be used in sour gas applications per NACE MR0175.
Q: What is the typical lead time for a 4-10 inch RTP production line?
A: Modern continuous RTP production lines can be delivered and commissioned within 9–12 months, depending on customization.
The production of 4-10 inch RTP pipe represents the convergence of advanced polymer extrusion, precision composite winding, and rigorous quality control. As oil and gas operators seek to reduce CAPEX, OPEX, and environmental footprint, flexible composite pipe offers a proven, reliable solution for high-pressure flow lines, gas gathering, and emerging energy transport needs.
Whether you are specifying pipe for a new onshore development or upgrading aging steel infrastructure, understanding the manufacturing process behind RTP ensures you select a product that delivers safety, longevity, and economic value.
